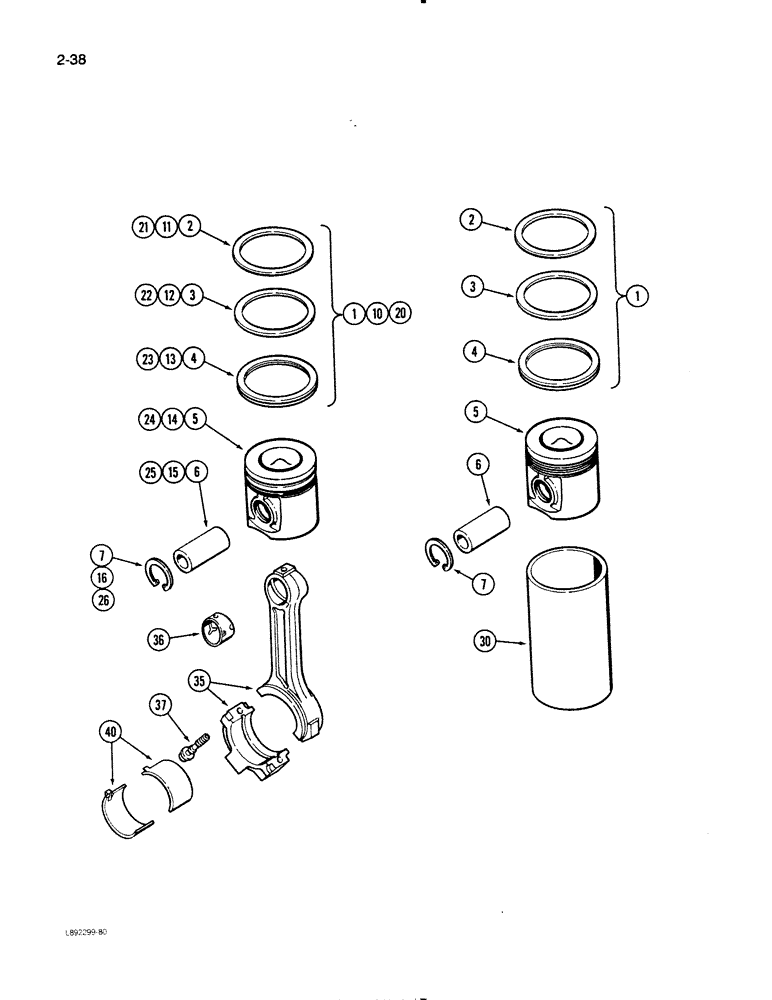

Запчасти Case W11B (2-038) - PISTONS, 4T-390 ENGINE, CONNECTING RODS (02) - ENGINE

A77419

PISTON

KIT - engine (Standard), Includes: Ref. 1 - 7

4шт.

1

A77500

PISTON RING SET

RING KIT - piston (Standard), Includes: Ref. 2 - 4

1шт.

2

NSS

NOT SOLD SEPARAT

RING - compression (Top)

1шт.

3

NSS

NOT SOLD SEPARAT

RING - compression (Middle)

1шт.

4

NSS

NOT SOLD SEPARAT

RING - oil (Bottom)

1шт.

5

NSS

NOT SOLD SEPARAT

PISTON - engine (Standard) (Stamped 7163)

1шт.

Ref. 5A Use (J907163) Sombrero bowl

1шт.

6

J901793

PISTON PIN

PIN - piston

1шт.

7

J901706

RING

- retainer, pin

2шт.

A77638

PISTON

KIT - engine (0.5 mm oversize) (Replaces A77498), Includes: Ref. 10 - 16

4шт.

10

A77501

PISTON RING SET

RING KIT - engine (0.5 mm oversize), Includes: Ref. 11 - 13

1шт.

11

NSS

NOT SOLD SEPARAT

RING - compression (Top)

1шт.

12

NSS

NOT SOLD SEPARAT

RING - compression (Middle)

1шт.

13

NSS

NOT SOLD SEPARAT

RING - oil (Bottom)

1шт.

14

NSS

NOT SOLD SEPARAT

PISTON - engine (0.5 mm oversize) (Stamped 8815)

1шт.

Ref. 14A Use (J908815) Sombrero bowl

1шт.

15

J901793

PISTON PIN

PIN - piston

1шт.

16

J901706

RING

- retainer, pin

2шт.

A77637

PISTON

KIT - engine (1.0 mm oversize) (Replaces A77499), Includes: Ref. 20 - 26

4шт.

20

A77502

PISTON RING SET

RING KIT - engine (1.0 mm oversize), Includes: Ref. 21 - 23

1шт.

21

NSS

NOT SOLD SEPARAT

RING - compression (Top)

1шт.

22

NSS

NOT SOLD SEPARAT

RING - compression (Middle)

1шт.

23

NSS

NOT SOLD SEPARAT

RING - oil (Bottom)

1шт.

24

NSS

NOT SOLD SEPARAT

PISTON - engine (1.0 mm oversize) (Stamped 8816)

1шт.

Ref. 24A Use (J908816) Sombrero bowl

1шт.

25

J901793

PISTON PIN

PIN - piston

1шт.

26

J901706

RING

- retainer, pin

2шт.

30

J904166

SLEEVE

LINER - piston (Used only in engine block repair) (When liner is installed, use only A77419 Piston Kit)

1шт.

JR901569

ROD

ASSEMBLY - connecting, remanufactured (North America only), Includes: Ref. 36 and 37

1шт.

JC901569

CORE-ROD CONNECTING

RETURN NUMBER - use this part number to return connecting rod for credit, Includes: Ref. 36 and 37

1шт.

35

J901569

ROD, CONNECTING

ROD ASSEMBLY - connecting, new, Includes: Ref. 36 and 37

4шт.

84145405R

REMAN-CONNECTING ROD

W11B, Reman For New P/N J901569

4шт.

84145405C

CORE-ROD CONNECTING

Return Number

1шт.

36

NSS

NOT SOLD SEPARAT

BUSHING - rod to piston pin (Order J901569), connecting rods

1шт.

37

J900919

BOLT,Flng, MJ11 x 1.25 x 59mm, Cl 12.9

BOLT - hex special, 11 mm - 1.25 x 59 mm, connecting rods

2шт.

40

A77465

BEARING SET

BEARING KIT - connecting rod (set, upper and lower, standard), connecting rods

4шт.

40

A77466

BEARING SET

BEARING KIT - connecting rod (set, upper and lower, 0.25 mm undersize), connecting rods

4шт.

40

A77467

BEARING LINER

BEARING KIT - connecting rod (set, upper and lower, 0.5 mm undersize, connecting rods

4шт.

40

A77468

BEARING SET

BEARING KIT - connecting rod (set, upper and lower, 0.76 mm undersize), connecting rods

4шт.

40

A77469

BEARING SET

BEARING KIT - connecting rod (set, upper and lower, 1.0 mm undersize), connecting rods

4шт.
