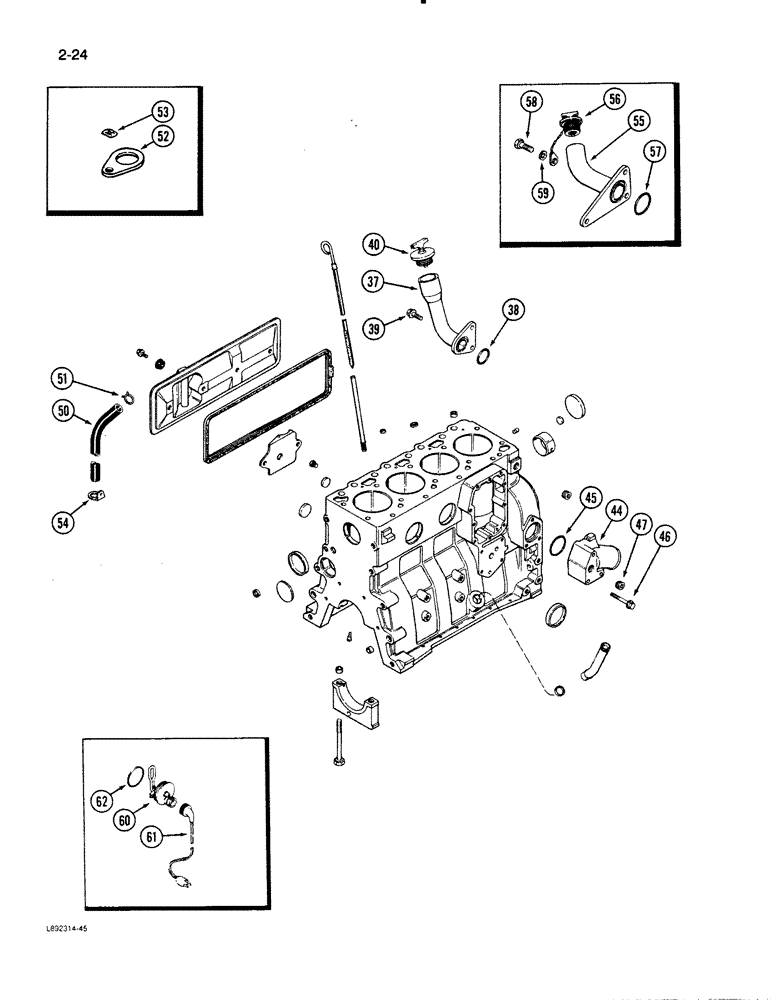

Запчасти Case W11B (2-024) - CYLINDER BLOCK, 4-390 ENGINE, ENGINE BLOCK HEATER (02) - ENGINE

37

J905440

TUBE

- oil fill

1шт.

38

J906696

SEAL,41mm ID x 43mm OD x 2.5mm H

O-RING - sealing, 38 mm ID

1шт.

39

J901249

FLANGE BOLT,Hvy Hex, M12 x 25mm, Cl 10.9

BOLT - hex flange, 12 mm - 1.75 x 25mm

2шт.

40

A77424

FILLER CAP

CAP ASSEMBLY - fill, oil

1шт.

44

J903102

CONNECTION

- water inlet

1шт.

45

J906697

SEAL,Square, 5.16mm Thk x 50.17mm ID

O-RING - sealing, 50 mm ID

1шт.

46

J901757

FLANGE BOLT,Hex, M10 x 75mm, Cl 10.9

BOLT - hex flange head, 10 mm - 1.50 x 75 mm

3шт.

47

A77429

PLUG

- hex socket pipe, 1/2 inch PT

2шт.

50

J906593

HOSE

Breather

1шт.

51

J904230

CLAMP,25.4mm

- spring, hose

1шт.

52

J904231

CLIP

- hose (If equipped)

1шт.

53

J905479

SPRING NUT

- spring, hose clip (If equipped)

1шт.

54

J909670

CLIP

- retaining

1шт.

55

L112785

TUBE,5.69, 1.4" L

- oil fill (If equipped)

1шт.

56

L61111

PLUG

CAP - oil fill tube (If equipped)

1шт.

57

S98707

O-RING,1.739" ID x 1.879" OD x 0.07"

- sealing, 44 mm ID (If equipped)

1шт.

58

814-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 8.8, Full Thd

- hex, 12 mm - 30 mm (If equipped)

3шт.

59

892-11012

LOCK WASHER,M12

WASHER, LOCK, (If Equipped) M12

3шт.

A77634

KIT

HEATER KIT - engine block, Includes: Ref. 60 and 61

1шт.

60

NSS

NOT SOLD SEPARAT

ELEMENT - engine heater, 12 volt, engine block heater

1шт.

61

J905113

CABLE

- engine block heater

1шт.

62

J910517

O-RING

- heater sealing, engine block heater

1шт.
