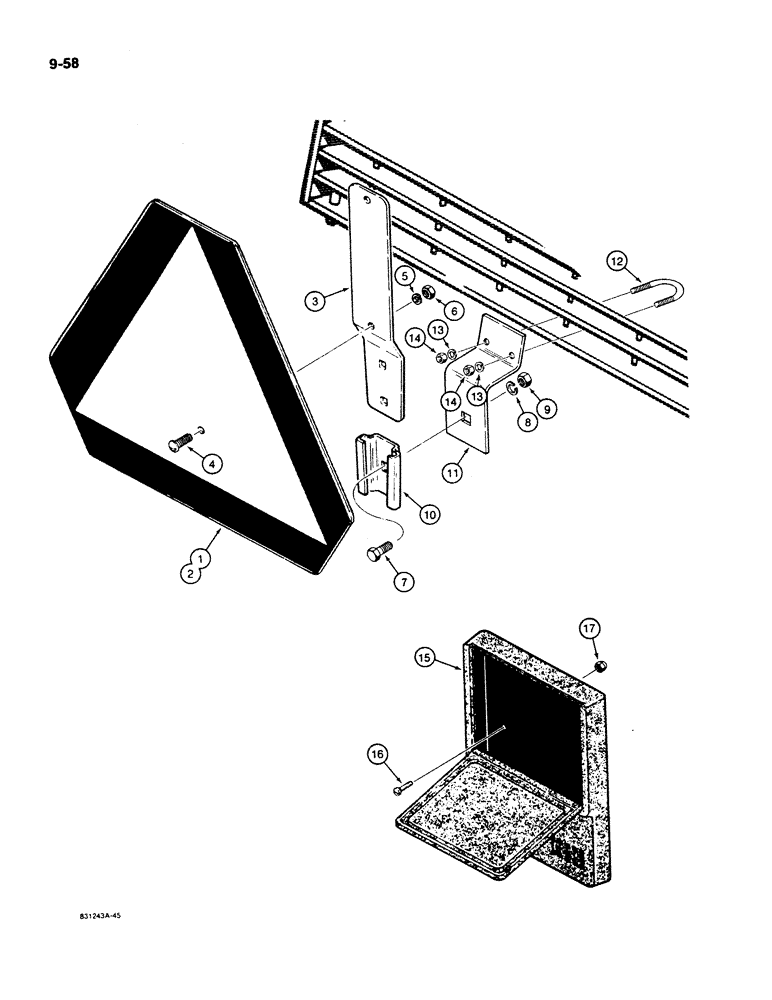

Запчасти Case W11B (9-058) - SLOW MOVING VEHICLE EMBLEM, OPERATORS MANUAL BOX (09) - CHASSIS/ATTACHMENTS

A59450

WARNING SIGN

EMBLEM ASSEMBLY - slow moving vehicle, plate and decal, Includes: Ref. 1 - 3

1шт.

1

321-4311

DECAL

- SMV emblem

1шт.

2

NSS

NOT SOLD SEPARAT

PLATE - SMV emblem

1шт.

3

NSS

NOT SOLD SEPARAT

PLATE - mounting, emblem

1шт.

4

182-516

SCREW,Sl Pan Hd, #10 - 24 x 1/2"

MACHINE SCREW - pan head, No. 10 - 24 NC x 1/2", if used

2шт.

5

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

2шт.

6

129-17

NUT,Hex, #10 - 24

NUT - hex, No. 10-24

2шт.

7

12-716

CARRIAGE BOLT - 7/16" - 14 NC x 1"

1шт.

8

192-22

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

1шт.

9

129-104

NUT,7/16"-14, G5

1шт.

10

A60977

BRACKET

SOCKET - plate

1шт.

11

L78242

BRACKET

- socket

1шт.

12

L42674

HARDWARE

U-BOLT - 1/4" - 20 NC

1шт.

13

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

14

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

2шт.

15

A141933

BOX

- operator's manual

1шт.

16

182-202

SCREW,Sl Pan Hd, 1/4" - 20 x 1/2"

- slotted, 1/4" - 20 NC x 1/2", operators manual box

3шт.

17

129-501

NUT,Crown, 1/4"-20

- dome, 1/4" - 20 NC, used on models with canopy, operators manual box

3шт.
