Запчасти Case W11B (9-056) - DECALS (09) - CHASSIS/ATTACHMENTS

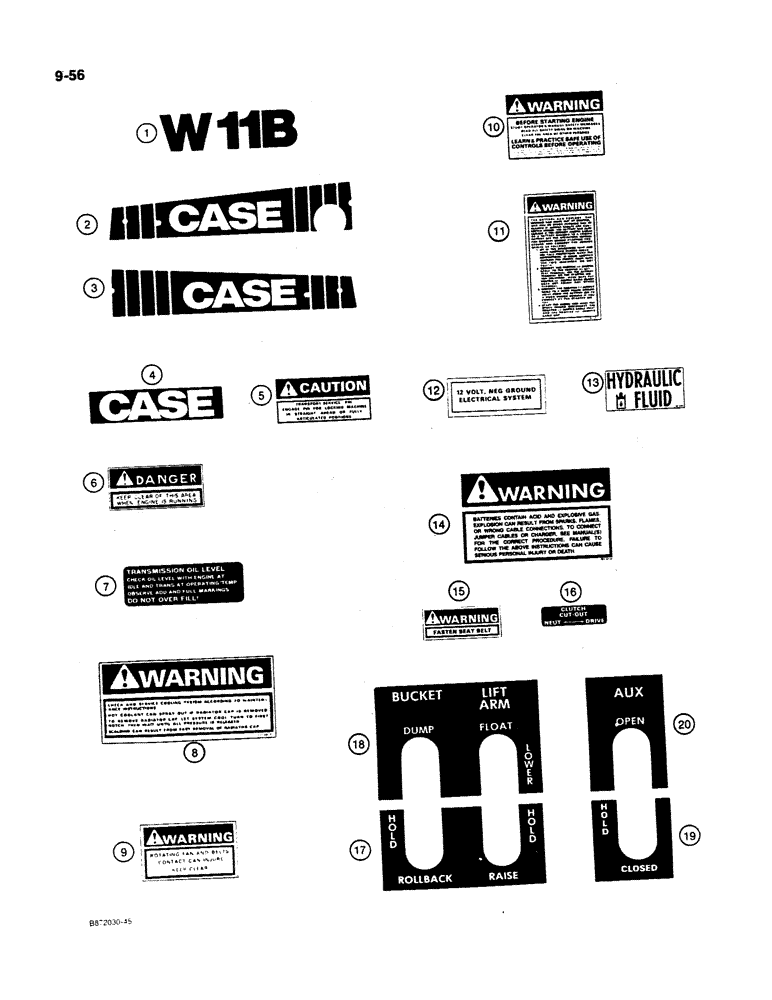

Схема запчастей Case W11B - (9-056) - DECALS (09) - CHASSIS/ATTACHMENTS

Артикул

Название

Примечание

Количество

L36311

KIT

- decal, used, Includes: Ref. 1 - 20, Start Serial: 9164337

1шт.

DECAL KIT IS A CLARK KIT

1шт.

1

L111955

DECAL

- W11B, radiator shroud, 3-1/2" (90 mm)

2шт.

1

L112010

DECAL

- W11B, cab or canopy models, 6" (150 mm)

1шт.

2

L118250

DECAL

- Case, right-hand hood

1шт.

3

L118249

DECAL

- Case, left-hand hood

1шт.

L118249 IS AFTER SN AND IS 1385 MM LONG AND 290 MM AT FULL END AND 187 MM AT TAPERED END/ L113095 IS FOR PRIOR SN AND MEASURES OVERALL LENGTH IS 1477 -HEIGHT IS 290 MM AT LARGE END AND 194 MM AT TAPERED END -BOTH ARE BROWN IN COLOR

1шт.

4

R48489

DECAL

- Case, rear chassis

1шт.

5

321-3927

DECAL

- transport/service pin

1шт.

6

321-3205

DECAL

- Danger, rear chassis

2шт.

7

321-1980

DECAL

- Transmission oil level

1шт.

8

321-6672

DECAL

- Warning, check and service cooling system

1шт.

9

321-3596

DECAL

- Warning, rotating fan and belts

2шт.

10

321-3705

DECAL

- Warning, before starting engine

1шт.

11

321-6718

DECAL

- Warning, engine can start with transmission in gear

1шт.

12

321-5831

DECAL

- 12 volt electrical system

1шт.

13

321-6376

DECAL

- Hydraulic fluid

1шт.

14

321-6714

DECAL

- battery booster cable

1шт.

15

321-3060

DECAL

- Warning, seat belt

1шт.

16

L113942

DECAL

- clutch cutout

1шт.

17

L111482

DECAL

- hydraulic control lever, 2 spool

1шт.

18

L111483

DECAL

- hydraulic control lever, 2 spool

1шт.

19

L111477

DECAL

- hydraulic control lever, 3 spool

1шт.

20

L111481

DECAL

- hydraulic control lever, 3 spool

1шт.

Выбрано товаров: 24
