Запчасти Case W11B (9-054) - DECALS (09) - CHASSIS/ATTACHMENTS

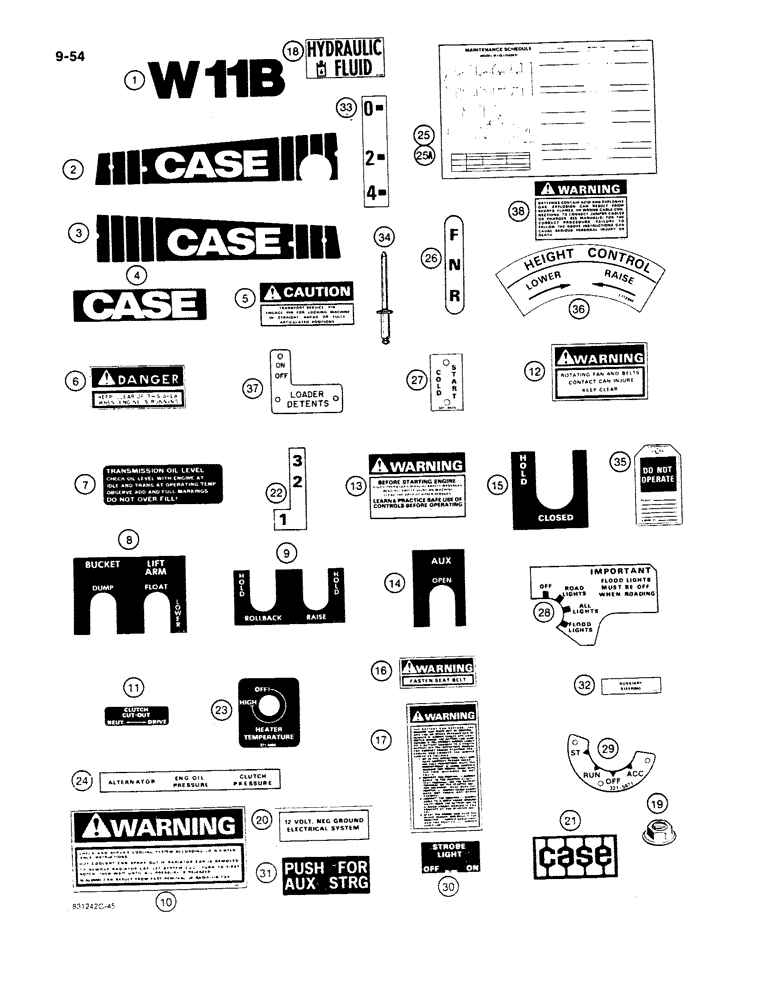

Схема запчастей Case W11B - (9-054) - DECALS (09) - CHASSIS/ATTACHMENTS

Артикул

Название

Примечание

Количество

L36251

KIT

- decal, Funk, used, Includes: Ref. 1 - 20 to 9164337

1шт.

1

L111955

DECAL

- W11B, radiator shroud, 3-1/2" (90 mm)

1шт.

1

L112010

DECAL

- W11B, cab or canopy models, 6" (150 mm)

2шт.

2

L113096

DECAL

- Case, right-hand hood

1шт.

3

L113095

DECAL

- Case, left-hand hood

1шт.

4

R48489

DECAL

- Case, rear chassis

1шт.

5

321-3927

DECAL

- transport/service pin

1шт.

6

321-3205

DECAL

- Danger, rear chassis

2шт.

7

321-1980

DECAL

- Transmission oil level

1шт.

8

L111483

DECAL

- loader controls, front

1шт.

9

L111482

DECAL

- loader controls, rear

1шт.

10

321-6672

DECAL

- Warning, check and service cooling system

1шт.

11

L113942

DECAL

- Clutch, Cut-Out

1шт.

12

321-3596

DECAL

- Warning, rotating fan and belts

2шт.

13

321-3705

DECAL

- Warning, before starting engine

1шт.

14

L111481

DECAL

- auxiliary hydraulic control lever, front

1шт.

15

L111477

DECAL

- auxiliary hydraulic control lever, rear

1шт.

16

321-3060

DECAL

- Warning, fasten seat belt

1шт.

17

321-6718

DECAL

- Warning, engine can start with transmission in gear

1шт.

18

321-6376

DECAL

- Hydraulic fluid

1шт.

19

131-431

PUSH-ON NUT,Self, Threading, 1/4"

NUT - emblem retaining

2шт.

20

321-5831

DECAL

- 12 volt electrical system

1шт.

21

321-4739

EMBLEM

MEDALLION - Case

1шт.

22

321-5874

DECAL

PLATE - transmission range control

1шт.

23

L111478

DECAL

- Heater temperature

1шт.

24

321-5875

DECAL

PLATE - engine warning lights

1шт.

25

L112183

INSTRUCTION

PLATE - Maintenance schedule, Funk, used, Serial Range: -9164337

1шт.

25a

L118570

LARGE PLATE

PLATE - Maintenance schedule, Clark, used, Start Serial: 9164337

1шт.

26

321-5872

DECAL

PLATE - transmission direction control

1шт.

27

321-4425

DECAL

PLATE - Cold start

1шт.

28

321-5873

DECAL

PLATE - light switch

1шт.

29

321-5871

DECAL

PLATE - key switch

1шт.

30

321-4922

DECAL

- strobe light switch

1шт.

31

321-4952

DECAL

- Push for auxiliary steering

1шт.

32

321-5009

DECAL

- Auxiliary steering

1шт.

33

321-1708

DECAL

- indicator clam bucket position

1шт.

34

151-525

RIVET,Pop, 1/8" x .275"

POP RIVET - decal plate attaching

20шт.

35

321-4614

TAG

- Do not operate

1шт.

36

L112444

DECAL

- height control

1шт.

37

L117827

PLATE

- loader detents

1шт.

38

321-6714

DECAL

- battery booster cable

1шт.

Выбрано товаров: 41
