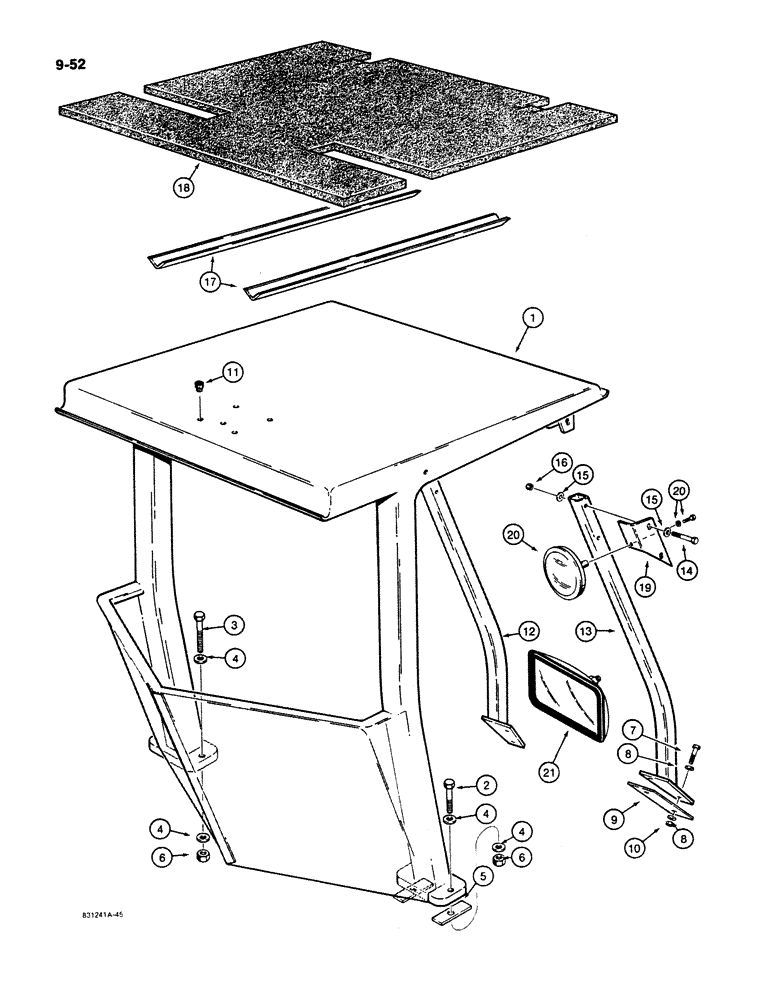

Запчасти Case W11B (9-052) - ROPS CANOPY (09) - CHASSIS/ATTACHMENTS

1

REF

INSTRUCTION

ROLL OVER PROTECTIVE STRUCTURE - operators, machinery item, order from machinery price list

1шт.

REF: 1A ROPS MAY BE ORDERED UNDER PART NUMBER L100500.

1шт.

2

26-1256

BOLT,Hex, 3/4" - 10 x 3-1/2", Gr 8

- hex head, 3/4" - 10 NC x 3-1/2", grade 8

2шт.

3

26-1280

BOLT,Hex, 3/4" - 10 x 5", Gr 8

- hex head, 3/4" - 10 NC x 5, grade 8

2шт.

4

L79179

WASHER

- flat, hardened

8шт.

5

L100569

PAD

INSULATOR - rubber, rear

4шт.

6

131-16

LOCK NUT,3/4"-10, GB

LOCKNUT, 3/4"-10, GB

4шт.

7

26-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 8

- hex head, 1/2" - 13 NC x 1-3/4"

4шт.

8

R24718

WASHER

- special

8шт.

9

L100567

PAD

INSULATOR - rubber, front

2шт.

10

131-473

HARDWARE

NUT - hex, self-locking, 1/2" - 13 NC

4шт.

11

L60224

BUMPER

PLUG - if used

5шт.

12

L77808

POST

- left-hand

1шт.

13

L77807

POST

- right-hand

1шт.

14

113-427

BOLT,Hex, 1/2" - 13 x 3-1/4", Gr 5

4шт.

15

R24718

WASHER

- special

8шт.

16

131-473

HARDWARE

NUT - hex, self-locking, 1/2" - 13 NC

4шт.

17

L100510

RETAINER

- headliner pad

2шт.

18

L112233

ROOF

PAD - headliner

1шт.

19

L100949

BRACKET

- mirror

1шт.

20

L110136

MIRROR

- round, includes mounting screw, if used

1шт.

21

L74714

MIRROR

- rectangular, includes mounting hardware, if used

1шт.
