Запчасти Case W11B (9-050) - CAB BLOWER AND FILTER (09) - CHASSIS/ATTACHMENTS

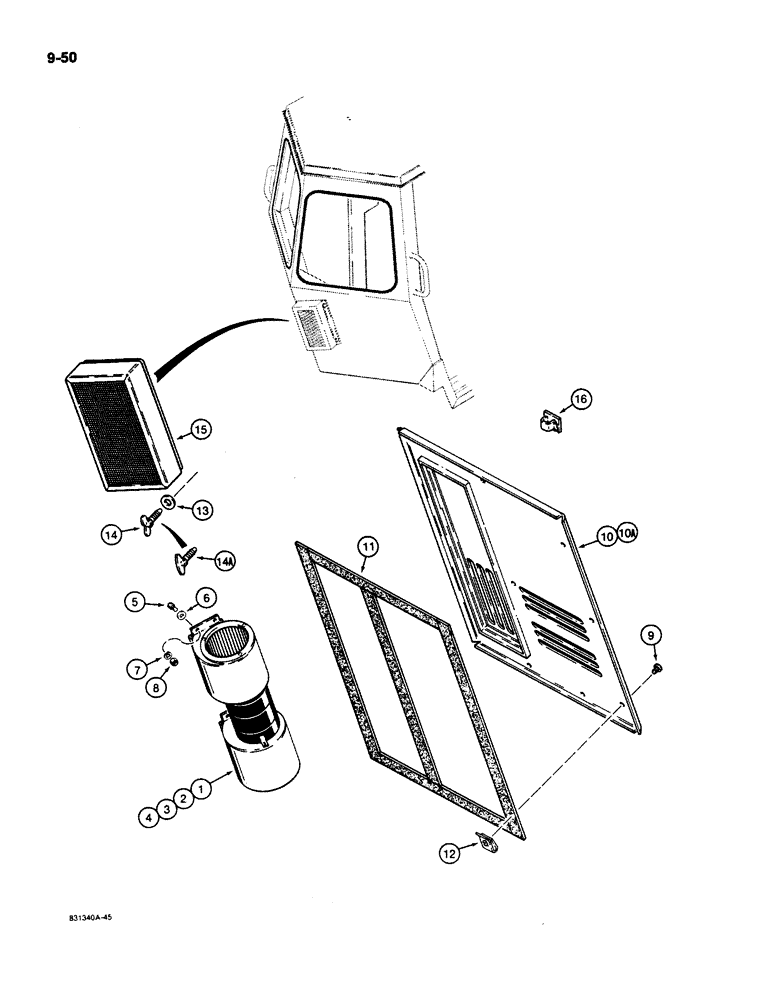

Схема запчастей Case W11B - (9-050) - CAB BLOWER AND FILTER (09) - CHASSIS/ATTACHMENTS

Артикул

Название

Примечание

Количество

1

D80657

BLOWER

ASSEMBLY - cab, Hupp Mfg., no longer available, order Ref. 17 below, Includes: Ref. 2 - 4

1шт.

2

N7389

MOTOR, ELECTRIC

MOTOR - blower assembly, not shown separately

1шт.

3

N7390

RESISTOR

- blower motor, not shown separately

1шт.

4

D72761

FAN

WHEEL - fan, blower assembly, not shown separately

2шт.

5

182-547

SCREW,Cross Pan Hd, 1/4"-20 x 1/2"

MACHINE SCREW - pan head slotted, 1/4" - 20 NC x 1/2"

8шт.

6

195-108

WASHER,5/8"

- flat, 5/16 x 3/4 x 1/16 inch

8шт.

7

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

8шт.

8

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

8шт.

9

182-547

SCREW,Cross Pan Hd, 1/4"-20 x 1/2"

MACHINE SCREW - pan head slotted, 1/4" - 20 NC x 1/2"

10шт.

10

D80661

COVER

- blower, used on Orrville cab with rotary type door handle

1шт.

10a

S300958

COVER

- blower, used on Sims cab with push button type door handle, not shown

1шт.

11

REF

INSTRUCTION

FOAM - 8 ft. (2.4 m) long, cut from D70611, see below

1шт.

12

131-646

SPRING NUT,Tinn, U, 1/4"-20

- U-type

10шт.

13

D80651

RETAINER

- ring, used on Orrville cab with rotary type door handle

2шт.

14

D80652

FASTENER

SCREW - ring, used on Orrville cab with rotary type door handle

2шт.

14a

S300952

FASTENER

RETAINER - air filter to cab, 1/4 turn type, used on Sims cab with push button type door handle

2шт.

15

D80648

FILTER

- air

1шт.

THE COVER WELDMENT ON SIDE OF CAB FOR THAT ITEM 15 FILTER GOES IN IS S301748.

1шт.

16

L100659

CLIP

- blower wire

1шт.

17

N9710

BLOWER ASSY.

BLOWER ASSEMBLY - cab, SGM Mfg., not shown, Includes: Ref. 18 - 20

1шт.

18

A176906

MOTOR

- blower assembly, not shown

1шт.

REF: 18A MOTOR IS 12 VOLT, 4 WIRES (3 SPEED)

1шт.

19

A179911

HOUSING

WHEEL - blower motor, clockwise, not shown

1шт.

REF: 19A A176911 IS CORRECT WHEEL # PER T/S # 005-91

1шт.

20

A179912

COVER

WHEEL - blower motor, counterclockwise, not shown

2шт.

REF: 20A A176912 IS CORRECT WHEEL # PER T/S # 005-91

1шт.

D70611

RUBBER JOINT

FOAM - bulk, 50 ft. (15.2 m) long

1шт.

Выбрано товаров: 27
