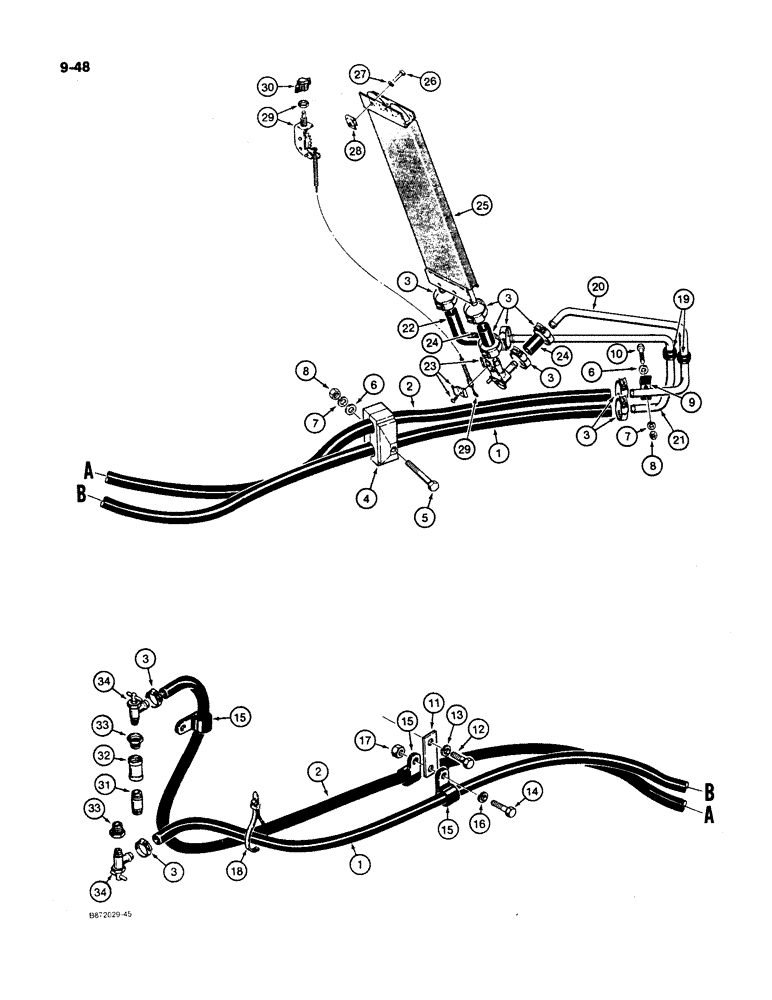

Запчасти Case W11B (9-048) - CAB HEATER, HOSES, AND MOUNTING, P.I.N. 9164337 AND AFTER (09) - CHASSIS/ATTACHMENTS

1

1974659C1

HEATER HOSE,15.50 mm ID x 1905.00 mm

HOSE , Cut from 97252C1, See below 15.50 mm ID x 1905.00 mm

1шт.

2

L46646

HOSE

- 5/8" (16 mm) ID x 95" (2413 mm) long, cut from A42610, see below

1шт.

3

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP - hose retaining, No. 10 type F

10шт.

4

L107932

CLAMP

- double

1шт.

5

113-111

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

1шт.

6

195-103

WASHER,5/16"

NUT - hex, 1/2 inch NC

2шт.

7

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

8

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

1шт.

9

D33316

CLAMP

- tube

1шт.

10

113-120

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

1шт.

11

L123704

PLATE

BRACKET - hose clamp

1шт.

12

814-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8, Full Thd

- hex flange head, M12 x 25

1шт.

13

892-11012

LOCK WASHER,M12

WASHER, LOCK, M12

1шт.

14

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

1шт.

15

R21385

CLAMP

- hose

3шт.

16

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

17

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

18

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

19

L78860

GROMMET

- tube

2шт.

20

L78796

HEATER TUBE,0.625" OD

TUBE - heater

1шт.

21

L78797

HEATER TUBE,0.625" OD x 13.71, 6.58" L

TUBE - heater

1шт.

22

1975868C1

HEATER HOSE,15.00 mm ID x 89.00 mm

HOSE , 90 Degree Bend, Left-hand Outlet, Heater Core 15.00 mm ID x 89.00 mm

1шт.

23

R54333

VALVE

- heater, includes hardware, use in place of F63865 in this application

1шт.

24

F43183

HEATER HOSE

HOSE - 5/8" (16 mm) ID x 2" (51 mm) long, cut from A42610, see below

2шт.

25

L78074

HEAT-EXCHANGER

CORE - heater

1шт.

26

113-1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

4шт.

27

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

4шт.

28

131-120

NUT

- U-type, 1/4" - 20 NC

4шт.

29

L104585

CABLE PULLING GRIP

CABLE - control

1шт.

30

L74694

KNOB

- control

1шт.

31

221-1192

FITTING

NIPPLE - 1/2" NPT x 3" long

1шт.

32

221-1338

COUPLING,Pipe, 1/2" NPT

- straight, 1/2" NPT

1шт.

33

221-89

REDUCER,Hex, 1/2" x 3/8" NPT

BUSHING - reducer, 1/2 to 3/8 inch PT

2шт.

34

A16764

VALVE

- water shut-off

2шт.

A42610

LARGE HOSE

HOSE - bulk roll, 5/8" (16 mm) ID x 50 ft (15.2 m) long

1шт.

97252C1

HOSE,15.875 mm ID x 15240 mm Bulk

1шт.
