Запчасти Case W11B (9-046) - CAB HEATER, HOSES, AND MOUNTING, BEFORE P.I.N. 9164337 (09) - CHASSIS/ATTACHMENTS

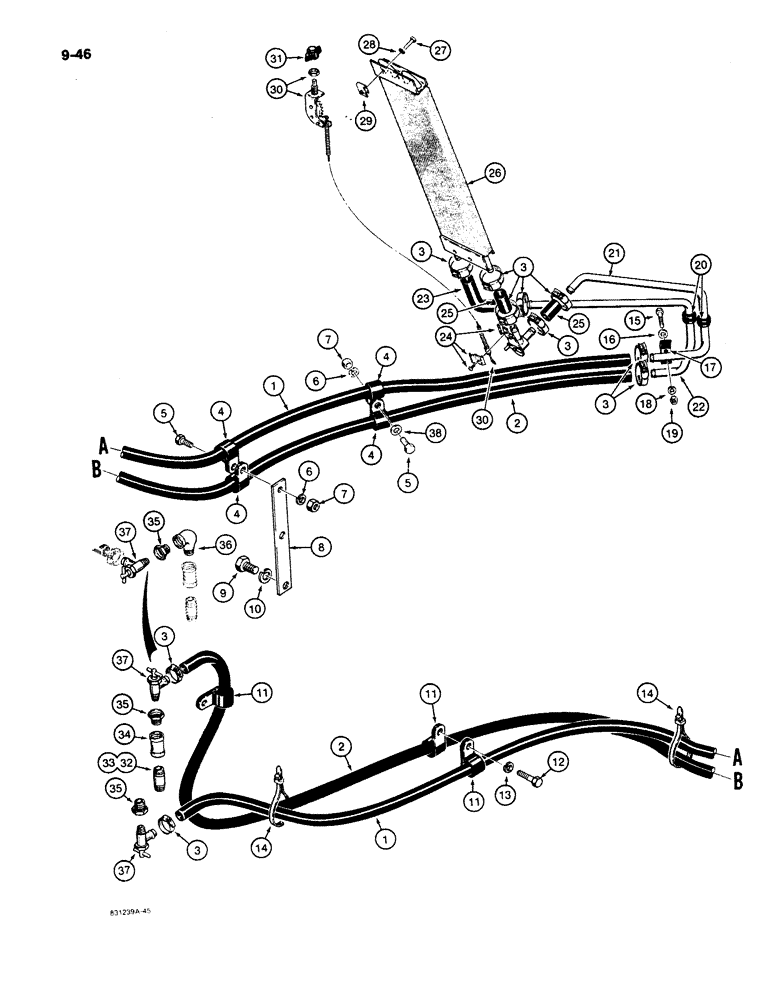

Схема запчастей Case W11B - (9-046) - CAB HEATER, HOSES, AND MOUNTING, BEFORE P.I.N. 9164337 (09) - CHASSIS/ATTACHMENTS

Артикул

Название

Примечание

Количество

1

REF

INSTRUCTION

HOSE - 5/8" (16 mm) ID x 75" (1905 mm) long, cut from A42610, see below

1шт.

2

REF

INSTRUCTION

HOSE - 5/8" (16 mm) ID x 95" (2413 mm) long, cut from A42610, see below

1шт.

3

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP - hose retaining, No. 10 type F

10шт.

4

D20302

CLAMP,7/8", Insul, 3/8" Bolt

- hose, P-style

4шт.

5

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

6

492-11038

LOCK WASHER,3/8"

2шт.

7

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

8

L78901

BRACKET

- hose clamp

1шт.

9

113-602

BOLT,Hex, 5/8" - 11 x 1", Gr 5, Full Thd

2шт.

10

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

11

R21385

CLAMP

- hose

3шт.

12

814-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8, Full Thd

- hex flange head, M12 x 25

1шт.

13

892-11012

LOCK WASHER,M12

WASHER, LOCK, M12

1шт.

14

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

15

113-120

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

1шт.

16

195-103

WASHER,5/16"

NUT - hex, 1/2 inch NC

1шт.

17

D33316

CLAMP

- tube

1шт.

18

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

1шт.

19

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

1шт.

20

L78860

GROMMET

- tube

2шт.

21

L78796

HEATER TUBE,0.625" OD

TUBE - heater

1шт.

22

L78797

HEATER TUBE,0.625" OD x 13.71, 6.58" L

TUBE - heater

1шт.

23

1975868C1

HEATER HOSE,15.00 mm ID x 89.00 mm

HOSE , 90 Degree Bend, Left-hand Outlet, Heater Core 15.00 mm ID x 89.00 mm

1шт.

24

R54333

VALVE

- heater, includes hardware, use in place of F63865 in this application

1шт.

25

REF

INSTRUCTION

HOSE - 5/8" (16 mm) ID x 2" (51 mm) long, cut from A42610, see below

2шт.

26

L78074

HEAT-EXCHANGER

CORE - heater

1шт.

27

113-1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

4шт.

28

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

4шт.

29

131-120

NUT

- U-type, 1/4" - 20 NC

4шт.

30

L104585

CABLE PULLING GRIP

CABLE - control

1шт.

31

L74694

KNOB

- control

1шт.

32

221-1192

FITTING

NIPPLE - 1/2" NPT x 3" long, replaces 2" long nipple used in production on some models, used on models without street elbow (Ref. 36)

1шт.

33

221-1191

PIPE,Nipple, 1/2" NPT x 2 1/2"

NIPPLE - 1/2" NPT x 2-1/2" long, used on models with street elbow (Ref. 36)

1шт.

34

221-1338

COUPLING,Pipe, 1/2" NPT

- straight, 1/2" NPT

1шт.

35

221-89

REDUCER,Hex, 1/2" x 3/8" NPT

BUSHING - reducer, 1/2 to 3/8 inch PT

2шт.

36

221-1414

ELBOW,90 Degree, 1/2"-14, NPT

STREET ELBOW - 90 degree, if used

1шт.

37

A16764

VALVE

- water shut-off

2шт.

38

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) 3/8"

1шт.

A42610

LARGE HOSE

HOSE - bulk roll, 5/8" (16 mm) ID x 50 ft (15.2 m) long, not shown

1шт.
