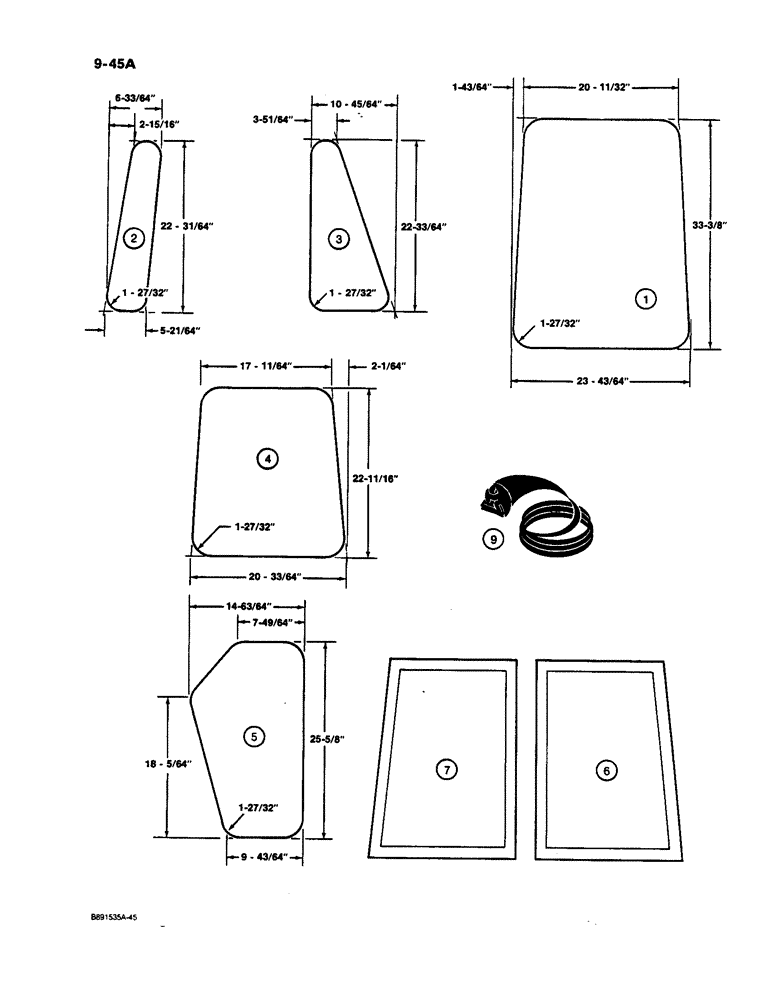

Запчасти Case W11B (9-045A) - CAB GLASS, SIMS CAB WITH PUSH BUTTON TYPE DOOR HANDLE (09) - CHASSIS/ATTACHMENTS

1

S300941

GLASS

- windshield, cut seal from S300942 bulk, 110-7/8 inch long, see Ref. 9

1шт.

2

S300945

GLASS

- front, narrow, cut seal from S300942 bulk, 54-1/8 inch long, see Ref. 9

2шт.

3

S300944

GLASS

- front, side, cut seal from S300942 bulk, 60-1/2 inch long, see Ref. 9

2шт.

4

S300943

GLASS

- rear, cut seal from S300942 bulk, 83-1/4 inch long, see Ref. 9

2шт.

5

S300966

GLASS

- door, lower sight, cut seal from S300942 bulk, 72-3/8 inch long, see Ref. 9

2шт.

6

N9998

DOOR SEAL

WINDOW - door, glass and frame, sliding, right-hand, see Ref. 10

1шт.

7

N9997

FRAME

WINDOW - door, glass and frame, sliding, left-hand, see Ref. 10

1шт.

8

163485C1

RIVET

POP RIVET - 3/16", used to install sliding windows, not shown

20шт.

9

S300942

SEAL

- bulk, used around all glass except sliding windows, 50 ft long

1шт.

10

S300965

SEAL

- bulk, foam tape, used around sliding windows, 50 ft long, not shown

1шт.
