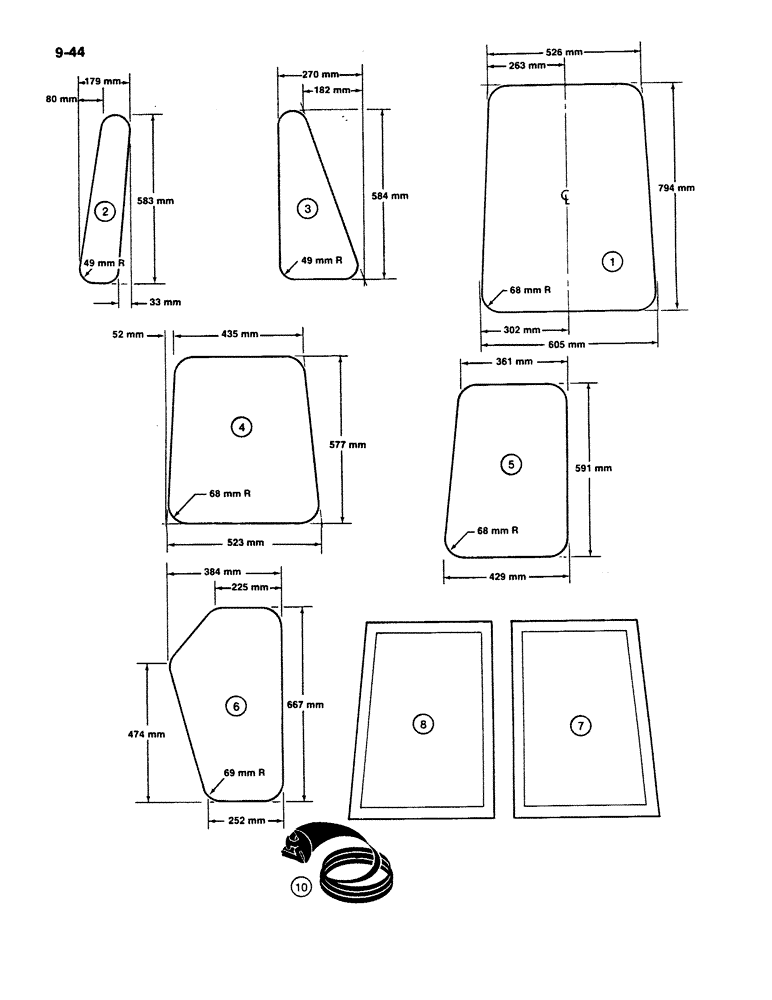

Запчасти Case W11B (9-044) - CAB GLASS, METRIC DIMENSIONS, ORRVILLE CAB WITH ROTARY TYPE HANDLE (09) - CHASSIS/ATTACHMENTS

1

REF

INSTRUCTION

GLASS - windshield

1шт.

2

REF

INSTRUCTION

GLASS - front, narrow

2шт.

3

REF

INSTRUCTION

GLASS - front, side

2шт.

4

REF

INSTRUCTION

GLASS - rear

2шт.

5

REF

INSTRUCTION

GLASS - door, used, Serial Range: -9158232

2шт.

6

REF

INSTRUCTION

GLASS - door, lower sight, used, Start Serial: 9158232

2шт.

7

N9998

DOOR SEAL

WINDOW - door, glass and frame, sliding, right-hand, used, Start Serial: 9158232

1шт.

8

N9997

FRAME

WINDOW - door, glass and frame, sliding, left-hand, used, Start Serial: 9158232

1шт.

9

151-544

RIVET,Pop, 3/16" x .515"

POP RIVET - 3/16", used to install sliding windows, not shown

20шт.

10

REF

INSTRUCTION

SEAL - 0.859 inch width, used around all glass except sliding windows and lower sight door glass, cut from S300932 bulk roll

1шт.

10

REF

INSTRUCTION

SEAL - 1.046 inch width, used around lower sight door glass, cut from S300931 bulk roll

1шт.

11

D70611

RUBBER JOINT

SEAL - foam tape, bulk, 15.24 m long, not shown, used around sliding window frames

1шт.
