Запчасти Case W11B (9-041A) - CAB DOORS AND LATCHES, SIMS CAB WITH PUSH BUTTON TYPE DOOR HANDLE (09) - CHASSIS/ATTACHMENTS

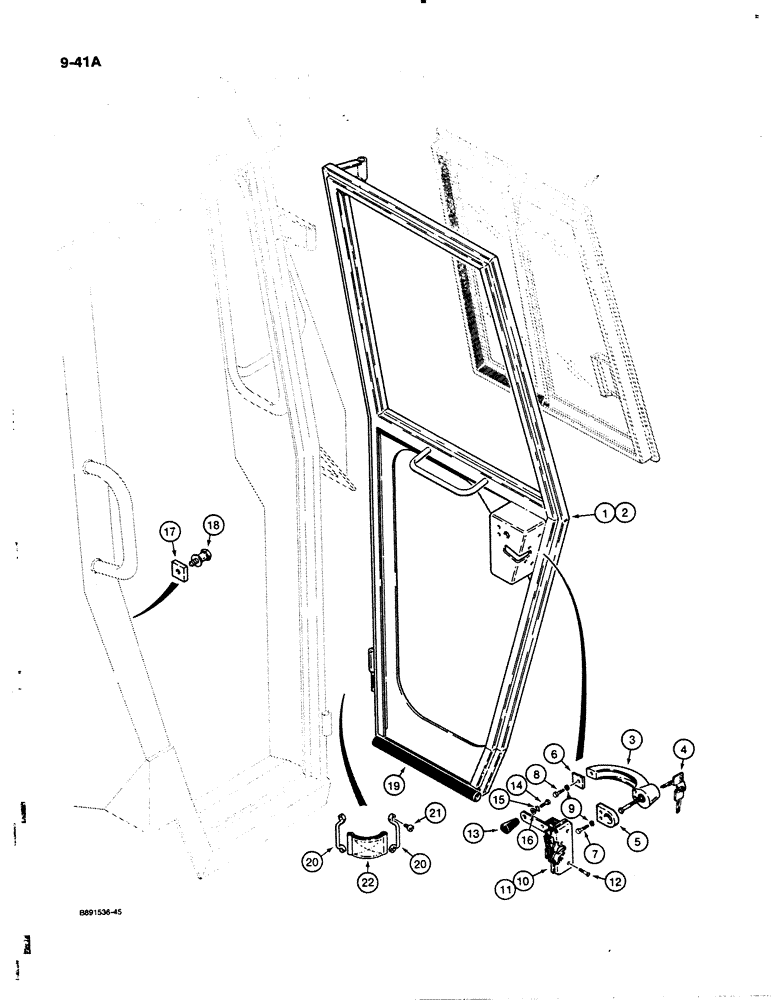

Схема запчастей Case W11B - (9-041A) - CAB DOORS AND LATCHES, SIMS CAB WITH PUSH BUTTON TYPE DOOR HANDLE (09) - CHASSIS/ATTACHMENTS

Артикул

Название

Примечание

Количество

1

S300961

DOOR ASSY.

DOOR - cab, right-hand

1шт.

2

S300960

DOOR

- cab, left-hand, not shown

1шт.

3

1339958C1

HANDLE

- door, outer, push button type

2шт.

4

A77313

SET OF 2 KEYS

KEY - door lock, set of two

2шт.

5

S300967

SPACER

- handle, large

2шт.

6

S300968

SPACER

- handle, small

2шт.

7

627-6025

BOLT,Hex, M6 x 1 x 25mm, Cl 10.9, Full Thd

- hex, 6 mm - 1 x 25 mm

4шт.

8

627-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 10.9, Full Thd

2шт.

9

192-406

WASHER - lock, 6 mm

6шт.

10

1339959C1

LOCK ASSY

LATCH - door striker, left-hand

1шт.

11

S300930

LATCH

- door striker, right-hand, not shown

1шт.

12

171-248

SCREW,Cross Flat Hd, 1/4" - 20 x 1"

- machine, round head Phillips, 1/4 NC x 1 inch

8шт.

13

F64341

KNOB

- latch lever, inside

2шт.

14

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

15

192-402

LOCK WASHER

WASHER - SAE Hi Collar spring lock, 1/4 inch

2шт.

16

195-518

WASHER,1/4", SAE

- flat, 9/32 x 5/8 x 3/64 inch

2шт.

17

N9995

PLATE

- striker

2шт.

18

R51754

STRIKER

STRIKER - door latch

2шт.

19

REF

INSTRUCTION

SEAL - lower door, 11 inch long, cut from D80645, see below

2шт.

20

L35979

STOP

RETAINER - strap, door and cab

4шт.

21

61-48

HEX SOC SCREW,1/4"-20 x 1/2"

SCREW - hex socket, 1/4 NC x 1/2 inch

8шт.

22

S300962

STRAP

-, Serial Range: door-cab

2шт.

D80645

SEAL

- bulk, 50 foot long

1шт.

Выбрано товаров: 23
