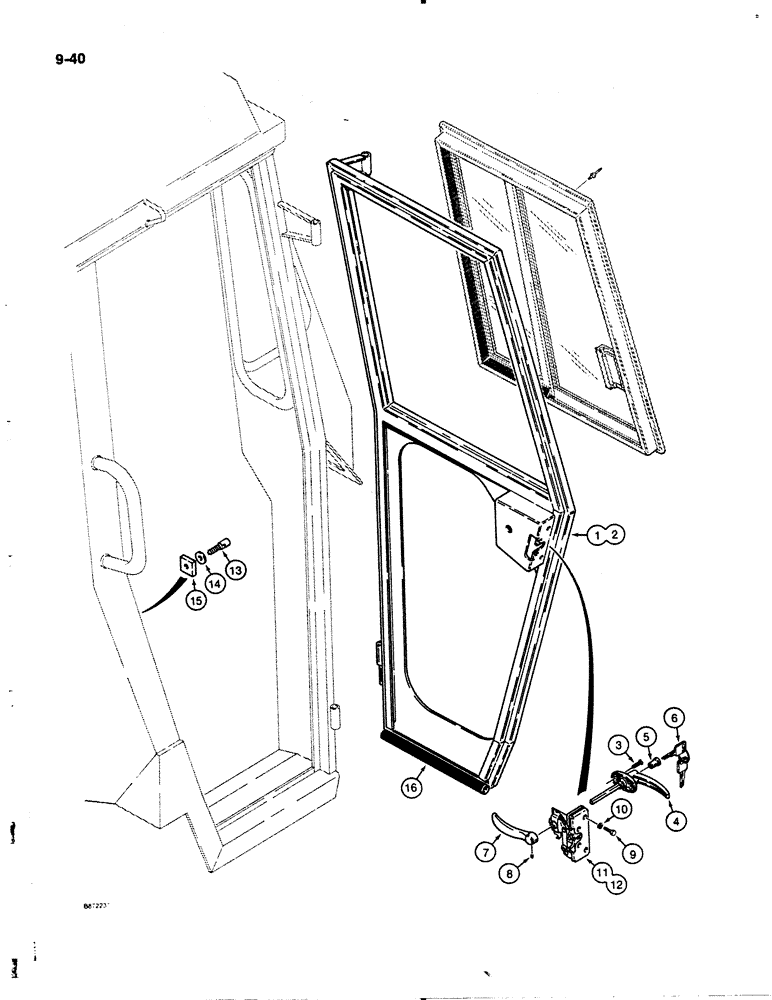

Запчасти Case W11B (9-040) - CAB DOORS AND LATCHES, ORRVILLE CAB WITH ROTARY TYPE DOOR HANDLE (09) - CHASSIS/ATTACHMENTS

1

N9999

DOOR ASSY.

DOOR - right-hand

1шт.

2

N13000

DOOR ASSY.

DOOR - left-hand

1шт.

3

171-212

SCREW,Sl Flat Hd, #10 - 24 x 5/8"

- flat head slotted, No. 10 - 24 NC x 5/8"

4шт.

4

D80653

HANDLE

- door, outside

2шт.

5

D83099

LOCK

ASSEMBLY - cylinder, Includes: Ref. 6

2шт.

6

A77313

SET OF 2 KEYS

KEY - ignition

1шт.

7

N9992

HANDLE

- door, inside

2шт.

8

83-44

SET SCREW,Hex Soc, 1/4"-20 x 1/4"

SCREW - hex socket, 1/4 NC x 1/4 inch set

2шт.

Screws hold lever handle to outer handle shaft.

1шт.

9

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

8шт.

10

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

8шт.

11

N9993

LATCH

ASSEMBLY - right-hand

1шт.

12

N9994

LATCH

ASSEMBLY - left-hand

1шт.

13

F45073

PIN

STRIKER - latch

2шт.

14

N13017

WASHER

- bellville

2шт.

15

N9995

PLATE

- striker

2шт.

16

REF

INSTRUCTION

SEAL - 24" (51 mm) long, cut from D80645, see below

2шт.

D80645

SEAL

- bulk, 50' (15.2 m)

1шт.
