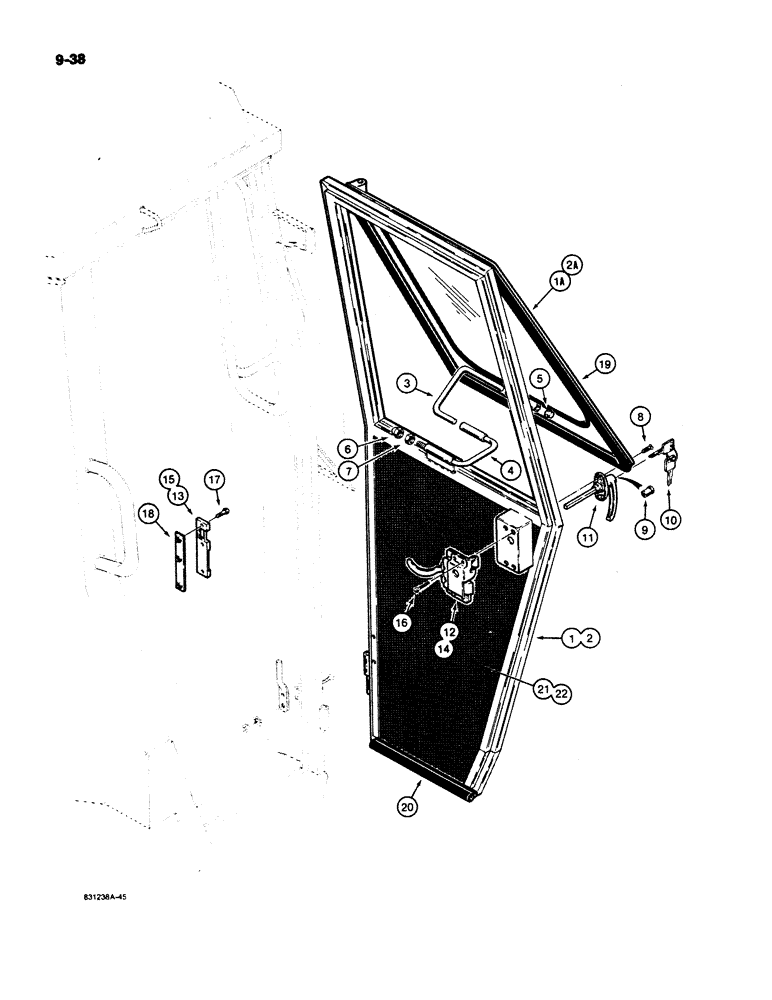

Запчасти Case W11B (9-038) - CAB DOORS AND LATCHES, ORRVILLE CAB WITH ROTARY TYPE DOOR HANDLE (09) - CHASSIS/ATTACHMENTS

1

D80667

DOOR

ASSEMBLY - right-hand, Includes: Ref. 1A

1шт.

1a

S300423

CHASSIS

FRAME - window, push-out, right-hand

1шт.

2

D80668

DOOR

ASSEMBLY - left-hand, not shown, Includes: Ref. 2A

1шт.

2a

S300422

FRAME

- window, push-out, left-hand, not shown

1шт.

3

D80669

LATCH

- outer

2шт.

4

D80670

LATCH

- inner

2шт.

5

131-425

PUSH-ON NUT,Push, 1/2"

NUT, LOCK, Push, 1/2"

2шт.

Nut at window is the only one that looks like illustration. The other nut looks like Ref. 7 on Figure 9-32.

1шт.

6

129-544

NUT,Crown, 1/2"-13

- domed, 1/2" - 13 NC

2шт.

7

129-145

JAM NUT,Jam, 1/2"-13, G5

2шт.

8

171-212

SCREW,Sl Flat Hd, #10 - 24 x 5/8"

- flat head slotted, No. 10 - 24 NC x 5/8"

4шт.

9

D83099

LOCK

ASSEMBLY - cylinder

2шт.

10

A77313

SET OF 2 KEYS

KEY - ignition, set of two

1шт.

11

D80653

HANDLE

- door

2шт.

D80654

LATCH

AND STRIKER PLATE ASSEMBLY - right-hand, Includes: Ref. 12 and 13

1шт.

12

NSS

NOT SOLD SEPARAT

LATCH - right-hand

1шт.

13

N9738

PLATE

- striker, right-hand

1шт.

D80655

LATCH

AND STRIKER PLATE ASSEMBLY - left-hand, Includes: Ref. 14 and 15

1шт.

14

NSS

NOT SOLD SEPARAT

LATCH - left-hand

1шт.

15

N9739

PLATE

- striker, left-hand

1шт.

16

182-561

SCREW,Slotted Pan Hd, #10-24 x 3/4"

- pan head slotted, No. 10 NC x 3/4 inch

8шт.

17

171-248

SCREW,Cross Flat Hd, 1/4" - 20 x 1"

- round head, Phillips, 1/4" - 20 NC x 1"

6шт.

18

D80642

RUBBER

PLATE - backing

2шт.

19

REF

INSTRUCTION

SEAL - 89" (2261 mm) long, cut from F43117, see below

2шт.

20

REF

INSTRUCTION

SEAL - 24" (51 mm) long, cut from D80645, see below

2шт.

21

D83103

INSULATOR

PAD - left-hand, not shown

1шт.

22

D83102

INSULATOR

PAD - right-hand

1шт.

F43117

SEAL

- bulk, 50' (15.2 m)

1шт.

D80645

SEAL

- bulk, 50' (15.2 m)

1шт.
