Запчасти Case W11B (9-037A) - CAB SEALS, PADS, AND PANELS, SIMS CAB WITH PUSH BUTTON TYPE (09) - CHASSIS/ATTACHMENTS

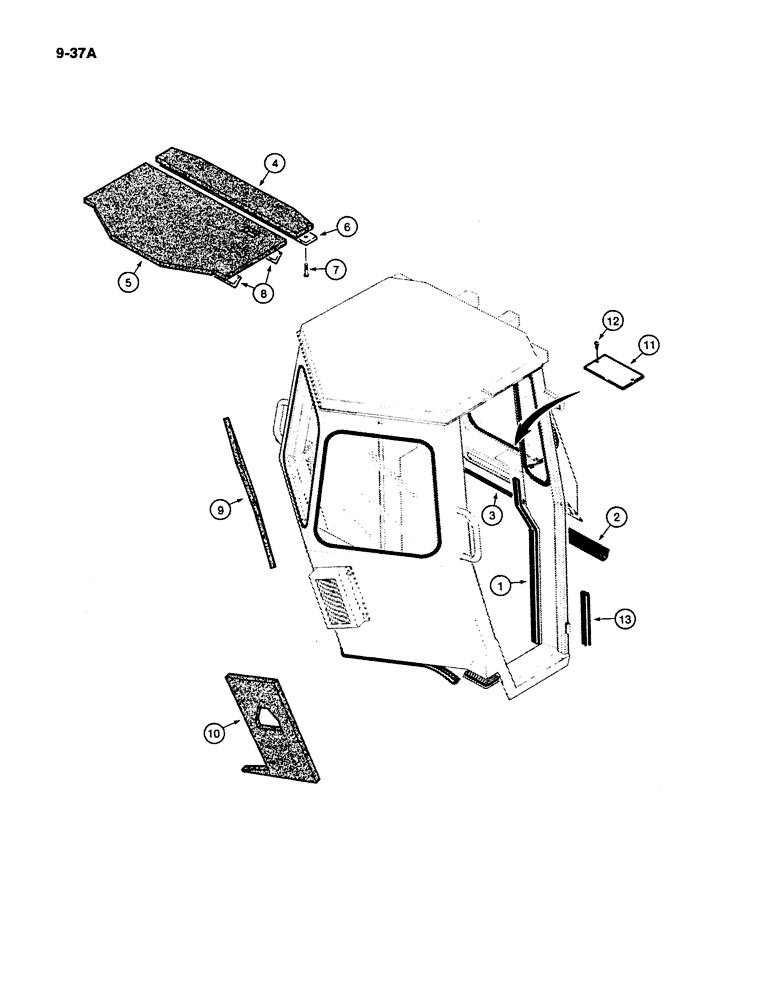

Схема запчастей Case W11B - (9-037A) - CAB SEALS, PADS, AND PANELS, SIMS CAB WITH PUSH BUTTON TYPE (09) - CHASSIS/ATTACHMENTS

Артикул

Название

Примечание

Количество

1

REF

INSTRUCTION

SEAL - 3/4 inch x 1-1/4 inch x 56 inch long, cut from D80644, see below

2шт.

2

REF

INSTRUCTION

SEAL - 27 inch long, cut from D80643, see below

1шт.

3

REF

INSTRUCTION

FOAM - 1/2 inch x 3/4 inch x 28 inch long, cut from D78384, see below

1шт.

4

S300953

ROOF LINING

PAD - headliner, front

1шт.

5

S300946

ROOF

PAD - headliner, rear

1шт.

6

S300964

RETAINER

- headliner, front

1шт.

7

182-534

SCREW,Sl Pan Hd, 1/4" - 20 x 1"

- machine, pan head slotted, 1/4 NC x 1 inch

3шт.

8

S300957

RETAINER

- headliner, rear

2шт.

9

S300955

INSULATOR

PAD - insulation, left-hand rear

1шт.

10

S300954

COVER

PAD - insulation, right-hand rear

1шт.

11

S300959

PLATE

- access

1шт.

12

187-329

SELF-TAP SCREW,Pan, 0.19"-16 x 1/4"

SCREW - self-tapping, No. 10 NC x 1/2 inch

2шт.

13

REF

INSTRUCTION

SEAL - 139 inch long, cut from D80645, see below

2шт.

D78384

SEAL

FOAM - bulk, 1/2 inch x 3/4 inch x 50 foot

1шт.

D80643

SEAL

- bulk, 50 foot long

1шт.

D80644

SEAL

- bulk, 30 foot long

1шт.

D80645

SEAL

- bulk, 50 foot long

1шт.

Выбрано товаров: 17
