Запчасти Case W11B (9-036) - CAB SEALS, PADS, AND PANELS, ORRVILLE CAB WITH ROTARY TYPE DOOR HANDLES (09) - CHASSIS/ATTACHMENTS

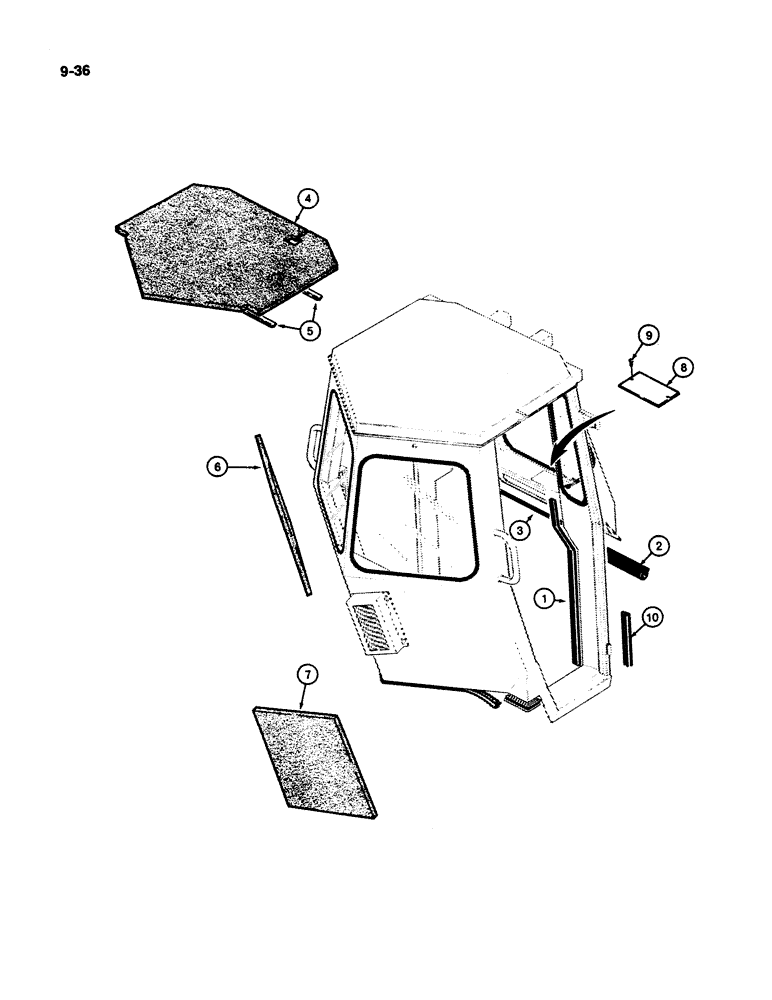

Схема запчастей Case W11B - (9-036) - CAB SEALS, PADS, AND PANELS, ORRVILLE CAB WITH ROTARY TYPE DOOR HANDLES (09) - CHASSIS/ATTACHMENTS

Артикул

Название

Примечание

Количество

1

REF

INSTRUCTION

SEAL - 3/4" x 1-1/4" x 36" (19 mm x 32 mm x 914 mm), cut from D80644, see below

2шт.

2

REF

INSTRUCTION

SEAL - 27" (686 mm) long, cut from D80643, see below

1шт.

3

REF

INSTRUCTION

FOAM - 1/2" x 3/4" x 28" (13 mm x 19 mm x 911 mm), cut from D78384, see below

1шт.

4

D80647

ROOF LINING

PAD - headliner

1шт.

5

D80666

STRAP

RETAINER - headliner

2шт.

6

D83104

PAD

- left-hand

1шт.

7

D83105

PAD

- right-hand

1шт.

8

D80664

PLATE

- access

1шт.

9

187-329

SELF-TAP SCREW,Pan, 0.19"-16 x 1/4"

SCREW - self-tapping, No. 10 NC x 1/2 inch

2шт.

10

REF

INSTRUCTION

SEAL - 159" (4043 mm) long, cut from D80645, see below

2шт.

D78384

SEAL

FOAM - bulk 1/2" x 3/4" x 50 ft (13 mm x 28 mm x 15.2 m)

1шт.

D80643

SEAL

- bulk, 50 ft (15.2 m) long

1шт.

D80644

SEAL

- bulk, 30 ft (7.6 m) long

1шт.

D80645

SEAL

- bulk, 50 ft (15.2 m) long

1шт.

Выбрано товаров: 14
