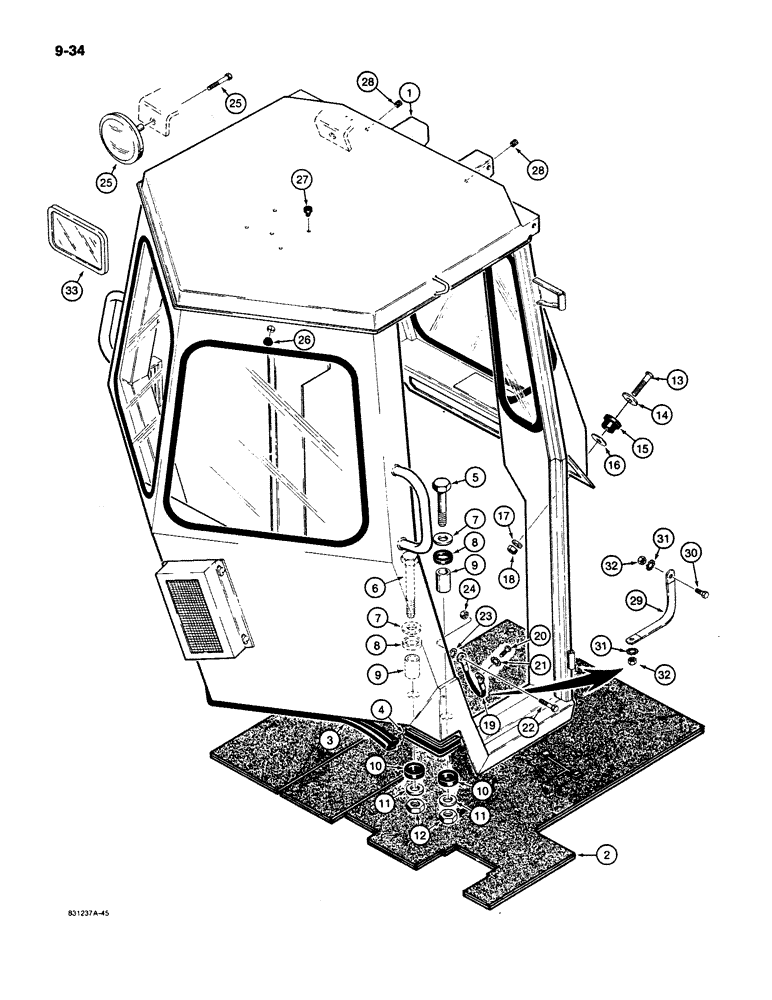

Запчасти Case W11B (9-034) - CAB MOUNTING (09) - CHASSIS/ATTACHMENTS

1

REF

INSTRUCTION

CAB - operators, machinery item, order from the Machinery Price List

1шт.

REF: 1A CAB DESCRIPTIONS AS FOLLOWS:

1шт.

L112189 -OLD STYLE ORRVILLE CAB WITH PUSH OUT WINDOWS & ROTARY DOOR HANDLES

1шт.

L127090 -NEW SIMS CAB W/SLIDING SIDE WINDOW AND PUSH BUTTON DOOR HANDLE

1шт.

L116205 -NEW STYLE ORRVILLE CAB WITH SLIDING WINDOWS & ROTARY DOOR HANDLES

1шт.

2

L78035

MAT

FLOORMAT - cab

1шт.

3

L79438

SEAL

- rear

1шт.

4

L79437

SEAL

- side

2шт.

5

26-1272

BOLT,Hex, 3/4" - 10 x 4-1/2", Gr 8

- hex, 3/4 NC x 4-1/2 inch, Grade 8

2шт.

6

26-1296

BOLT,Hex, 3/4" - 10 x 6", Gr 8

- hex head, 3/4" - 10 NC x 6", grade 8

2шт.

7

L79117

WASHER

- 3/4" (20 mm) ID x 2" (51 mm) OD

4шт.

8

L79118

PAD

- upper

4шт.

9

L79119

SLEEVE

- bolt

4шт.

10

L79120

PAD

- lower

4шт.

11

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- 3/4" (20 mm) ID x 3" (76 mmm) OD

4шт.

12

129-138

NUT,3/4"-10, G8

4шт.

13

164-577

HEX SOC SCREW,Btn Hd, 1/2" - 13 x 2 1/2"

SCREW - hex socket head, 1/2" - 13 NC x 2-1/2"

2шт.

14

195-2054

WASHER,17/32" x 2" x .238"

- flat, 1/2" (13 mm) ID x 2" (51 mm) OD

2шт.

15

L46821

SHOCK ABSORBER

BUSHING - rubber mount

2шт.

16

R40262

WASHER,13.11mm ID x 47.75mm OD x 2.38mm Thk

- flat, 33/64 x 1-7/8 x 3/32 inch

2шт.

17

R24718

WASHER

- 1/2" (13 mm) ID x 1-1/16" (27 mm) OD

2шт.

18

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

19

L79143

ELECTRICAL WIRE

WIRE - ground, if used

1шт.

20

187-1037

SELF-TAP SCREW,Slotted Pan Hd, #8 x 3/8"

SCREW - self-tapping, No. 8 - 32 NC x 3/8", used with Ref. 19 ground wire

1шт.

21

193-91

LOCK WASHER,Int Tooth, #8

WASHER, LOCK, , Used with Ref. 19 ground wire Int Tooth, #8

1шт.

22

113-4

BOLT,Hex, 1/4" - 20 x 1", Gr 5

1шт.

23

193-73

LOCK WASHER,Ext-Int Tooth, 1/4"

WASHER - internal/external lock, 1/4 inch used with Ref. 19 ground wire

1шт.

24

131-646

SPRING NUT,Tinn, U, 1/4"-20

- U-type, 1/4" - 20 NC

1шт.

25

L110136

MIRROR

- round, includes mounting screw, if used

1шт.

26

D83100

BUTTON

PLUG - button, used on models without rear wipers

2шт.

27

D83101

BUTTON

PLUG - rubber, if used

1шт.

28

T34928

GROMMET - head lamp and turn signal wire, if used

2-4шт.

29

D120366

STRAP

- ground, if used

1шт.

30

113-296

BOLT - hex, 3/8 NC x 1 inch, stainless steel, used with Ref. 29 ground strap

1шт.

31

193-72

LOCK WASHER

- internal-external tooth lock, 3/8", plated, used with Ref. 29 ground strap

2шт.

32

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, , Used with Ref. 29 ground strap 3/8"-16, G5

2шт.

33

L74714

MIRROR

- rectangular, includes hardware, if used

1шт.
