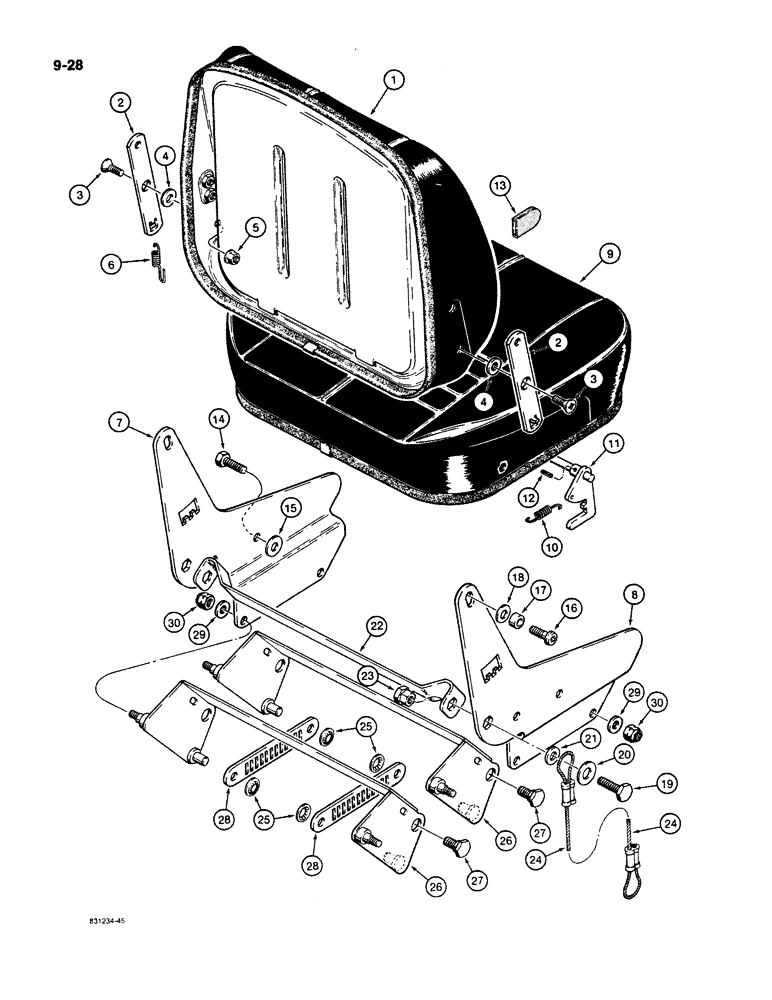

Запчасти Case W11B (9-028) - L112224 SUSPENSION SEAT (09) - CHASSIS/ATTACHMENTS

L112224

SEAT ASSY.

SEAT ASSEMBLY - suspension, includes parts on Figures 9-28 - 9-32, Includes: Ref. 1 - 30

1шт.

N8676

CUSHION ASSY.

CUSHION ASSEMBLY - seat back, Includes: Ref. 1 - 5

1шт.

1

NSS

NOT SOLD SEPARAT

CUSHION - seat back

1шт.

2

N8679

LINK

- seat back

2шт.

3

171-228

SCREW,Sl Flat Hd, 3/8" - 16 x 1"

- flat head, Phillips, 3/8" - 16 NC x 1", plated

2шт.

4

195-525

WASHER,3/8", SAE

- flat, 13/32 x 13/16 x 1/16 inch

2шт.

5

131-1352

LOCK NUT,Flg, 3/8"-16

NUT - hex flange, 3/8" - 16 NC, plated

2шт.

6

N8680

SPRING

- seat back link

2шт.

7

N8677

BRACKET

- seat, left-hand

1шт.

8

N8678

BRACKET

- seat, right-hand

1шт.

9

N8675

CUSHION ASSY.

CUSHION - seat bottom

1шт.

10

D82869

SPRING

- tilt shaft

2шт.

11

D82868

SHAFT

ASSEMBLY - seat tilt

1шт.

12

138-2057

PIN,5/32" x 5/8", Coiled

1шт.

13

A47347

CAP

AND DECAL - tilt lever

1шт.

14

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

2шт.

15

195-533

WASHER,1/2", SAE

- flat, 1/2" (17/32 x 1-1/16 x 5/64")

2шт.

16

164-417

HEX SOC SCREW,Btn Hd, 3/8" - 16 x 1 1/4"

BOLT - hex socket head, 3/8" - 16 NC x 1-1/4", grade 8

2шт.

17

N6875

SPACER

- bolt

2шт.

18

A45110

WASHER

- special

2шт.

19

D82872

BOLT

- special

2шт.

20

195-541

WASHER,5/8", SAE

- flat, 5/8", plated

2шт.

21

195-533

WASHER,1/2", SAE

- flat, 1/2" (17/32 x 1-1/16 x 5/64")

2шт.

22

D82871

BAR

- spacer

1шт.

23

D82873

SPECIAL NUT

- hex, special

2шт.

24

D82874

CABLE

- side brackets

2шт.

25

131-425

PUSH-ON NUT,Push, 1/2"

NUT, LOCK, Push, 1/2"

4шт.

26

N6857

LINK

BRACKET - tie

2шт.

27

A45473

STEP BOLT

BOLT - special

4шт.

28

A47383

LINK

- adjusting

2шт.

29

195-525

WASHER,3/8", SAE

- flat, 13/32 x 13/16 x 1/16 inch

4шт.

30

131-542

LOCK NUT,3/8"-16

NUT - hex, self-locking, 3/8" - 16 NC

4шт.
