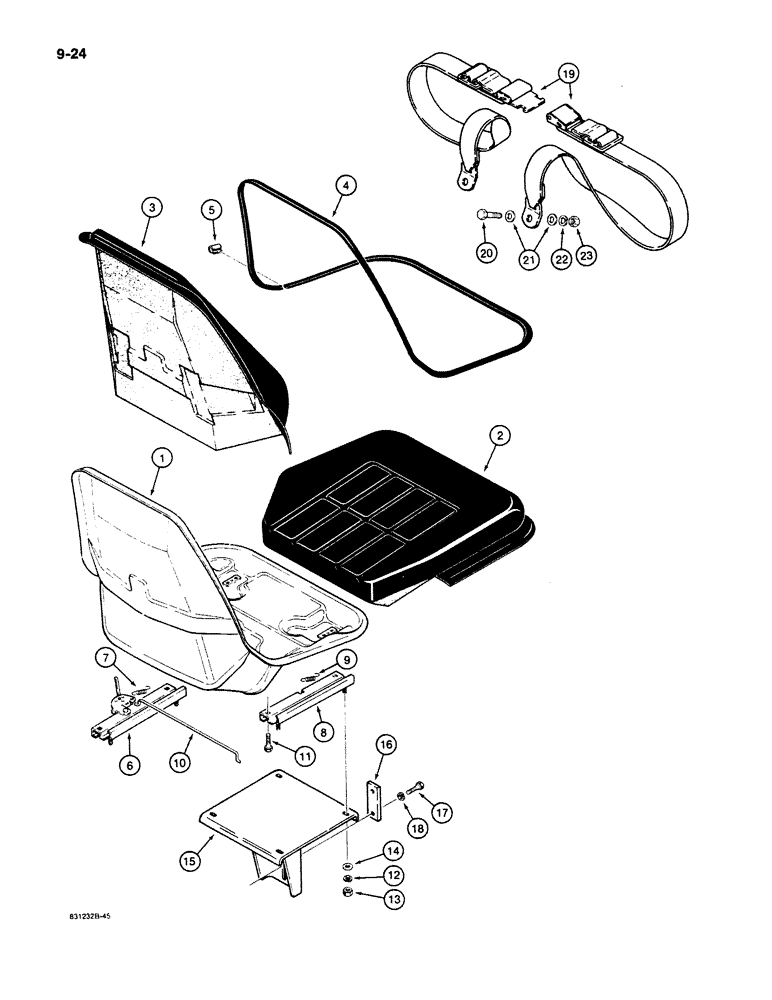

Запчасти Case W11B (9-024) - STANDARD SEAT AND COMPONENTS (09) - CHASSIS/ATTACHMENTS

L108783

SEAT

ASSEMBLY - operators, Includes: Ref. 1 - 13

1шт.

1

NSS

NOT SOLD SEPARAT

SHELL - seat

1шт.

2

N8462

CUSHION

- seat, includes N7802 clip kit, see below

1шт.

3

N8461

CUSHION

- backrest, includes N7802 clip kit, see below

1шт.

4

NSS

NOT SOLD SEPARAT

RETAINER - strip, edging and shell

1шт.

REF: 4A PART NUMBER N14614 RETAINER

1шт.

5

NSS

NOT SOLD SEPARAT

CLIP - retainer, order N7802 clip kit, see below

1шт.

6

D59688

SLIDE

- adjustment, with handle, Includes: Ref. 7

1шт.

7

L35503

SPRING

- return, slide

1шт.

8

A64818

ADJUSTER

SLIDE - adjustment, without handle, Includes: Ref. 9

1шт.

9

L35503

SPRING

- return, slide

1шт.

10

L35492

ROD

- slide adjustment, connecting

1шт.

11

113-118

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

4шт.

12

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

4шт.

13

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

4шт.

14

195-103

WASHER,5/16"

NUT - hex, 1/2 inch NC

4шт.

15

L74942

BRACKET

- seat support

1шт.

16

L76670

PLATE

- retaining

1шт.

17

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

2шт.

18

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

19

L117001

SAFETY BELT ,1.80" W

If used 1.80" W

1шт.

19

D85816

SAFETY BELT

SEAT BELT - 3" wide, if used

1шт.

20

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

2шт.

21

R24718

WASHER

- special

4шт.

22

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

23

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

N7802

CLIP

KIT - clip, includes Ref. 5 clip above plus 6 additional narrow clips

1шт.

345-44

ADHESIVE

- spray can, 19-1/2 fluid ounces, for attaching seat cushions to seat frame

1шт.
