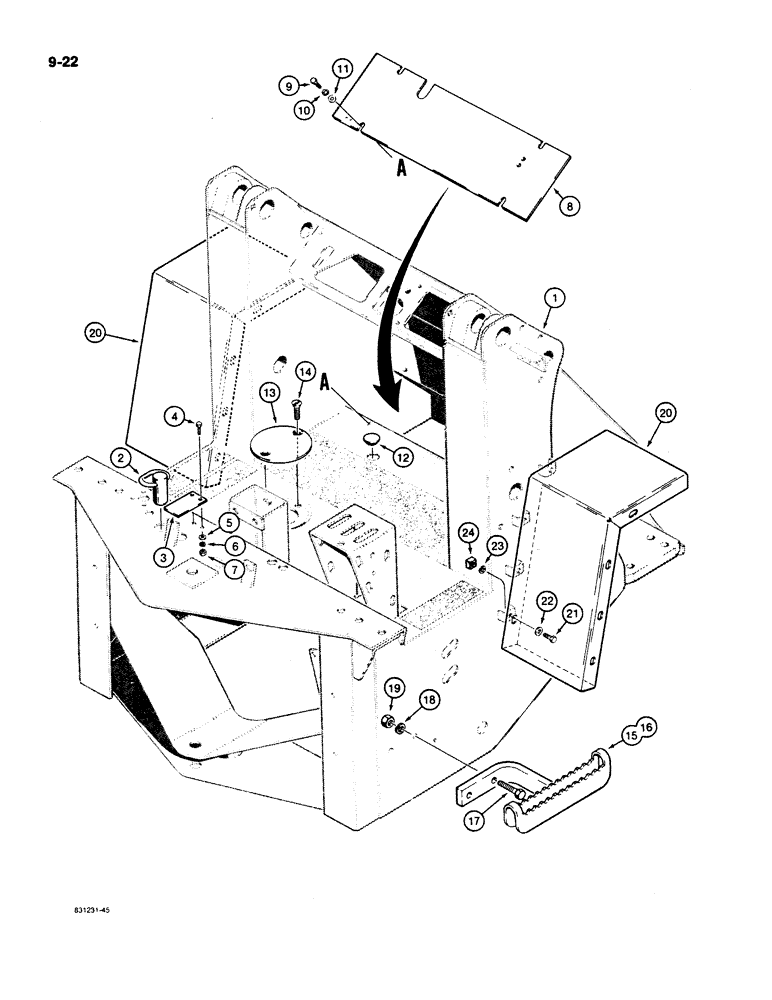

Запчасти Case W11B (9-022) - FRONT FRAME AND FENDERS (09) - CHASSIS/ATTACHMENTS

1

REF

INSTRUCTION

FRAME - front chassis, parts list Figure 9-21

1шт.

2

L77202

PIN

Lock

1шт.

3

L78519

SEAL

Lock, cab models only

1шт.

4

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

5

195-103

WASHER,5/16"

NUT - hex, 1/2 inch NC

2шт.

6

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

2шт.

7

425-105

NUT,5/16"-18, G5

2шт.

8

L111121

PLATE

SPARE PART Operators compartment

1шт.

9

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

4шт.

10

492-11038

LOCK WASHER,3/8"

4шт.

11

495-21044

WASHER,3/8"

(Flat, 7/16 x 1 x 5/64 inch)

4шт.

12

353-415

PLUG,Dome, 1.500" hole, Nylon

1шт.

13

L76312

COVER

Access

1шт.

14

73-616

SCREW,Slotted Flat Hd, 3/8"-16 x 1"

2шт.

15

L77744

STEP

RH

1шт.

16

L77745

STEP

LH

1шт.

17

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

4шт.

18

80679

LOCK WASHER,1/20.507 CST ZND

4шт.

19

425-108

NUT,1/2" - 13, Gr 5

4шт.

20

L76447

FENDER

Front

2шт.

21

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

8шт.

22

495-21044

WASHER,3/8"

(Flat, 7/16 x 1 x 5/64 inch)

8шт.

23

492-11038

LOCK WASHER,3/8"

8шт.

24

25-226

SQUARE NUT,Sq, 3/8"-16

8шт.
