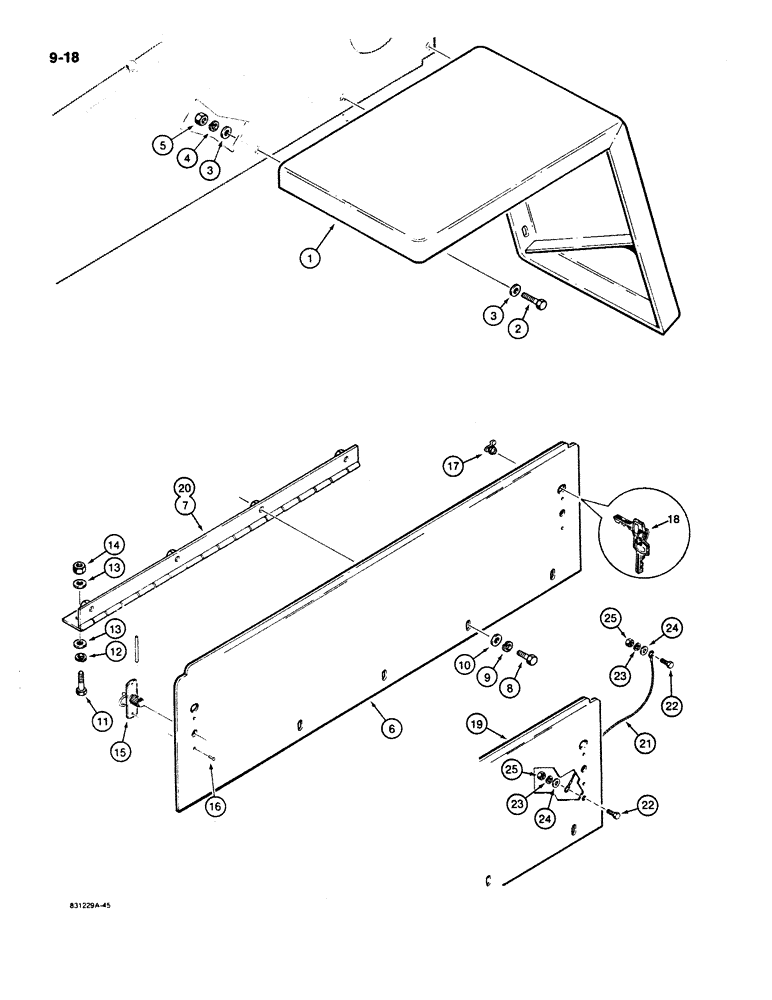

Запчасти Case W11B (9-018) - REAR FENDERS AND SIDE PANELS (09) - CHASSIS/ATTACHMENTS

1

L103993

FENDER

- rear

2шт.

2

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

8шт.

3

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) 3/8"

12шт.

4

492-11038

LOCK WASHER,3/8"

8шт.

5

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

8шт.

6

L113359

COVER

PANEL - engine side, used, Serial Range: -9164337

2шт.

REF. 6 AND 7 REFER TO FUNK

1шт.

7

L113385

HINGE

- side panel, used, Serial Range: -9164337

2шт.

8

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

8шт.

9

492-11038

LOCK WASHER,3/8"

8шт.

10

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) 3/8"

8шт.

11

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

8шт.

12

492-11038

LOCK WASHER,3/8"

8шт.

13

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) 3/8"

16шт.

14

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

8шт.

15

L102515

LATCH

- side panel

4шт.

16

151-558

RIVET,Pop, 3/16" x .450"

POP RIVET - side panel latch mounting

8шт.

17

L113294

LOCK

ASSEMBLY - cylinder type, Includes: Ref. 18

4шт.

18

N8790

SET OF 2 KEYS

KEYS - set of two

2шт.

19

L118251

PANEL

- engine side, used on, Start Serial: 9164337

2шт.

Refs. 19, 20 AND 21 REFER TO CLARK

1шт.

20

L118149

HINGE

- side panel, used on, Start Serial: 9164337

2шт.

21

L110228

CABLE

- side panel stop, used on, Start Serial: 9164337

2шт.

22

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

4шт.

23

492-11038

LOCK WASHER,3/8"

4шт.

24

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) 3/8"

4шт.

25

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

4шт.
