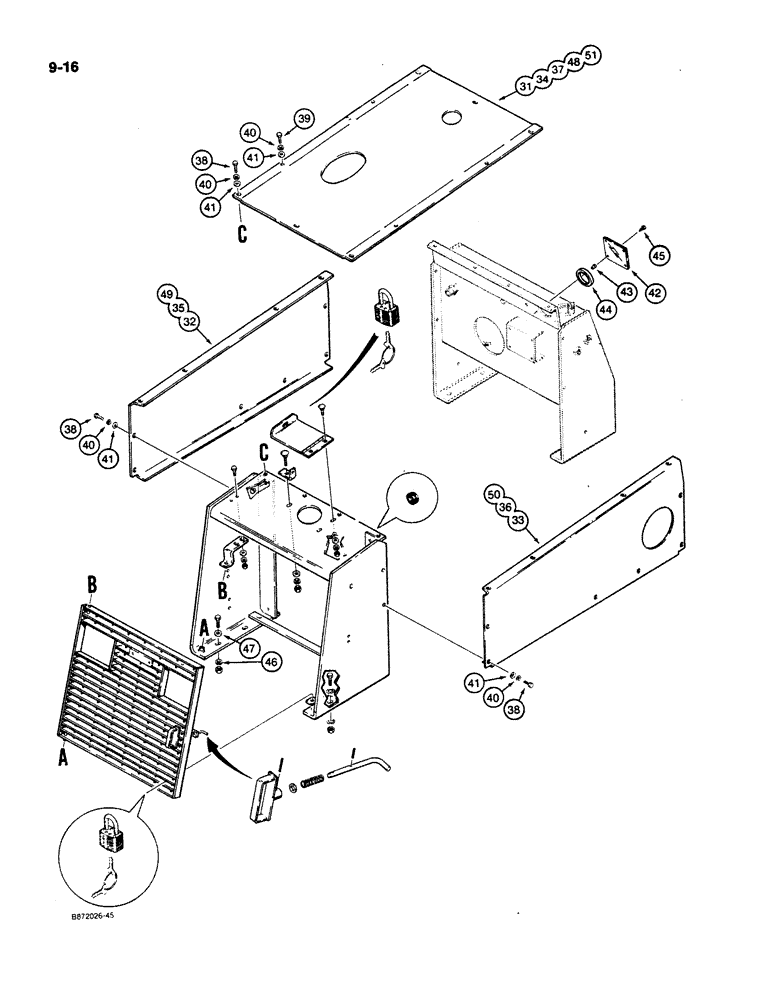

Запчасти Case W11B (9-016) - RADIATOR SHROUD,GRILLE, AND HOOD (09) - CHASSIS/ATTACHMENTS

31

L111275

TOP

HOOD - top, without turbocharger, used, mounted under side panel flanges, Serial Range: -9154401

1шт.

32

L110965

PANEL, SIDE

HOOD - left-hand panel, used, Serial Range: -9154401

1шт.

REF: 32, 33, 34, 35 AND 36 ARE ALL FUNK HOODS.

1шт.

33

L110963

PANEL, SIDE

HOOD - right-hand panel, used, Serial Range: -9154401

1шт.

34

L118174

HOOD

- top, without turbocharger used on P.I.N. 9154401 - P.I.N. 9164336, mounted on top of side panel flanges

1шт.

35

L114022

PANEL, SIDE

HOOD - left-hand panel, used on P.I.N. 9154401- P.I.N. 9164336

1шт.

36

L114024

PANEL, SIDE

HOOD - right-hand panel, used on P.I.N. 9154401 - P.I.N. 9164336

1шт.

37

L118316

SENSOR

HOOD - top, used with turbocharger, used, Serial Range: -9164337

1шт.

38

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

14шт.

39

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

40

492-11038

LOCK WASHER,3/8"

18шт.

41

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) 3/8"

18шт.

42

L54570

COVER

- tachometer, if used

1шт.

43

L72459

SPACER

- tachometer cover, if used

4шт.

44

L100774

SEAL

- tachometer, if used

1шт.

45

187-491

SELF-TAP SCREW,Hex Hd, 1/4" x 1"

SCREW - No. 14 x 1", self-tapping

4шт.

46

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

3шт.

47

495-21056

WASHER,1/2"

- flat, 9/16 x 1-3/8 x 3/32 inch

6шт.

48

L118136

HOOD

- top, without turbocharger, used on, mounted on top of side panel flanges, Start Serial: 9164337

1шт.

REFS: 48, 49, 50 AND 51 ARE CLARK HOOKS.

1шт.

49

L118246

PANEL

HOOD - left-hand panel, used on, Start Serial: 9164337

1шт.

50

L118245

PANEL

HOOD - right-hand panel, used on, Start Serial: 9164337

1шт.

51

L118479

HOOD ASSY.

HOOD - top, used with turbocharger, used on, Start Serial: 9164337

1шт.
