Запчасти Case W11B (2-008) - TURBOCHARGER SYSTEM, 4T-390 ENGINE (02) - ENGINE

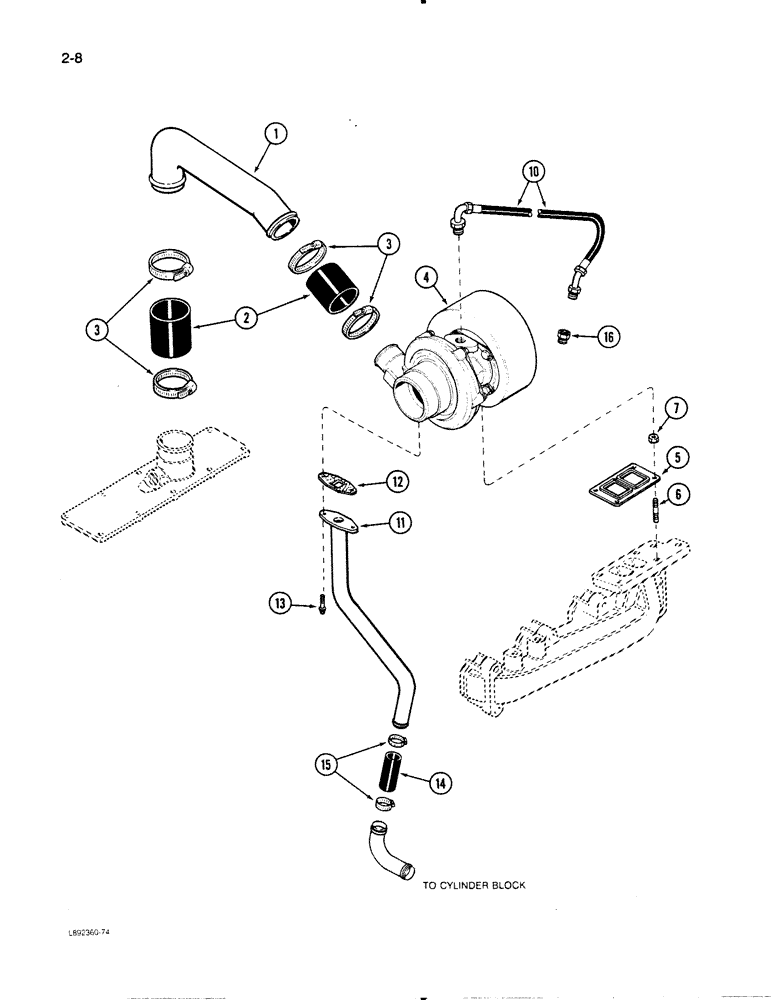

Схема запчастей Case W11B - (2-008) - TURBOCHARGER SYSTEM, 4T-390 ENGINE (02) - ENGINE

Артикул

Название

Примечание

Количество

1

J906623

TUBE,2 mm OD x 299.8 mm L

- air intake

1шт.

2

J916166

INTAKE AIR HOSE

HOSE - air intake (Replaces J901804)

2шт.

3

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

4шт.

4

REF

INSTRUCTION

TURBOCHARGER ASSEMBLY - engine (See Figure 2-11)

1шт.

5

J901356

GASKET,0.5mm Thk

-, Serial Range: turbocharger-manifold

1шт.

6

J905417

STUD

- turbocharger mounting

4шт.

7

J901961

NUT

- hex, stud

4шт.

10

J913759

HOSE

Turbocharger Oil Supply (Replaces J909546)

1шт.

11

J903740

TUBE

- turbocharger oil drain

1шт.

12

J914388

GASKET

- drain tube (Replaces J901805)

1шт.

13

J900630

BOLT,Hex Flg, M8 x 20, 8.8, Full Thd

- hex flange, 8 mm - 1.25 x 20 mm

2шт.

14

J903745

LARGE HOSE

HOSE - turbocharger oil drain

1шт.

15

214-255

HOSE CLAMP,#16, 0.81" - 1.5", Type F Worm

2шт.

16

A77457

FITTING

CONNECTOR - supply hose

1шт.

Выбрано товаров: 14
