Запчасти Case W11B (9-014) - RADIATOR SHROUD,GRILLE, AND HOOD (09) - CHASSIS/ATTACHMENTS

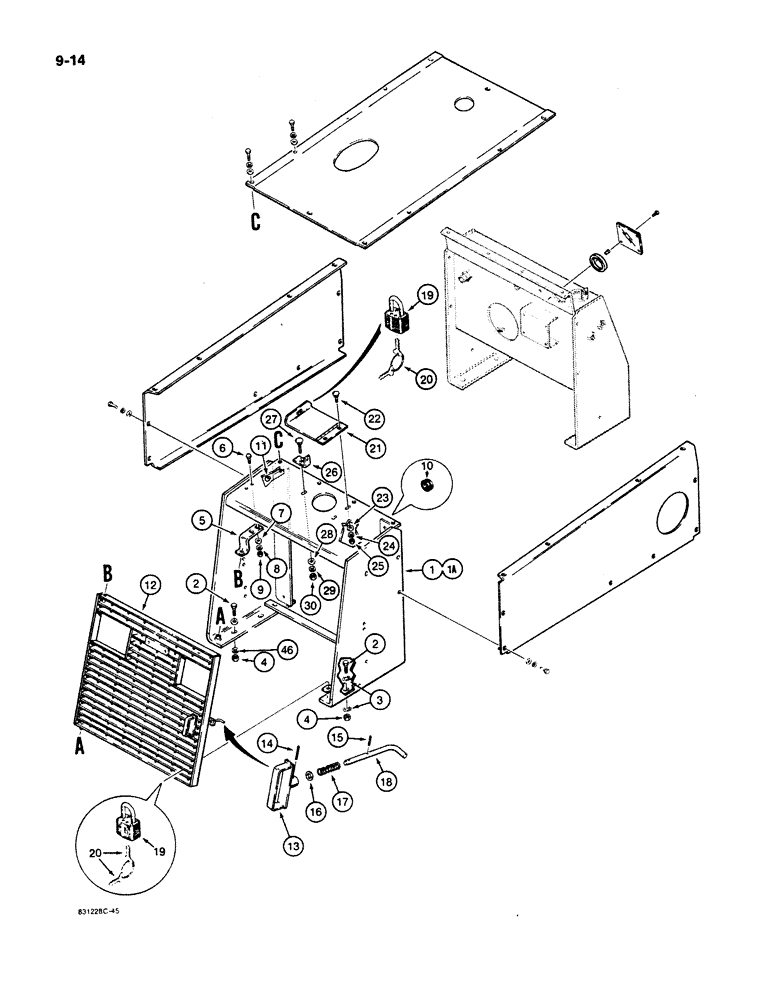

Схема запчастей Case W11B - (9-014) - RADIATOR SHROUD,GRILLE, AND HOOD (09) - CHASSIS/ATTACHMENTS

Артикул

Название

Примечание

Количество

1

L115607

GUARD

SHROUD - radiator guard, no longer available, order Refs. 1A, 46 and 47

1шт.

1a

L123723

GUARD

SHROUD - radiator guard

1шт.

2

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

4шт.

3

193-87

LOCK WASHER,Ext-Int Tooth, 1/2"

WASHER, LOCK, Ext-Int Tooth, 1/2"

2-8шт.

4

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

4шт.

5

L112190

SUPPORT

BRACKET - grille mounting

1шт.

6

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

2шт.

7

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) 3/8"

2шт.

8

492-11038

LOCK WASHER,3/8"

2шт.

9

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

10

A37563

GROMMET

- shroud

1шт.

11

353-410

PLUG,Dome, .875" hole, Nylon

- 7/8", nylon

1шт.

12

L115579

GRILLE

- rear

1шт.

13

L73738

HANDLE

- grille latch

1шт.

14

138-57

LOCK PIN,1/8" x 3/4", Slotted

PIN, 1/8" x 3/4", Slotted

1шт.

15

138-55

LOCK PIN,1/8" x 5/8", Slotted

PIN, 1/8" x 5/8", Slotted

1шт.

16

195-525

WASHER,3/8", SAE

- flat, 13/32 x 13/16 x 1/16 inch

1шт.

17

L76665

SPRING

- grille latch

1шт.

18

L73742

ROD

- grille latch

1шт.

19

D93753

PADLOCK

- includes keys, if used, Includes: Ref. 20

2шт.

20

R29555

KEY

- for Master padlock only

2шт.

20

D93751

SET OF 2 KEYS

KEY - for Yale padlock only

2шт.

21

L112374

COVER

- radiator cap access

1шт.

22

111-317

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G2

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1", G2

2шт.

23

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) 3/8"

2шт.

24

492-11038

LOCK WASHER,3/8"

2шт.

25

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

26

L112314

SUPPORT

TAB - radiator cap access cover lock

1шт.

27

111-317

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G2

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1", G2

1шт.

28

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) 3/8"

1шт.

29

492-11038

LOCK WASHER,3/8"

1шт.

30

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

Выбрано товаров: 32
