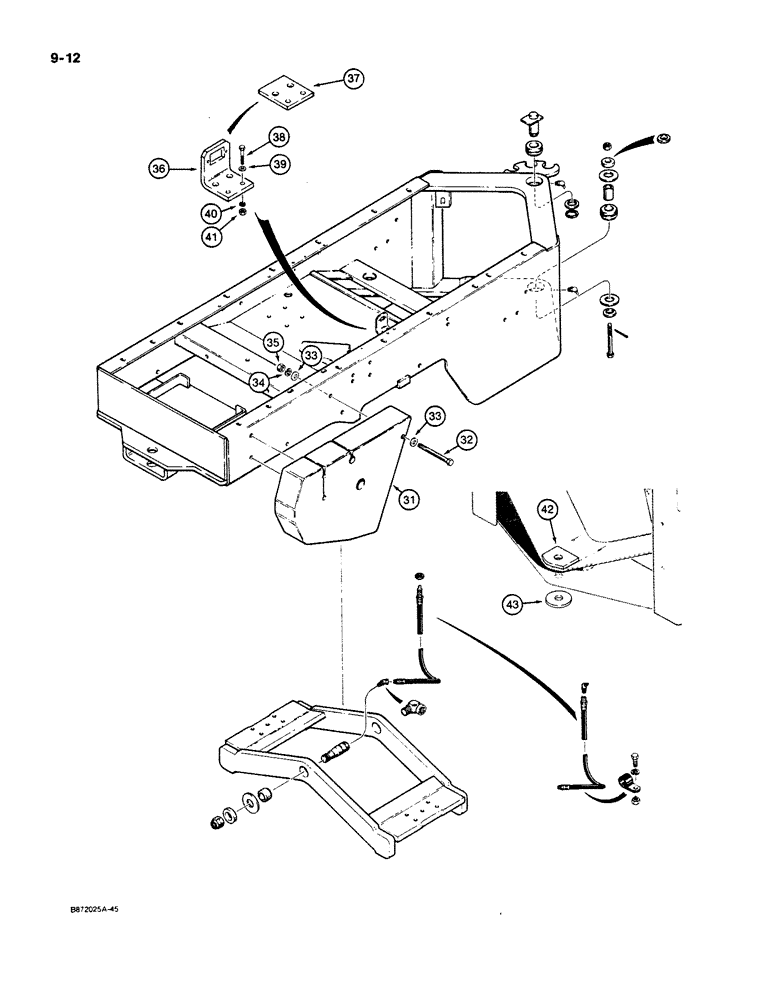

Запчасти Case W11B (9-012) - REAR FRAME AND TRUNNION (09) - CHASSIS/ATTACHMENTS

31

L118325

WEIGHT

COUNTERWEIGHT - rear

2шт.

32

113-728

BOLT,Hex, 3/4" - 10 x 6-1/2", Gr 5

6шт.

33

L79179

WASHER

- flat, hardened

12шт.

34

192-27

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

6шт.

35

129-108

NUT,3/4"-10, G5

6шт.

36

L114844

BRACKET

- grease hose mounting, used on models with hourmeter, if used

1шт.

37

L117907

BRACKET

- grease hose mounting, used on models without hourmeter, if used

1шт.

38

113-4

BOLT,Hex, 1/4" - 20 x 1", Gr 5

2шт.

39

195-102

WASHER,1/4"

- flat, 5/16 x 3/4 x 1/16 inch

2шт.

40

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

41

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

2шт.

42

L117170

LARGE PLATE

PLATE - welds to upper plate of lower articulation joint on front chassis, if used

1шт.

Part of kit, P/N L36301

1шт.

43

L117192

BOSS

- welds to lower plate of lower articulation joint on front chassis, if used

1шт.

Part of kit, P/N L36301

1шт.

L36301

JOINT

KIT - repair, lower articulation joint, used if front chassis has no bosses welded on lower mounting plates, Includes: Ref. 42, 43, and an instruction sheet

1шт.
