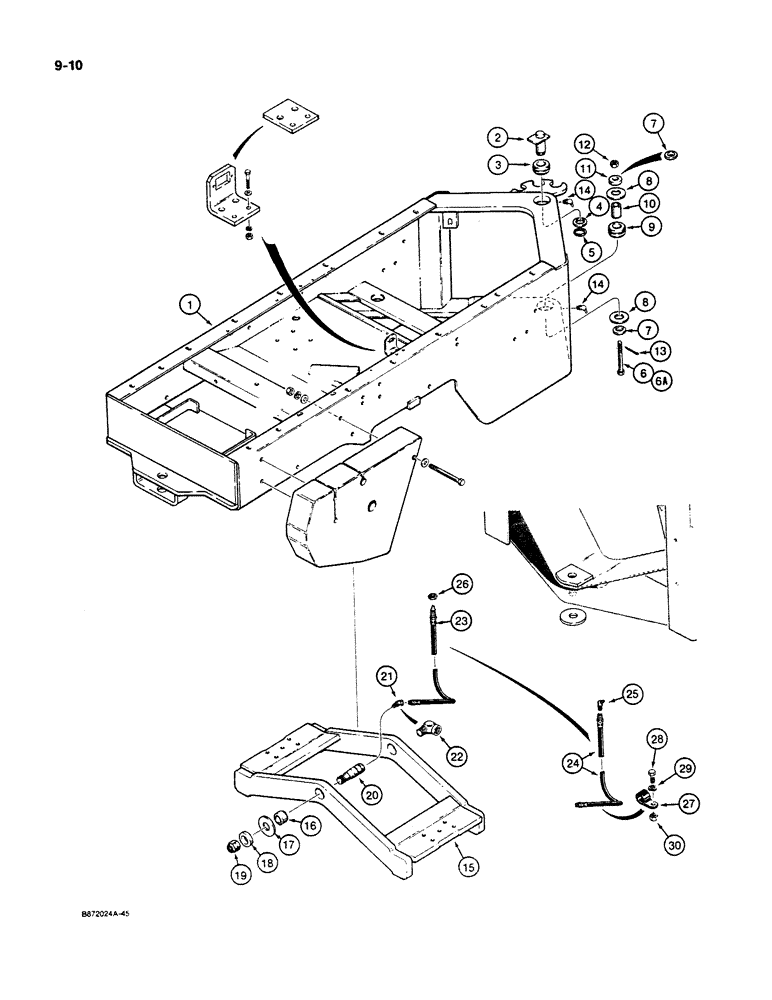

Запчасти Case W11B (9-010) - REAR FRAME AND TRUNNION (09) - CHASSIS/ATTACHMENTS

1

L115416

CHASSIS

FRAME - rear, used on models with Funk transmission

1шт.

1a

L118102

CHASSIS

FRAME - rear, used on models with Clark transmission

1шт.

2

L74169

PIN,38.1mm OD x 102.62mm L

- upper

1шт.

3

L74160

BEARING

- self-aligning

2шт.

4

195-2142

WASHER,1 17/32" x 2 1/16" x .109"

- flat, 1-1/2"

1шт.

5

T37909

SNAP RING,#150, Ext

Ring, Snap, #150, Ext

1шт.

6

L113899

BOLT

- hex head, 1" - 8 NC x 5-1/2", grade 8, used on models without welded bosses on front chassis lower mounting plates, if used

1шт.

6a

L117197

BOLT

- hex head, 1" - 8 NC x 6-1/2", grade 8, used on models with welded bosses on front chassis lower mounting plates, if used

1шт.

7

L111089

WASHER,26.42mm ID x 63.5mm OD x 6.35mm Thk

- special, 2-1/2" OD x 1/4" thick, one used with Ref. 6 bolt, two used with Ref. 6A bolt

1-2шт.

8

L110896

WASHER,45.21mm ID x 85.85mm OD x 8.43mm Thk

SPACER - washer, 3-3/8" OD

2шт.

9

S229376

SPHERICAL BEARING,44.44mm ID x 71.44mm OD x 38.89mm W

BEARING - self-aligning

1шт.

10

L111090

SPACER

- tube

1шт.

11

L51051

WASHER,26.92mm ID x 63.5mm OD x 12.7mm Thk

- special, 2-1/2" OD x 1/2" thick, replace with one Ref. 7 washer if used with Ref. 6A bolt

1шт.

12

129-185

NUT,1"-8, G8

- hex, 1" - 8 NC, special

1шт.

13

132-345

COTTER PIN,3/16" x 1 1/2"

PIN, SPLIT (COTTER), 3/16" x 1 1/2"

1шт.

14

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

FITTING - grease, 45 degree, 1/8 inch PT

2шт.

15

L74223

TRUNNION

- rear frame, Includes: Ref. 16

1шт.

16

D30933

BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L

- trunnion

2шт.

17

L60775

WASHER

- special, polyethylene, 1/4" (6 mm) thick, if used

1шт.

17

L60774

WASHER

- special, polyethylene, 3/16" (5 mm) thick, if used

1шт.

17

L114089

WASHER

- special, polyethylene, 1/8" (3 mm) thick, if used

1шт.

18

L114063

WASHER

- special

2шт.

19

131-62

LOCK NUT,1 1/7 4"-12

NUT - hex, self-locking, 1-1/4" - 12 NF

2шт.

Use 131-95 nut per S9220-04.

1шт.

20

L116350

PIN,38.1mm OD x 128.52mm L

- trunnion pivot

2шт.

21

219-81

ELBOW,45 Degree, 1/8"-27

- 45 degree, used, Serial Range: -9164337

2шт.

22

219-82

ELBOW,90 Degree, 1/8"-27

- 90 degree, used on, Start Serial: 9164337

2шт.

23

L74161

HOSE,3.56mm ID x 533.4mm L, SAE 100R7

- special, 21" (533 mm) long, used on models, Serial Range: -9154401

2шт.

24

L114211

HOSE,4.83mm ID x 549mm L

, Start Serial: 9154401

2шт.

25

219-37

LUBE NIPPLE,45 Degree Elbow, 1/4" - 28 NPTF

FITTING - straight, lube 1/4 inch

2шт.

26

F53473

LOCK NUT,1/8-27 NPSM

- lubrication hose

2шт.

27

49845

CLAMP

CLIP - retaining

2шт.

28

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

2шт.

29

492-11038

LOCK WASHER,3/8"

2шт.

30

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.
