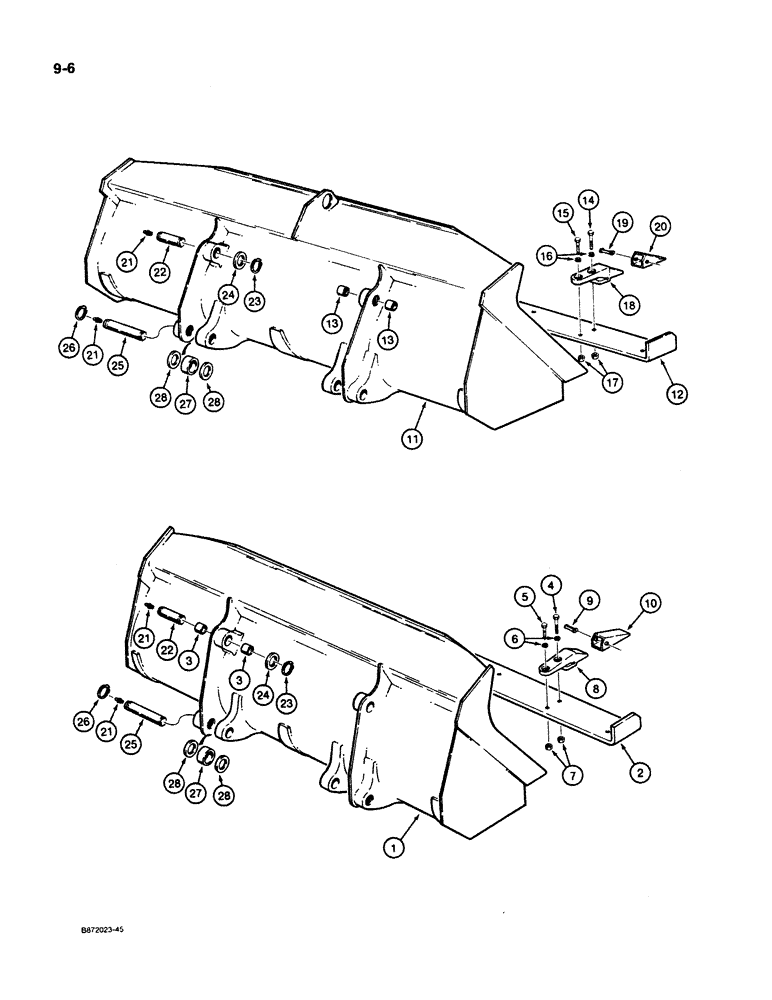

Запчасти Case W11B (9-006) - LOADER BUCKETS, .75 CUBIC YARD (.57 CUBIC METRE) BUCKET, 1 (09) - CHASSIS/ATTACHMENTS

L100105

BUCKET - machinery item, order from Machinery Price List, no longer available, order L127101 when replacing complete bucket, Includes: Ref. 1 - 3

1шт.

Bucket part number is stamped on plate on rear of wrapper. For buckets used with FACT (Fast Attachment Coupler Team) system, service parts must be ordered from American Coupler, Inc.

1шт.

L127101

BUCKET - machinery item, order from Machinery Price List, Includes: Ref. 1 - 3

1шт.

Bucket part number is stamped on plate on rear of wrapper. For buckets used with FACT (Fast Attachment Coupler Team) system, service parts must be ordered from American Coupler, Inc.

1шт.

1

NSS

NOT SOLD SEPARAT

BUCKET - loader

1шт.

2

L76451

EDGE

CUTTING EDGE - bucket

1шт.

3

D31140

BUSHING,38.33mm ID x 47.63mm OD x 25.4mm L

- bucket

4шт.

4

113-620

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

- hex, 5/8 NC x 2-1/4 inch

6шт.

5

113-604

BOLT,Hex, 5/8" - 11 x 2", Gr 5

6шт.

6

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

12шт.

7

425-1010

NUT,5/8"-11, G5

12шт.

L77908

TOOTH

ASSEMBLY - bucket, Includes: Ref. 8 - 10

6шт.

8

NSS

NOT SOLD SEPARAT

SHANK - tooth

1шт.

9

D39094

BUCKET TOOTH KEY

PIN - flex

1шт.

10

D51750

BUCKET TOOTH POINT

POINT - tooth

1шт.

L100104

BUCKET - machinery item, order from Machinery Price List, no longer available, order L127102 when replacing complete bucket, 1 cubic yard (.76 cubic metre) bucket, Includes: Ref. 11 - 13

1шт.

Bucket part number is stamped on plate on rear of wrapper. For buckets used with FACT (Fast Attachment Coupler Team) system, service parts must be ordered from American Coupler, Inc.

1шт.

L127102

BUCKET - machinery item, order from Machinery Price List, 1 cubic yard ( .76 cubic metre) bucket, Includes: Ref. 11 - 13

1шт.

Bucket part number is stamped on plate on rear of wrapper. For buckets used with FACT (Fast Attachment Coupler Team) system, service parts must be ordered from American Coupler, Inc.

1шт.

11

NSS

NOT SOLD SEPARAT

BUCKET - loader, 1 cubic yard (.76 cubic metre) bucket

1шт.

12

L107436

EDGE

CUTTING EDGE - bucket, used with L100104 bucket, 1 cubic yard (.76 cubic metre) bucket

1шт.

12

L73922

EDGE

CUTTING EDGE - bucket, used with L127102 bucket, 1 cubic yard (.76 cubic metre) bucket

1шт.

NO BOLT ON EDGES AVAILABLE FOR W11B.

1шт.

REF: 12A CUTTING EDGE BUCKET 80 1/4 " IN LENGTH (MEASURED INSIDE WRAP=UPS)

1шт.

WELD EDGE NOT BOLTED EDGES.

1шт.

13

D31140

BUSHING,38.33mm ID x 47.63mm OD x 25.4mm L

- bucket, 1 cubic yard (.76 cubic metre) bucket

4шт.

14

113-620

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

- hex, 5/8 NC x 2-1/4 inch, 1 cubic yard (.76 cubic metre) bucket

7шт.

15

113-604

BOLT,Hex, 5/8" - 11 x 2", Gr 5

1 cubic yard (.76 cubic metre) bucket Hex, 5/8"-11 x 2", G5

7шт.

16

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, , 1 cubic yard (.76 cubic metre) bucket 5/8"

14шт.

17

425-1010

NUT,5/8"-11, G5

1 cubic yard (.76 metre) bucket 5/8"-11, G5

14шт.

L77908

TOOTH

ASSEMBLY - bucket, 1 cubic yard (.76 cubic metre) bucket, Includes: Ref. 18 - 20

7шт.

18

NSS

NOT SOLD SEPARAT

SHANK - tooth, 1 cubic yard (.76 cubic metre) bucket

1шт.

19

D39094

BUCKET TOOTH KEY

PIN - flex, 1 cubic yard (.76 cubic metre) bucket

1шт.

20

D51750

BUCKET TOOTH POINT

POINT - tooth, 1 cubic yard (.76 cubic metre) bucket

1шт.

21

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch long, bucket mounting pins

4шт.

22

D40037

PIN,38.1mm OD x 127mm L

- upper, bucket mounting pins

2шт.

23

D25279

SNAP RING,M35, Int

- pin retaining, bucket mounting pins

4шт.

24

A12089

WASHER,38.89mm ID x 76.2mm OD x 1.9mm Thk

SPACER - washer, bucket mounting pins

1шт.

25

L113494

PIN,44.45mm OD x 208.28mm L

- lower, bucket mounting pins

2шт.

26

D25280

SNAP RING,#175, Ext

Ring, Snap, , bucket mounting pins #175, Ext

4шт.

27

L77785

SPACER

- loader frame, bucket mounting pins

2шт.

28

D27770

WASHER

- special, bucket mounting pins

1шт.
