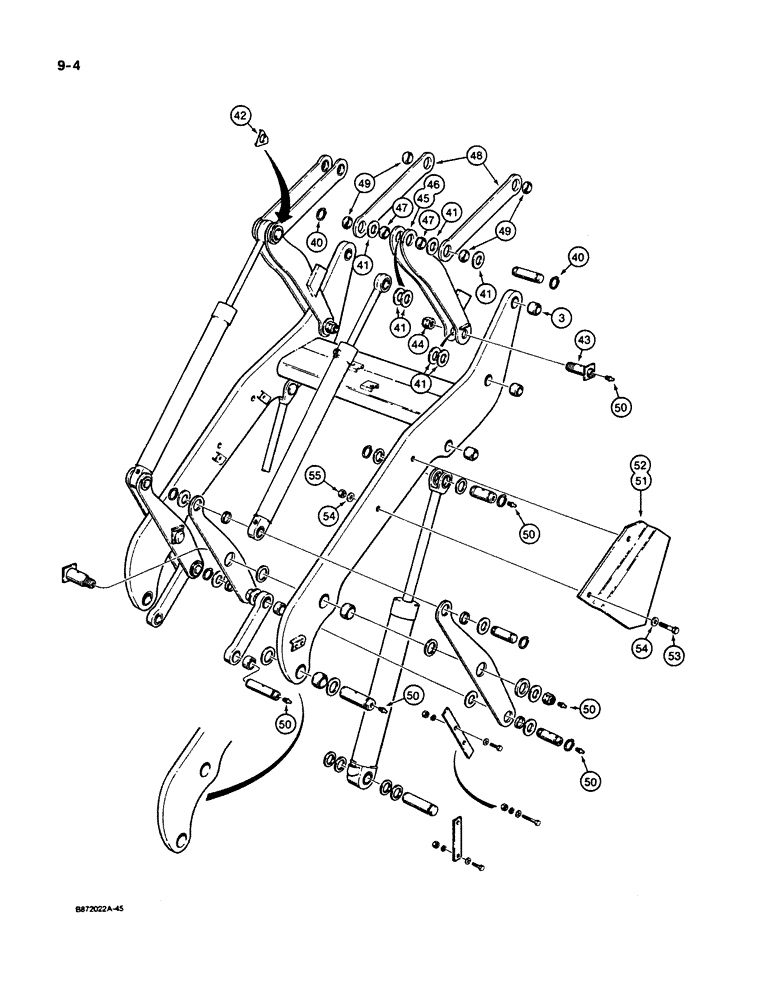

Запчасти Case W11B (9-004) - LOADER LIFT COMPONENTS (09) - CHASSIS/ATTACHMENTS

40

D25279

SNAP RING,M35, Int

- pin retaining

4шт.

41

A12089

WASHER,38.89mm ID x 76.2mm OD x 1.9mm Thk

SPACER - washer

1шт.

42

L100090

INDICATOR

- bucket, if used

1шт.

43

L74098

PIN

- threaded

2шт.

44

131-53

NUT,1 1/2"-12

NUT - hex, self-locking, 1-1/2" - 12 NF, plated

2шт.

45

L79709

LINK

- right-hand, guide

1шт.

46

L79710

LINK

- left-hand, guide, Includes: Ref. 47

1шт.

47

D33127

BUSHING,38.33mm ID x 47.63mm OD x 12.7mm L

L79709 and L79710 link

2шт.

48

L100089

LINK

- bucket, Includes: Ref. 49

3-4шт.

49

D33127

BUSHING,38.33mm ID x 47.63mm OD x 12.7mm L

2шт.

50

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch long

16шт.

51

L77845

PLATE

GUARD - right-hand, lift cylinder

1шт.

52

L77846

PLATE

GUARD - left-hand, lift cylinder

1шт.

53

113-716

BOLT,Hex, 3/4" - 10 x 3", Gr 5

4шт.

54

L79179

WASHER

- flat, hardened

8шт.

55

129-108

NUT,3/4"-10, G5

4шт.
