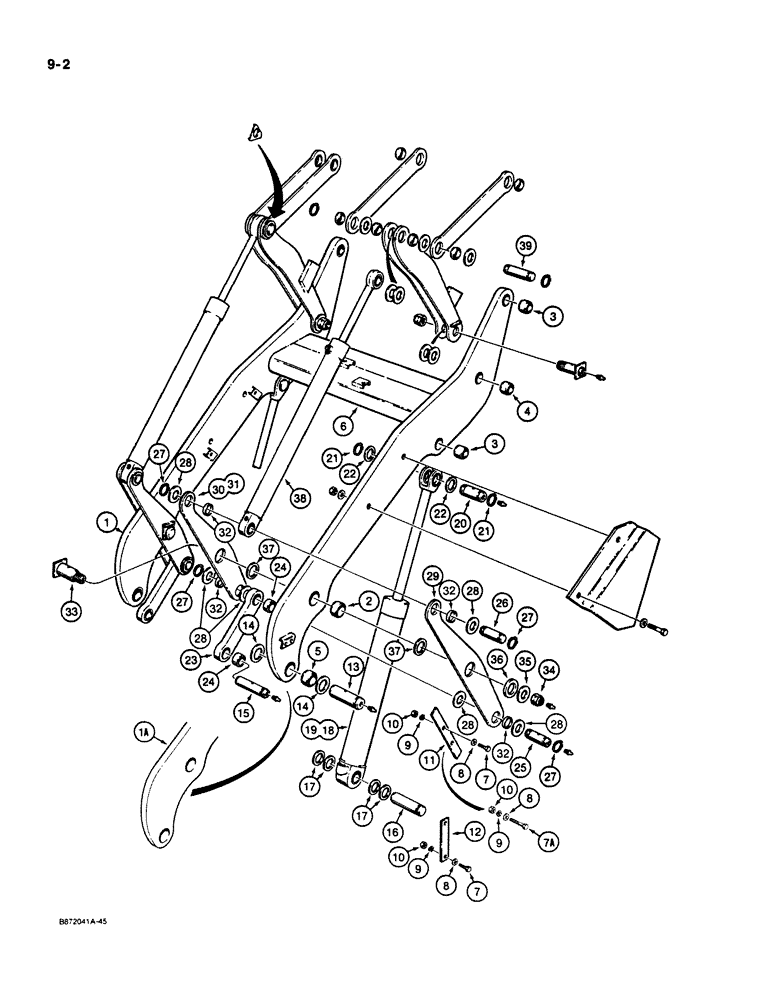

Запчасти Case W11B (9-002) - LOADER LIFT COMPONENTS (09) - CHASSIS/ATTACHMENTS

1

L115739

LIFT ARM

FRAME - loader lift, used on models, no longer available, order (1) L118024 frame, Ref. 1A and (1) L118023 bracket, Ref. 2A, Figure 8-65, Serial Range: -9162788

1шт.

1a

L118024

ARM

FRAME - loader lift, used on models, Includes: Ref. 2 - 6, Start Serial: 9162788

1шт.

2

D30756

BUSHING,51.02mm ID x 63.5mm OD x 31.8mm L

- at bellcrank

2шт.

3

L113445

BUSHING

- at lift cylinder and bucket

4шт.

4

D30933

BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L

- at guide link

2шт.

5

L77542

BUSHING

- at main frame

2шт.

6

L111336

PLATE

BRACE - center, welds between loader lift frame arms

1шт.

7

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

6-8шт.

7a

113-421

BOLT,Hex, 1/2" - 13 x 2", Gr 5

2шт.

8

495-21056

WASHER,1/2"

- flat, 9/16 x 1-3/8 x 3/32 inch

8шт.

9

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

8шт.

10

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

8шт.

11

L77538

PLATE

- pin lock

1-2шт.

12

L77539

PLATE

- pin lock

2шт.

13

L77535

PIN

- loader frame to main frame

2шт.

14

195-2155

WASHER,2 1/16" x 3" x .109"

- flat, 2", used as a spacer

1шт.

15

L77536

PIN

- link to main frame

2шт.

16

L77534

PIN

- lift cylinder to main frame

2шт.

17

D27770

WASHER

- special

8шт.

18

G101052

CYLINDER ASSY.

CYLINDER - lift, right-hand, parts list Figure 8-36

1шт.

19

G101053

CYLINDER ASSY.

CYLINDER - lift, left-hand, parts list Figure 8-36

1шт.

20

D34658

PIN,44.45mm OD x 101.6mm L

- lift cylinder to lift frame

2шт.

21

D25280

SNAP RING,#175, Ext

Ring, Snap, #175, Ext

4шт.

22

195-2181

WASHER,1 13/16" x 2 1/2" x .238"

- flat, 1-3/4"

4шт.

23

L73948

LINK ASSY.

LINK - bellcrank to main frame, Includes: Ref. 24

2шт.

24

D30933

BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L

- link

2шт.

25

D34656

PIN,38.1mm OD x 101.6mm L

-, Serial Range: bellcrank-link

2шт.

26

D44840

PIN

- bellcrank to bucket cylinder

2шт.

27

D25279

SNAP RING,M35, Int

- pin retaining

8шт.

28

A12089

WASHER,38.89mm ID x 76.2mm OD x 1.9mm Thk

SPACER - washer

1шт.

29

L78738

ARM ASSY.

BELLCRANK ASSEMBLY - outer, Includes: Ref. 32

2шт.

30

L78736

ARM ASSY.

BELLCRANK ASSEMBLY - right-hand inner, Includes: Ref. 32

1шт.

31

L78737

ARM ASSY.

BELLCRANK ASSEMBLY - left-hand inner, Includes: Ref. 32

1шт.

32

L74094

BUSHING,38.33mm ID x 47.63mm OD x 15.75mm L

- bellcranks, top and bottom holes of Refs. 29, 30 and 31

2шт.

33

L73955

PIN

- bellcrank to lift frame

2шт.

34

131-53

NUT,1 1/2"-12

NUT - hex, self-locking, 1-1/2" - 12 NF, plated

2шт.

35

A12089

WASHER,38.89mm ID x 76.2mm OD x 1.9mm Thk

SPACER - washer

1шт.

36

L76643

SPACER

WASHER - special

2шт.

37

D34668

WASHER,52.39mm ID x 76.2mm OD x 3.57mm Thk

- special

4шт.

38

G101054

CYLINDER

- bucket, parts list Figure 8-38

2шт.

39

D32930

PIN,38.1mm OD x 127mm L

- bucket cylinder, rod end

2шт.
