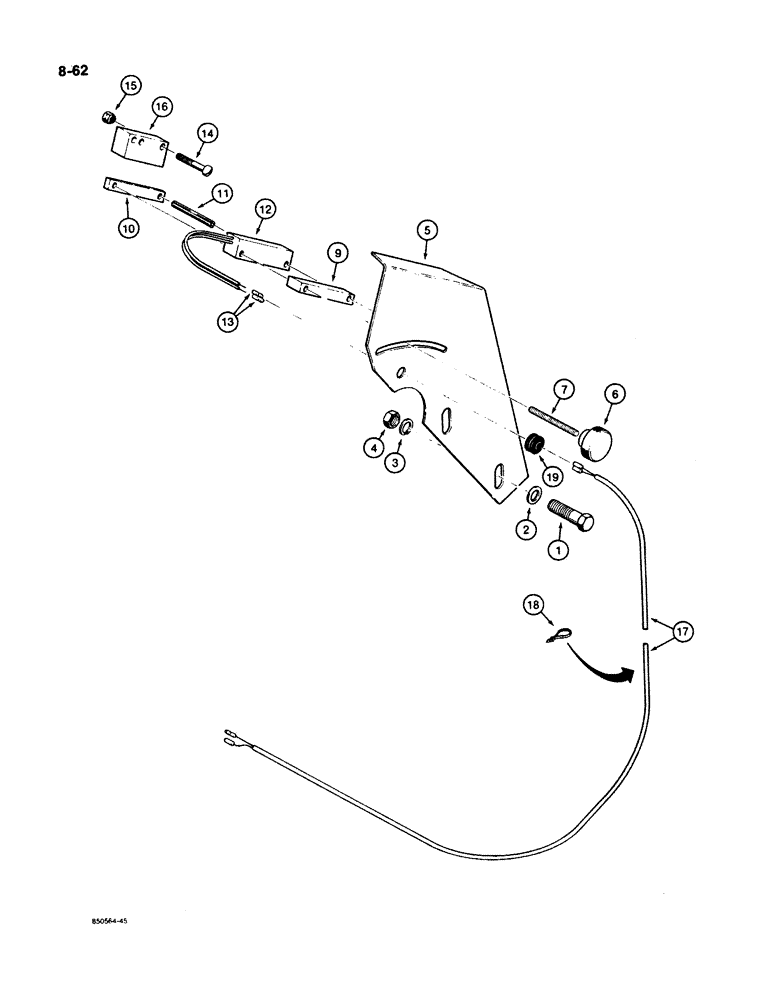

Запчасти Case W11B (8-062) - LOADER HEIGHT CONTROL COMPONENTS, BEFORE P.I.N. 9158252 (08) - HYDRAULICS

1

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

2шт.

2

495-21056

WASHER,1/2"

- flat, 9/16 x 1-3/8 x 3/32 inch

2шт.

3

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

4

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

5

L79073

PLATE

- switch mounting

1шт.

L79129

KNOB

ASSEMBLY - adjustment control, Includes: Ref. 6 - 8

1шт.

6

NSS

NOT SOLD SEPARAT

KNOB - adjustment control

1шт.

7

NSS

NOT SOLD SEPARAT

STUD - adjustment control knob

1шт.

8

B17500

LOCTITE

- high strength, Stud Lock 271, 6 ml tube, not shown

1шт.

9

L78924

SPACER

- switch

1шт.

10

L78926

PLATE

- switch, Includes: Ref. 11

1шт.

11

138-143

LOCK PIN,1/4" x 2 1/4", Slotted

PIN, 1/4" x 2 1/4", Slotted

1шт.

12

L74809

SWITCH

- loader height control

1шт.

13

L10051

TERMINAL CONNECTOR,Male

TERMINAL - bullet style

2шт.

14

71-424

SCREW

- slotted, 1/4" - 20 NC x 1-1/2"

2шт.

15

86625061

NUT,1/4"-20, GB

NUT - hcx lock, 1/4 inch NC

2шт.

16

L113707

MAGNET

- return-to-dig

1шт.

17

L77347

HARNESS

- loader height control

1шт.

18

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

19

A23870

GROMMET

- harness

1шт.
