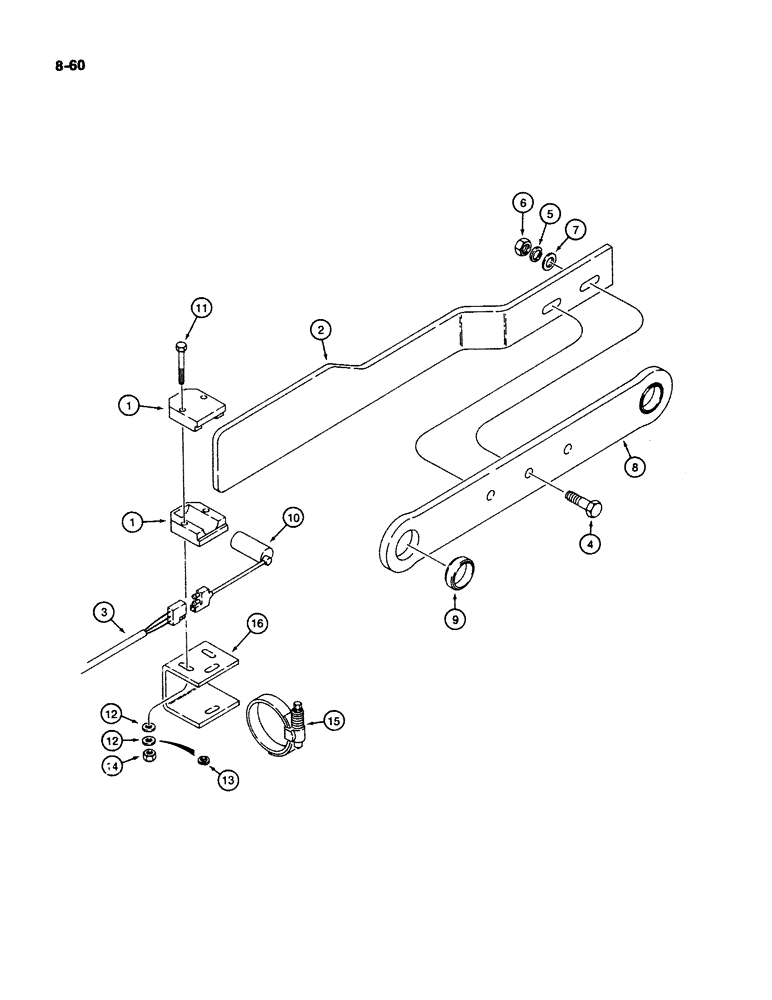

Запчасти Case W11B (8-060) - RETURN-TO-DIG, P.I.N. 9158252 AND AFTER (08) - HYDRAULICS

1

L117005

CLAMP

- return-to-dig switch

2шт.

2

L116453

BAR

- return-to-dig

1шт.

3

L115393

HARNESS

- return-to-dig, used on models P.I.N. 9158252 - 9158303

1шт.

4

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

2шт.

5

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

6

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

7

R24718

WASHER

- flat, hardened, 1/2"

2шт.

8

L116441

LINK

- dump assembly, Includes: Ref. 9

1шт.

9

D33127

BUSHING,38.33mm ID x 47.63mm OD x 12.7mm L

- dump assembly link

2шт.

10

R47120

SWITCH

- return-to-dig

1шт.

11

113-15

BOLT,Hex, 1/4" - 20 x 2-1/4", Gr 5

- hex, 1/4 NC x 2-1/4 inch

2шт.

12

195-102

WASHER,1/4"

- flat, 5/16 x 3/4 x 1/16 inch

4шт.

13

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

14

131-2

NUT,1/4"-20, GB

NUT, , NC 1/4"-20, GB

2шт.

15

L115549

CLAMP,69.85mm - 92.08mm

- hose

1шт.

16

L116439

BRACKET

- switch mounting

1шт.
