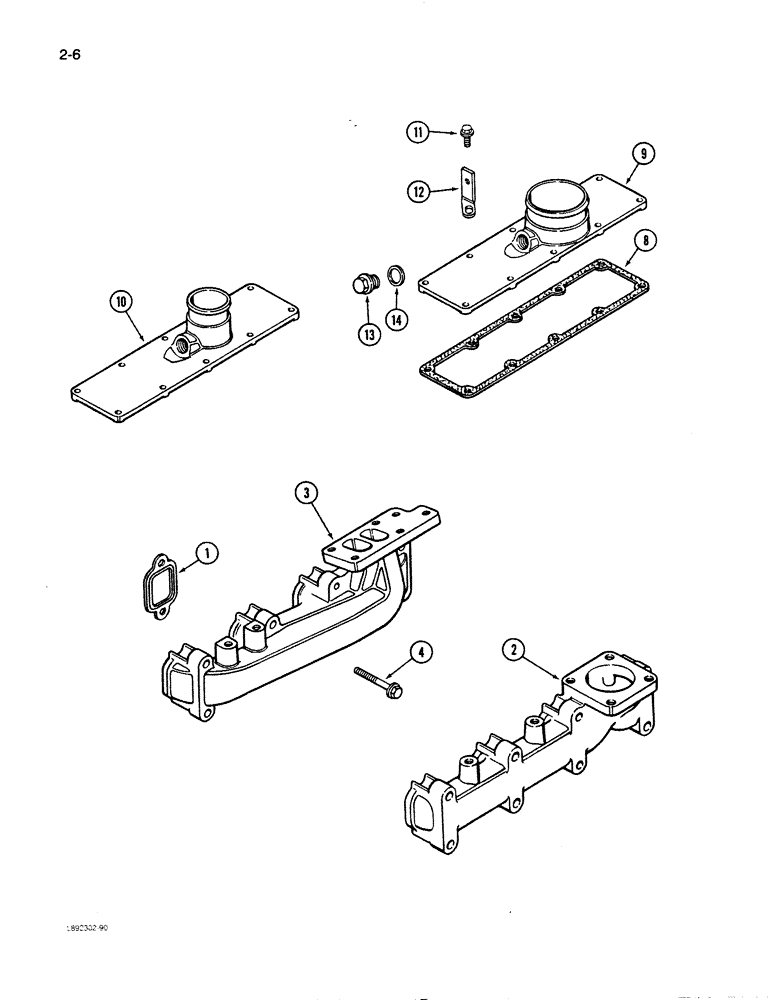

Запчасти Case W11B (2-006) - MANIFOLDS, EXHAUST, 4-390 ENGINE, 4T-390 ENGINE, INTAKE (02) - ENGINE

1

J905443

MANIFOLD GASKET

- exhaust manifold

4шт.

2

J901223

MANIFOLD

- exhaust (Natural Aspirated)

1шт.

3

J901919

MANIFOLD

- exhaust (Turbocharged)

1шт.

4

J901448

FLANGE BOLT,Hex, M10 x 65mm

BOLT - hex flange, 10 mm - 1.50 x 70 mm (Replaces J904446)

8шт.

8

J914028

GASKET

- intake manifold (Replaces J901999), intake

1шт.

9

NSS

NOT SOLD SEPARAT

MANIFOLD - intake (Natural Aspirated) (Order A77415 kit), intake

1шт.

10

NSS

NOT SOLD SEPARAT

MANIFOLD - intake (Turbocharged) (Order A77416 kit), intake

1шт.

11

J904341

BOLT,M6 x 1 x 35mm, Cl 8.8

- intake manifold, intake

10шт.

12

NSS

NOT SOLD SEPARAT

BRACE - fuel tube (See Figures 3-7, 3-9, 3-11), intake

1шт.

13

J907185

PLUG

ASSEMBLY - manifold, intake

1шт.

14

J906773

WASHER

- plug sealing, intake

1шт.

A77415

COVER

KIT - intake manifold (Natural aspirated) (Includes: Refs. 9, 13 and 14), intake

1шт.

A77416

COVER

KIT - intake manifold (Turbocharged) (Includes: Refs. 10, 13 and 14), intake

1шт.
