Запчасти Case W11B (8-056) - THREE SPOOL LOADER CONTROL VALVE AND LEVERS (08) - HYDRAULICS

1

REF

INSTRUCTION

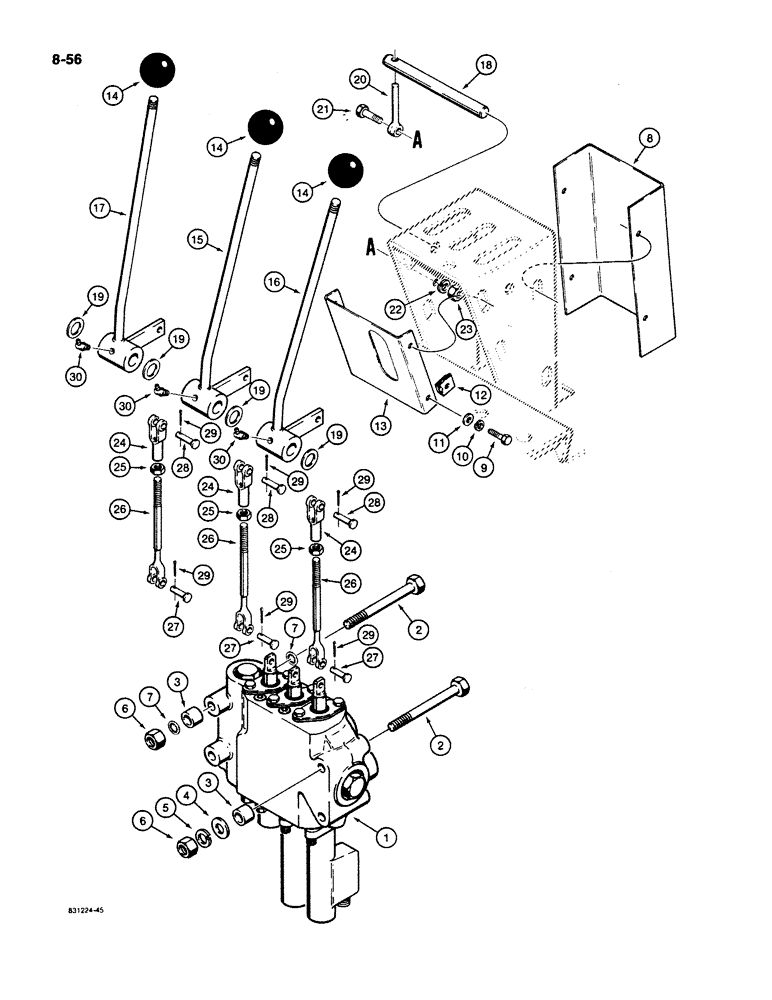

CONTROL VALVE - 3 spool, parts list Figure 8-44

1шт.

2

113-429

BOLT,Hex, 1/2" - 13 x 5", Gr 5

3шт.

3

T30946

BUSHING

SPACER - handle, 1/2 inch

3шт.

4

495-21056

WASHER,1/2"

- flat, 9/16 x 1-3/8 x 3/32 inch

2шт.

5

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

6

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

3шт.

7

193-77

LOCK WASHER,Int Tooth, 1/2"

WASHER, LOCK, Int Tooth, 1/2"

2шт.

8

L107490

COVER

CONSOLE - control valve levers

1шт.

9

113-4

BOLT,Hex, 1/4" - 20 x 1", Gr 5

4-8шт.

10

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

4-8шт.

11

195-102

WASHER,1/4"

- flat, 5/16 x 3/4 x 1/16 inch

4-8шт.

12

131-646

SPRING NUT,Tinn, U, 1/4"-20

- U-type, 1/4" - 20 NC

4-8шт.

13

L107489

COVER

- console, cab models

1шт.

14

A23885

KNOB

- ball, 1/2" - 13 NC

3шт.

15

L78734

LEVER

CONTROL LEVER - bucket, 1/2" diameter

1шт.

16

L78729

LEVER

CONTROL LEVER - loader lift, 1/2" diameter

1шт.

17

L78730

LEVER

CONTROL LEVER - auxiliary, 1/2" diameter

1шт.

18

L78279

PIN

SHAFT - lever

1шт.

19

A30881

SEALING WASHER,19.45mm ID x 31.35mm OD

WASHER - spacer

1шт.

20

L74982

END

PIN - shaft

1шт.

21

413-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

- hex, 5/16 NC x 1-1/4 inch

1шт.

22

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

1шт.

23

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

1шт.

24

213-4

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

CLEVIS - 3/8"

3шт.

25

86585245

SPECIAL NUT,JAM, 5/8" - 18

- hex jam, 3/8 inch NF

3шт.

26

L113578

ROD

-, Serial Range: lever-valve

3шт.

27

141-3

CLEVIS PIN,5/16" x .940"

PIN, CLEVIS, 5/16" x .940"

3шт.

28

141-4

CLEVIS PIN,3/8" x 1.060"

PIN, CLEVIS, 3/8" x 1.060"

3шт.

29

132-320

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

6шт.

30

219-89

LUBE NIPPLE,45 Degree Elbow, 1/8" NPTF

GREASE FITTING - 45º, 1/8" NPT

3шт.

31

L78085

SEAL

- foam, console, left-hand side, cab models, not shown

1шт.

32

L79122

SEAL

- foam, console, right-hand side, cab models, not shown

1шт.

345-44

ADHESIVE

- spray can, 19-1/2 fluid ounces, for attaching foam pads to metal surfaces

1шт.
