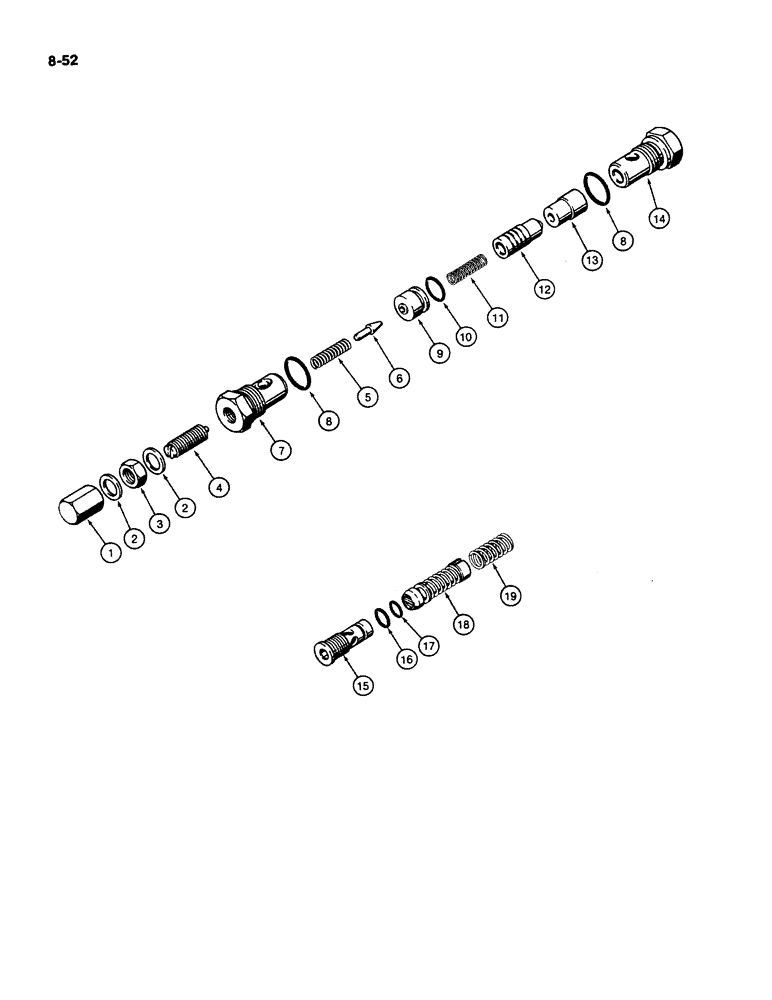

Запчасти Case W11B (8-052) - LOADER CONTROL VALVE, RELIEF VALVES, MAIN RELIEF VALVE (08) - HYDRAULICS

1

L32299

NUT

DOME NUT - hex

1шт.

2

D26763

WASHER

- special

2шт.

3

129-165

JAM NUT,Jam, 1/2"-20, G5

1шт.

4

L32298

ADJUSTMENT SCREW,1/2" - 20 x 1.50"

- special, 1/2" - 18 NF

1шт.

5

D24763

SPRING

- plunger

1шт.

6

D24762

VALVE

PLUNGER - main relief valve

1шт.

7

D82718

BODY

CAP - valve

1шт.

8

A42597

O-RING,0.734" ID x 1.012" OD x 0.139"

- cap and plug

2шт.

9

D82716

VALVE

SEAT - plunger

1шт.

10

A7982

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

- 5/8 x 13/16 inch

1шт.

11

D82724

SPRING

- poppet

1шт.

12

D72745

VALVE

POPPET - main relief valve

1шт.

13

D82715

VALVE

SEAT - poppet

1шт.

14

D82719

PLUG

- main relief valve

1шт.

N7100

LOCK VALVE

CIRCUIT RELIEF VALVE ASSEMBLY - A port, bucket spool, Includes: Ref. 15 - 19

1шт.

N6716

VALVE

CIRCUIT RELIEF VALVE ASSEMBLY - B port bucket spool; A and B port, auxiliary spool, Includes: Ref. 15 - 19

1шт.

PREVENT LOGGING FORKS FROM CREEPING FORWARD AND PRE-MATURELY DUMPING THEIR LOAD. THE CIRCUIT RELIEF VALVE ASSY PART # IS N6716.

1шт.

N6716 PLUG GOES INTO "B" PORT IN LIEU OF THE CIRCUIT RELIEF VALVE ASSY TO

1шт.

15

N6717

PLUG

- seat, 7/16" (11 mm) diameter end hole, L104937 and L104938 loader control valve, circuit relief valve

1шт.

16

D24754

GASKET

O-RING - outer, L104937 and L104938 loader control valve, circuit relief valve

1шт.

17

N7330

O-RING

- inner, L104937 and L104938 loader control valve, circuit relief valve

1шт.

18

NSS

NOT SOLD SEPARAT

CARTRIDGE ASSEMBLY - circuit relief valve, L104937 and L104938 loader control valve

1шт.

19

N6594

VALVE SPRING

SPRING - inner, L104937 and L104938 loader control valve, circuit relief valve

1шт.
