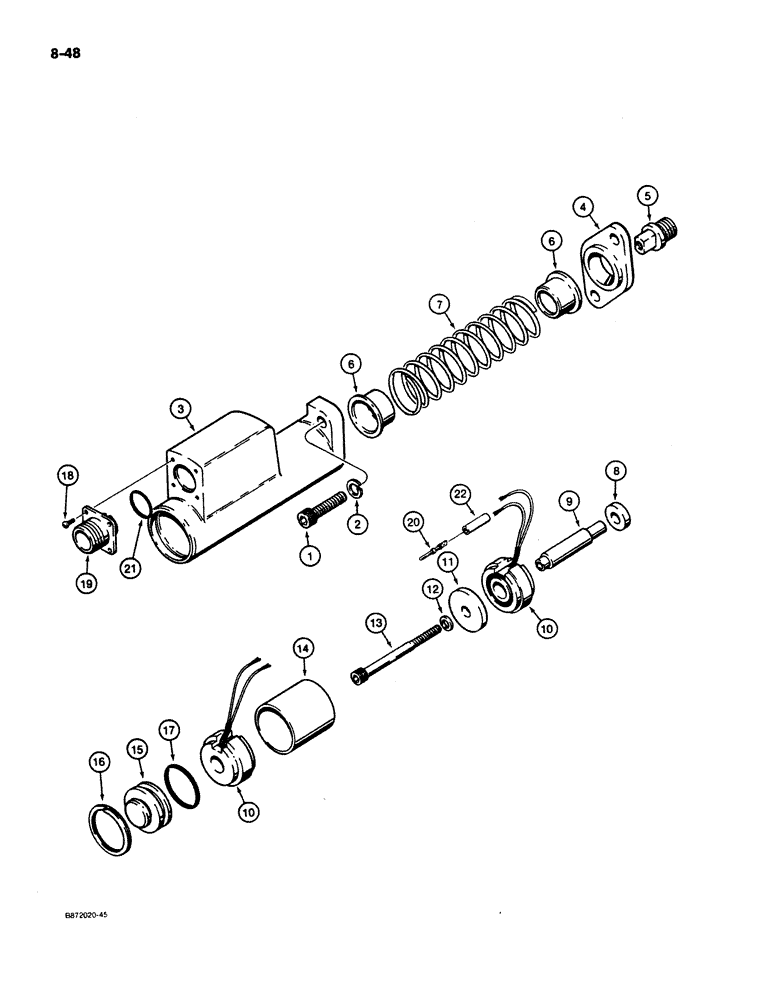

Запчасти Case W11B (8-048) - LOADER CONTROL VALVE, LIFT SPOOL DETENT (08) - HYDRAULICS

D80680

DETENT

ASSEMBLY - lift spool, Includes: Ref. 1 - 22

1шт.

1

61-520

HEX SOC SCREW,5/16"-18 x 1 1/4"

BOLT - hex socket head, 5/16" - 18 NC x 1-1/4"

2шт.

2

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

3

N9063

COVER ASSY

COVER - detent

1шт.

4

D80682

PLATE

- retaining

1шт.

5

D80681

PLUG

- spool end

1шт.

6

D24777

COLLAR

SEAT - spring

2шт.

7

D80692

SPRING

CENTERING SPRING - spool

1шт.

8

D80685

SPACER

- washer

1шт.

9

D80687

SPACER

- tube

1шт.

10

D80688

SOLENOID

COIL - magnetic detent

2шт.

11

D80689

ARMATURE

WASHER - magnetic detent

1шт.

12

D80686

SPACER

- small

1шт.

13

61-448

HEX SOC SCREW,1/4"-20 x 3"

BOLT - hex socket head, 1/4" - 20 NC x 3"

1шт.

14

D80684

SPACER

- sleeve

1шт.

15

D80683

PLUG

- end

1шт.

16

D80691

SNAP RING,#150, 1.567, Int, Spiral

RING - retaining

1шт.

17

A27577

O-RING,0.139" Thk x 1.234" ID, -218, Cl 5, 75 Duro

- 1-1/4 ID x 1/8 inch

1шт.

18

187-1709

SELF-TAP SCREW,Slotted Pan Hd, #4 x 3/8"

SCREW - self-tapping, No. 4 - 40 NC x 3/8"

4шт.

19

N8748

CONTAINER

CONNECTOR - electric receptacle

1шт.

20

N7173

TERMINAL STRIP

CONNECTOR - wire, pin type

4шт.

21

S16824

O-RING,0.07" Thk x 0.801" ID, -19, Cl 5, 75 Duro

- connector

1шт.

22

D83095

ELECTRICAL WIRE

CONNECTOR - wire

4шт.
