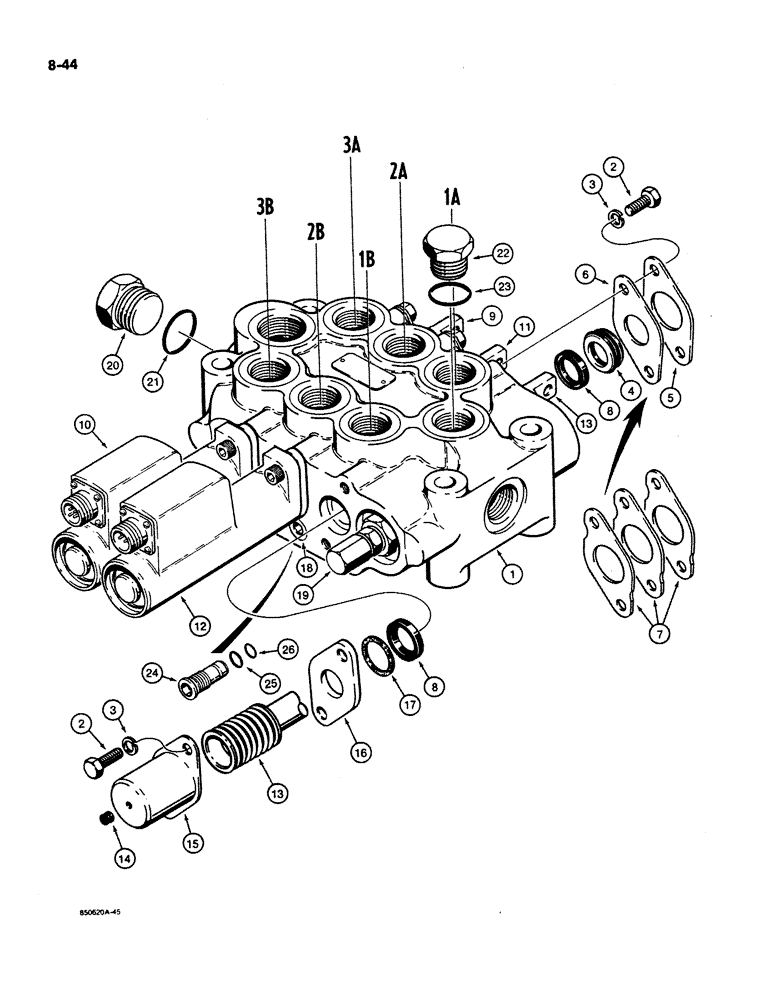

Запчасти Case W11B (8-044) - THREE SPOOL LOADER CONTROL VALVE (08) - HYDRAULICS

L104938

VALVE

CONTROL VALVE - loader, three spool, Hydreco No. MVT024DRF20, Includes: Ref. 1 - 26

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - control valve

1шт.

2

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

8шт.

3

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

8шт.

4

D82728

RING

WIPER - spool

3шт.

5

D82721

PLATE

- retaining, outer, used with Ref. 6 plate, no longer available, replace with Ref. 7 plate

3шт.

6

D82720

PLATE ASSY.

PLATE - retaining, inner, used with Ref. 5 plate, no longer available, replace with Ref. 7 plate

3шт.

7

N8212

PLATE ASSY.

PLATE - retaining

3шт.

8

D82727

SEAL

- spool

6шт.

9

REF

INSTRUCTION

SPOOL ASSEMBLY - lift, parts list Figure 8-46

1шт.

10

D80680

DETENT

ASSEMBLY - lift parts list Figure 8-48

1шт.

11

REF

INSTRUCTION

SPOOL ASSEMBLY - bucket tilt, parts list Figure 8-46

1шт.

12

D80693

DETENT

ASSEMBLY - bucket tilt, parts list Figure 8-50

1шт.

13

REF

INSTRUCTION

SPOOL ASSEMBLY - auxiliary, parts list Figure 8-46

1шт.

14

D83096

PLUG

- cover

1шт.

15

D24779

COVER

- auxiliary spool

1шт.

16

D82722

PLATE

- retaining

1шт.

17

D82723

BACK-UP RING

RING - back-up

1шт.

18

REF

INSTRUCTION

CIRCUIT RELIEF VALVE ASSEMBLY - parts list Figure 8-52

4шт.

19

REF

INSTRUCTION

MAIN RELIEF VALVE ASSEMBLY - parts list Figure 8-52

1шт.

20

273916

PLUG,Hex, 1-5/16" - 12 ORB

Assy, Includes Ref. 21 Hex Hd, 1 5/16"-12 ORB

1шт.

21

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- 1-11/16 x 1-13/32 x 1/8 inch

1шт.

22

218-5158

PLUG,Hex Hd, 1 1/16"-12 ORB

ASSEMBLY - hex, 3/4 tube 1-1/16-12 inch thread, Includes: Ref. 23

1шт.

23

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- 59/64 ID x 7/8 inch wide

1шт.

N14644

PLUG

ASSEMBLY - logging fork, used in place of Ref. 18, N6716 circuit relief, as a service option, Includes: Ref. 24 - 26

1шт.

IS N6716 AND IS SHOWN ON FIGURE 8-52 REF; ECS D3087-213 FOR DETAILS

1шт.

KEEP LOGGING FORKS FROM CREEPING FORWARD AND PRE-MATURELY DUMPING THEIR LOAD. THE CIRCUIT RELIEF VALVE ASSY PORT

1шт.

N14644 PLUG IS INSTALLED INTO "B" PORT IN PLACE OF THE CIRCUIT RELIEF VALVE ASSY TO

1шт.

24

NSS

NOT SOLD SEPARAT

PLUG - logging fork

1шт.

25

D24754

GASKET

O-RING - outer

1шт.

26

N7330

O-RING

- inner

1шт.
