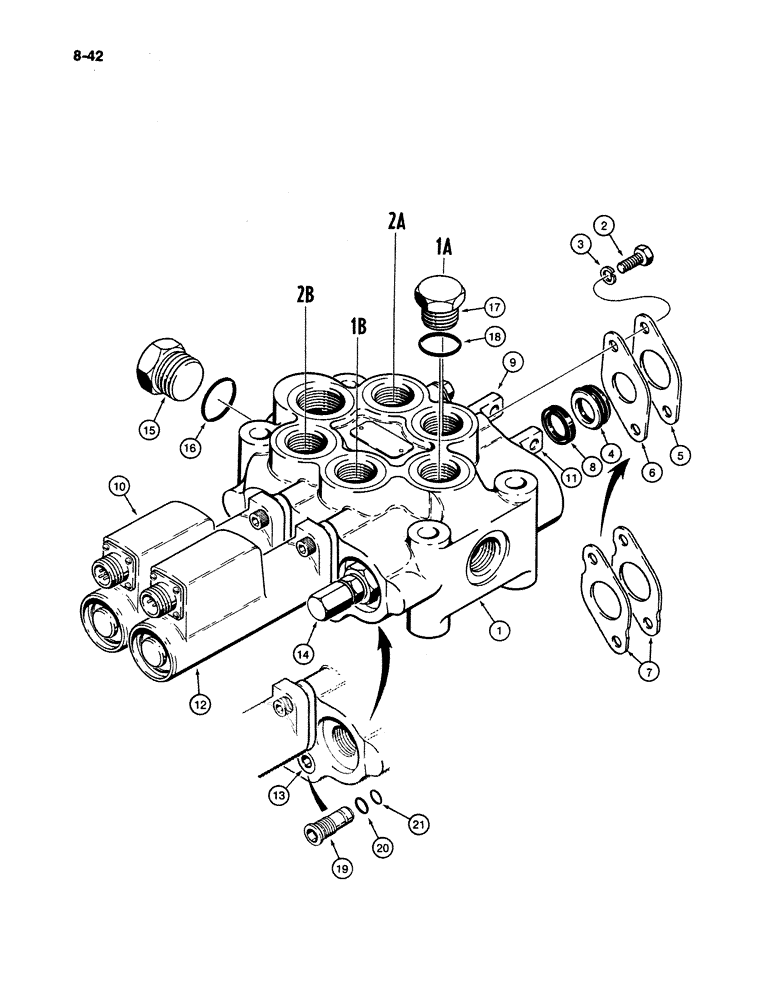

Запчасти Case W11B (8-042) - TWO SPOOL LOADER CONTROL VALVE (08) - HYDRAULICS

L104937

VALVE

CONTROL VALVE - loader, two spool, Hydreco No. MVT025RF31, Includes: Ref. 1 - 21

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - control valve

1шт.

2

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

4шт.

3

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

4шт.

4

D82728

RING

WIPER - spool

2шт.

5

D82721

PLATE

- retaining, outer, used with Ref. 6 plate, no longer available, replace with Ref. 7 plate

2шт.

6

D82720

PLATE ASSY.

PLATE - retaining, inner, used with Ref. 5 plate, no longer available, replace with Ref. 7; plate

2шт.

7

N8212

PLATE ASSY.

PLATE - retaining

2шт.

8

D82727

SEAL

- spool

4шт.

9

REF

INSTRUCTION

SPOOL ASSEMBLY - lift, parts list Figure 8-46

1шт.

10

D80680

DETENT

ASSEMBLY - lift, parts list Figure 8-48

1шт.

11

REF

INSTRUCTION

SPOOL ASSEMBLY - bucket tilt, parts list Figure 8-46

1шт.

12

D80693

DETENT

ASSEMBLY - bucket tilt, parts list Figure 8-52

1шт.

13

REF

INSTRUCTION

CIRCUIT RELIEF VALVE ASSEMBLY - parts list Figure 8-53

2шт.

14

REF

INSTRUCTION

MAIN RELIEF VALVE ASSEMBLY - parts list Figure 8-53

1шт.

15

273916

PLUG,Hex, 1-5/16" - 12 ORB

Assy, Includes Ref. 16 Hex Hd, 1 5/16"-12 ORB

1шт.

16

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- 1-11/16 x 1-13/32 x 1/8 inch

1шт.

17

218-5158

PLUG,Hex Hd, 1 1/16"-12 ORB

ASSEMBLY - hex, 3/4 tube 1-1/16-12 inch thread, Includes: Ref. 18

1шт.

18

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- 59/64 ID x 7/8 inch wide

1шт.

N14644

PLUG

ASSEMBLY - logging fork, use in place of Ref. 13, N6716 circuit relief, as a service option, Includes: Ref. 19 - 21

1шт.

ASSY TO KEEP LOGGING FORKS FROM CREEPING FORWARD AND PRE-MATURELY DUMPING THEIR

1шт.

LOAD. THE CIRCUIT RELIEF VALVE ASSY PORT # IS N6716 AND IS SHOWN ON FIGURE 8-52 REF; ECS D3087-213.

1шт.

N14644 PLUG ASSY - IS INSTALLED INTO "B" PORT IN PLACE OF CIRCUIT RELIEF VALVE

1шт.

19

NSS

NOT SOLD SEPARAT

PLUG - logging fork

1шт.

20

D24754

GASKET

O-RING - outer

1шт.

21

N7330

O-RING

- inner

1шт.
