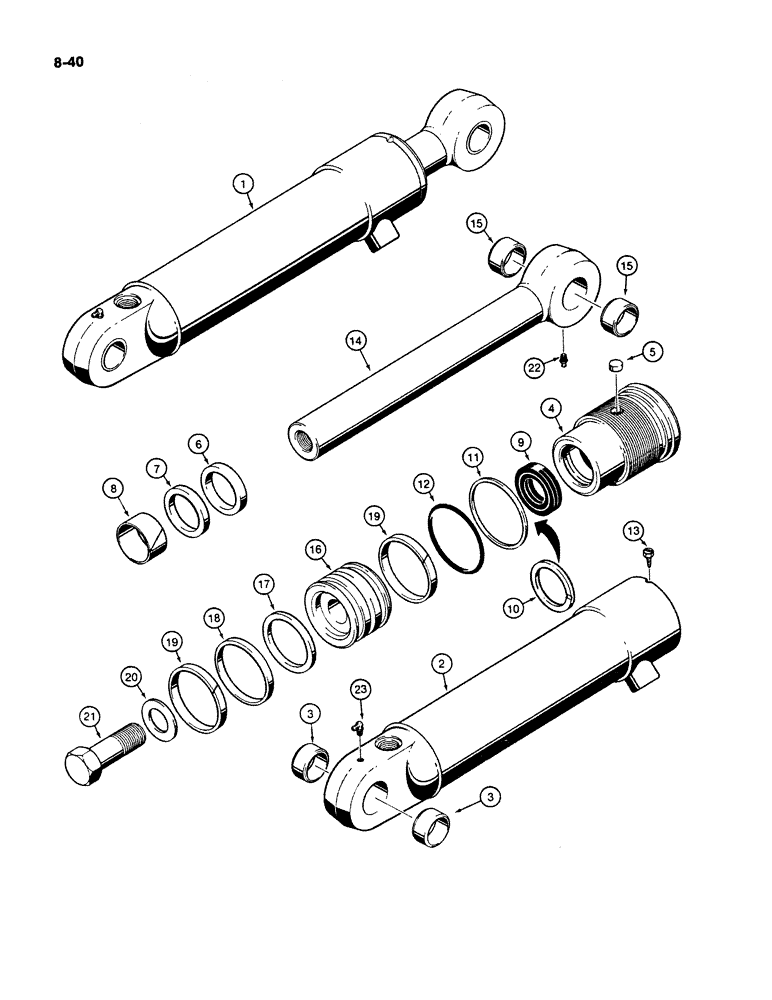

Запчасти Case W11B (8-040) - G101190 AND G101191 LOADER CLAM CYLINDERS (08) - HYDRAULICS

1

G101190

CYLINDER ASSY.

CYLINDER ASSEMBLY - 3" (76 mm) ID x 9" (229 mm) stroke, clam, right-hand, Includes: Ref. 2 - 23

1шт.

1

87454017R

REMAN-HYD CYLINDER

W11B CASE UNIT LOADER, CYLINDER ASSEMBLY, 3" (76 mm) ID x 9" (229 mm) stroke, clam, right-hand, Reman for New PN G101190

1шт.

1

87454017C

CORE-HYD CYLINDER

Return Number

1шт.

1

G101191

CYLINDER ASSY.

CYLINDER ASSEMBLY - 3" (76 mm) ID x 9" (229 mm) stroke, clam, left-hand, Includes: Ref. 2 - 23

1шт.

2

G32305

HYD TUBE,435.1 mm L

TUBE ASSEMBLY - right-hand cylinder, Includes: Ref. 3

1шт.

2

G32304

HYD TUBE

TUBE ASSEMBLY - left-hand cylinder, Includes: Ref. 3

1шт.

3

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

- tube

2шт.

G104240

GLAND

ASSEMBLY - cylinder, replaces glands without nylon plug, Includes: Ref. 4 - 12

1шт.

4

NSS

NOT SOLD SEPARAT

GLAND - cylinder

1шт.

5

G102569

PLUG

- nylon, thread locking, gland, if used

1шт.

6

D95143

WIPER SEAL,44.42mm ID x 57.17mm OD x 7.92mm Thk

WIPER - piston rod, outer

1шт.

The cylinder assembly part number is stamped on some cylinder glands or tubes.

1шт.

Part of seal kit, P/N G109460

1шт.

7

NSS

NOT SOLD SEPARAT

RETAINING RING - bushing

1шт.

8

G102425

BUSHING,44.45mm ID x 47.45mm OD x 25.1mm Thk

- center

1шт.

The cylinder assembly part number is stamped on some cylinder glands or tubes.

1шт.

Part of seal kit, P/N G109460

1шт.

9

G107922

SEAL,44.42mm ID x 57.28mm OD x 10.69mm Thk

U-CUP SEAL - piston rod, wide, with O-ring

1шт.

The cylinder assembly part number is stamped on some cylinder glands or tubes.

1шт.

Part of seal kit, P/N G109460

1шт.

9

G100777

SEAL,44.42mm ID x 57.28mm OD x 10.69mm Thk

U-CUP SEAL - piston rod, service option - severe heat or cold

1шт.

10

G109094

SEAL,44.07mm ID x 57.33mm OD x 3.05mm Thk

- piston rod, narrow, used in addition to Ref. 9 in some glands

1шт.

The cylinder assembly part number is stamped on some cylinder glands or tubes.

1шт.

Part of seal kit, P/N G109460

1шт.

11

G32122

BACK-UP RING,75.82mm ID x 81.92mm OD x 1.4mm Thk

BACKUP RING - gland O-ring

1шт.

The cylinder assembly part number is stamped on some cylinder glands or tubes.

1шт.

Part of seal kit, P/N G109460

1шт.

12

A30095

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

- trunnion, 3 x 3-1/4 x 1/8 inch

1шт.

The cylinder assembly part number is stamped on some cylinder glands or tubes.

1шт.

Part of seal kit, P/N G109460

1шт.

13

187-1524

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

SCREW - hex head, self-tapping, No. 8 NC x 3/8 inch, if used

1шт.

14

G33800

PISTON ROD

ROD ASSEMBLY - piston, 1-3/4" (44 mm) diameter, Includes: Ref. 15

1шт.

15

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

- piston rod

2шт.

16

G100704

PISTON

- cylinder

1шт.

17

G100444

SEALING RING,Square, 5.28mm Thk x 62.61mm ID

BACKUP RING - piston seal

1шт.

The cylinder assembly part number is stamped on some cylinder glands or tubes.

1шт.

Part of seal kit, P/N G109460

1шт.

18

G102288

SEAL,Locking, 71.71mm ID x 76.43mm OD x 6.96mm Thk

- Piston

1шт.

The cylinder assembly part number is stamped on some cylinder glands or tubes.

1шт.

Part of seal kit, P/N G109460

1шт.

19

G100449

WEAR RING,Split, 69.85mm ID x 76.2mm OD x 9.52mm Thk

RING - wear, piston

2шт.

The cylinder assembly part number is stamped on some cylinder glands or tubes.

1шт.

Part of seal kit, P/N G109460

1шт.

20

G32303

WASHER,26.97mm ID x 47.63mm OD x 3.58mm Thk

- hardened

1шт.

21

28-1640

BOLT,Hex, 1" - 14 x 2-1/2", Gr 8

1шт.

22

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch long

1шт.

23

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

1шт.

G109460

GASKET KIT

KIT - seal, Includes: Ref. 6, 8, 9, 10, 11, 12, 17, 18, 19, same as G102405 kit plus Ref. 10 above

1шт.

The cylinder assembly part number is stamped on some cylinder glands or tubes.

1шт.
