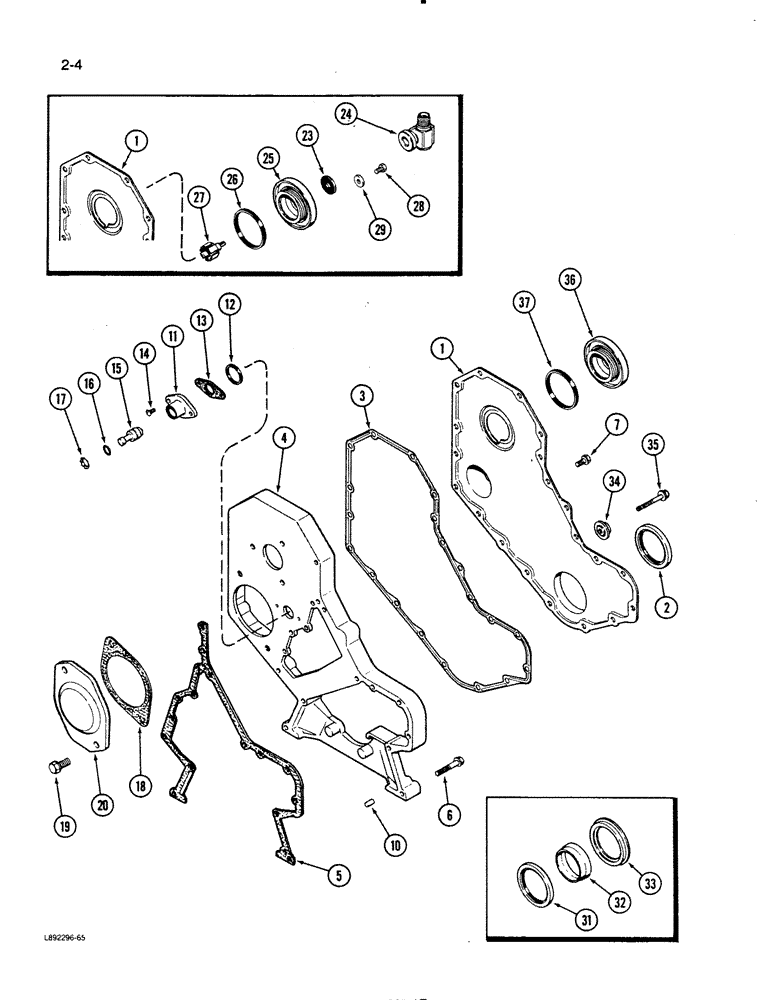

Запчасти Case W11B (2-004) - FRONT GEAR COVER, 4-390 ENGINE, 4T-390 ENGINE (02) - ENGINE

1

J903794

COVER

- gear, front

1шт.

2

NSS

NOT SOLD SEPARAT

SEAL - oil, crankshaft front (Order Ref. 30)

1шт.

3

J914385

GASKET,1.02mm Thk

- front cover (Replaces J910500)

1шт.

4

J910411

HOUSING

- timing gear

1шт.

5

J916131

GASKET

- gear housing (Replaces J907836)

1шт.

6

J900633

BOLT,Hex Flg, M8 x 50mm, Cl 8.8

- hex, 8 mm - 1.25 x 50 mm

10шт.

7

J900629

FLANGE BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

BOLT, Hex Flg, M8 x 16, 8.8, Full Thd

16шт.

10

J900257

PIN,10.01mm OD x 16mm L

- dowel, locating, 16 mm

2шт.

11

J905933

HOUSING

- timing pin (Replaces J903923)

1шт.

12

J914092

O-RING

- pin housing (Replaces J906693)

1шт.

13

J905595

GASKET

- pin housing (Used with J903923 housing)

1шт.

14

J907998

SCREW,M5 x 0.8 x 17mm, Cl 8.8

LOCK, Spc Rd Torx Hd, M5 x 17

2шт.

15

J903924

PIN,18.87mm OD x 55mm L

- timing

1шт.

16

J913994

O-RING

- sealing (Replaces J903927)

1шт.

17

J904849

SNAP RING,0.875", Int, #87

RING, SNAP, , timing pin 0.875", Int, #87

1шт.

18

J913192

GASKET

- cover plate (Replaces A77441)

1шт.

19

J901249

FLANGE BOLT,Hvy Hex, M12 x 25mm, Cl 10.9

BOLT - hex flange, 12 mm - 1.75 x 25 mm

2шт.

20

J909918

PLATE

- cover, access (Replaces A77440)

1шт.

23

J905218

GASKET

- tachometer drive (If equipped)

1шт.

24

J905217

FITTING

ADAPTER - drive (If equipped)

1шт.

25

J915064

COVER

- tachometer drive (If equipped) (Replaces J903476)

1шт.

26

J903475

SEALING RING,72.39mm ID x 90.39mm OD x 9mm Thk

- cover (If equipped)

1шт.

27

J905306

HUB

- tachometer drive (If equipped)

1шт.

28

A77442

DRIVE SCREW,Hex, M6 x 1 x 12mm, Cl 8.8

BOLT - tachometer drive (If equipped)

2шт.

29

K651812

WASHER

- retaining (If equipped)

2шт.

30

J904353

GASKET KIT

SEAL KIT - oil, crankshaft front, Includes: Ref. 31 - 33

1шт.

31

NSS

NOT SOLD SEPARAT

SEAL - oil, crankshaft front

1шт.

32

NSS

NOT SOLD SEPARAT

TOOL - seal installation

1шт.

33

NSS

NOT SOLD SEPARAT

TOOL - seal installation

1шт.

34

J912772

RETAINER

- bolt

1шт.

35

J901446

FLANGE BOLT,Hvy Hex, M8 x 60mm, Cl 8.8

BOLT - hex flange, 8 mm - 1.25 x 60 mm

1шт.

36

J903463

PLUG,M63 x 5

- tachometer drive hole

1шт.

37

J903475

SEALING RING,72.39mm ID x 90.39mm OD x 9mm Thk

- cover

1шт.
