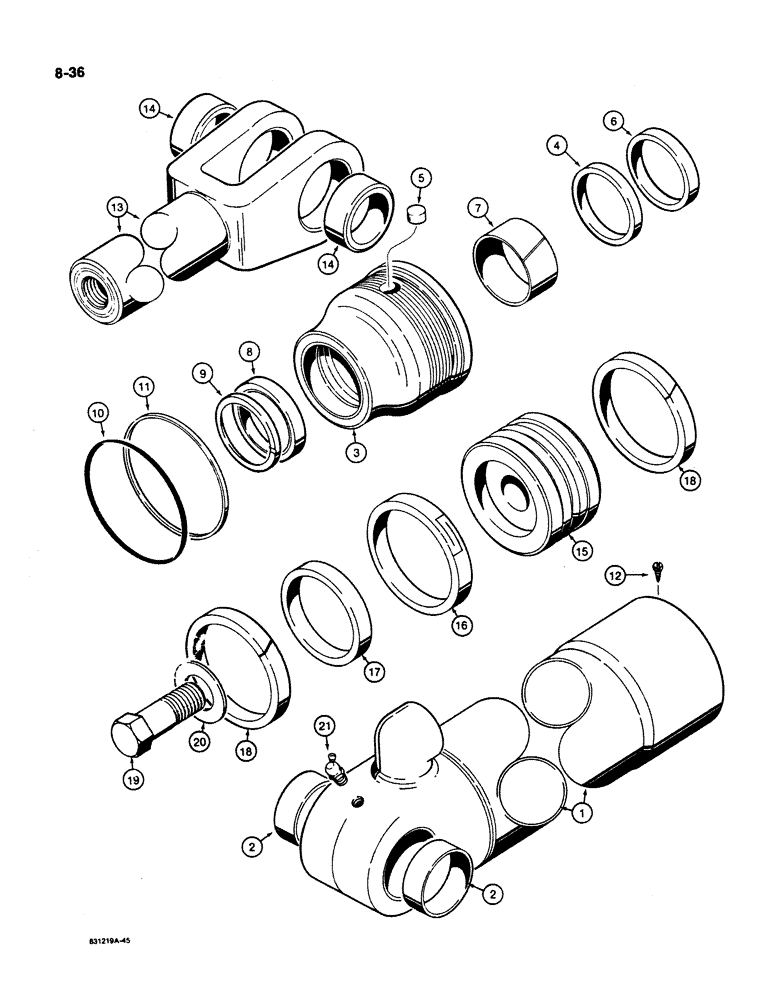

Запчасти Case W11B (8-036) - G101052 AND G101053 LOADER LIFT CYLINDERS (08) - HYDRAULICS

G101052

CYLINDER ASSY.

CYLINDER ASSEMBLY - 3-1/2" (88 mm) ID x 28-1/2" (733 mm) stroke, lift, right-hand, Includes: Ref. 1 - 21

1шт.

G101053

CYLINDER ASSY.

CYLINDER ASSEMBLY - 3-1/2" (88 mm) ID x 28-1/2" (733 mm) stroke, lift, left-hand, Includes: Ref. 1 - 21

1шт.

1

G101144

TUBE,36.13" L

ASSEMBLY - G101052 cylinder, Includes: Ref. 2

1шт.

1

G101145

TUBE

ASSEMBLY - G101053 cylinder, Inlcudes: Ref. 2

1шт.

2

D35071

BUSHING

- tube

2шт.

G104402

GLAND

ASSEMBLY - cylinder, Includes: Ref. 3 - 11

1шт.

3

NSS

NOT SOLD SEPARAT

GLAND - cylinder

1шт.

4

NSS

NOT SOLD SEPARAT

RETAINING RING - bushing

1шт.

5

G102569

PLUG

- nylon, thread locking, gland, if used

1шт.

6

D95144

WIPER SEAL,50.77mm ID x 63.52mm OD x 7.92mm Thk

Wiper - piston rod

1шт.

The cylinder assembly part number is stamped on some cylinder glands or tubes.

1шт.

Part of seal kit, P/N G109453

1шт.

7

G101533

WEAR RING,Split, 50.8mm ID x 53.87mm OD x 25.15mm Thk

BUSHING - center

1шт.

The cylinder assembly part number is stamped on some cylinder glands or tubes.

1шт.

Part of seal kit, P/N G109453

1шт.

8

G107923

SEAL,50.77mm ID x 63.63mm OD x 10.69mm Thk

U-CUP SEAL - piston rod, wide, with o-ring

1шт.

The cylinder assembly part number is stamped on some cylinder glands or tubes.

1шт.

Part of seal kit, P/N G109453

1шт.

8

G100778

SEAL

U-CUP SEAL - piston rod, service option - extreme heat or cold

1шт.

9

G107997

SEAL,50.37mm ID x 63.68mm OD x 3.05mm Thk

- piston rod, narrow, used in addition to Ref. 8 in some glands

1шт.

The cylinder assembly part number is stamped on some cylinder glands or tubes.

1шт.

Part of seal kit, P/N G109453

1шт.

10

G15457

O-RING,0.139" Thk x 3.484" ID, -238, Cl 5, 75 Duro

- gland

1шт.

The cylinder assembly part number is stamped on some cylinder glands or tubes.

1шт.

Part of seal kit, P/N G109453

1шт.

11

G32126

BACK-UP RING,89.28mm ID x 95.38mm OD x 1.4mm Thk

BACKUP RING - gland O-ring

1шт.

The cylinder assembly part number is stamped on some cylinder glands or tubes.

1шт.

Part of seal kit, P/N G109453

1шт.

12

187-1524

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

SCREW - hex head, self-tapping, No. 8 NC x 3/8 inch, if used

1шт.

13

G101148

ROD

ASSEMBLY - piston, 2" (51 mm) diameter, Includes: Ref. 14

1шт.

14

D46405

BUSHING,44.68mm ID x 53.98mm OD x 19.05mm L

- piston rod

2шт.

15

G100694

PISTON

- cylinder

1шт.

16

G102286

SEAL,Locking, 85.47mm ID x 90.19mm OD x 6.96mm Thk

- piston

1шт.

The cylinder assembly part number is stamped on some cylinder glands or tubes.

1шт.

Part of seal kit, P/N G109453

1шт.

17

G100710

RING,Square, 5.28mm Thk x 75.31mm ID

BACKUP RING - piston seal

1шт.

The cylinder assembly part number is stamped on some cylinder glands or tubes.

1шт.

Part of seal kit, P/N G109453

1шт.

18

G100711

SEAL,Split, 82.55mm ID x 88.9mm OD x 9.52mm Thk

Piston

2шт.

The cylinder assembly part number is stamped on some cylinder glands or tubes.

1шт.

Part of seal kit, P/N G109453

1шт.

19

28-1640

BOLT,Hex, 1" - 14 x 2-1/2", Gr 8

1шт.

20

G32303

WASHER,26.97mm ID x 47.63mm OD x 3.58mm Thk

- hardened

1шт.

21

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch long, not shown, use 219-41 grease fitting

1шт.

21

219-41

LUBE NIPPLE,65 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 65º, 1/8" NPT x 1.20" lg

1шт.

G109453

GASKET KIT

KIT - seal, Includes: Ref. 6, 7, 8, 9, 10, 11, 16, 17, 18, same as G102402 kit Ref. 9 above

1шт.

The cylinder assembly part number is stamped on some cylinder glands or tubes.

1шт.
