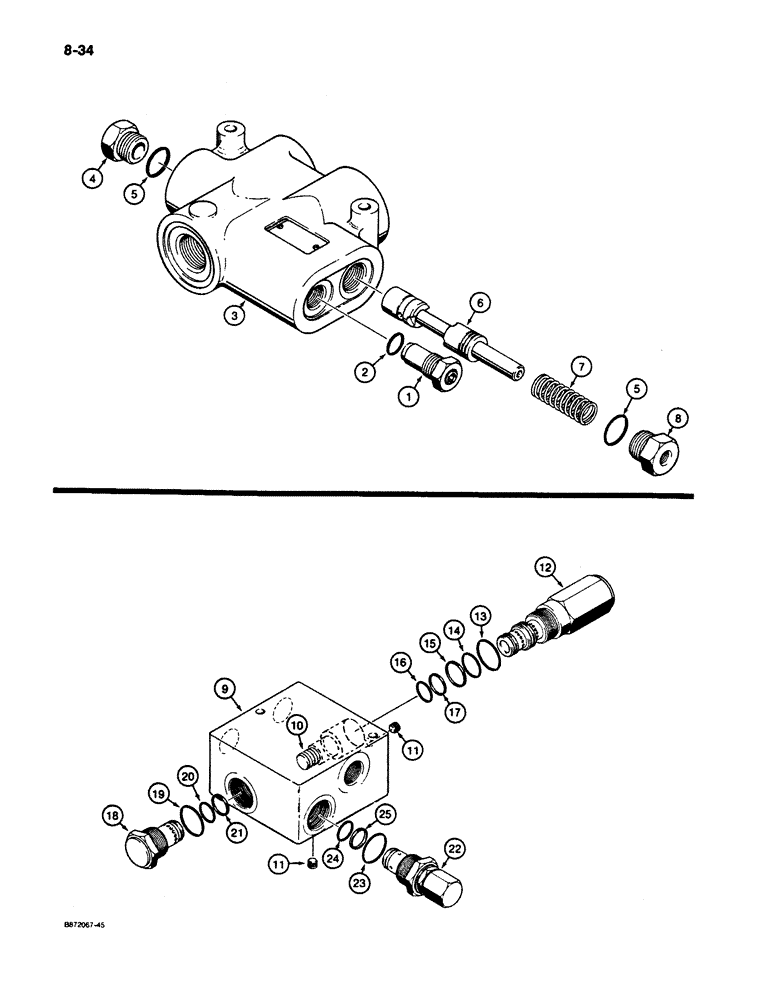

Запчасти Case W11B (8-034) - FLOW CONTROL VALVE, UNLOADING VALVE (08) - HYDRAULICS

L105296

VALVE

FLOW CONTROL VALVE ASSEMBLY - hydraulic circuit Char Lynn No. 606-1047-002-CF00, Includes: Ref. 1 - 8

1шт.

N6901

CARTRIDGE

RELIEF VALVE ASSEMBLY - flow control valve, Includes: Ref. 1 and 2

1шт.

1

NSS

NOT SOLD SEPARAT

CARTRIDGE ASSEMBLY - relief valve

1шт.

2

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

3

NSS

NOT SOLD SEPARAT

BODY - flow control valve

1шт.

4

S114011

PLUG

- hex head

1шт.

5

S114010

O-RING

- plug

2шт.

6

NSS

NOT SOLD SEPARAT

SPOOL - flow control valve

1шт.

7

D82777

SPRING

- spool

1шт.

8

S114009

PLUG

- spring retaining

1шт.

L103844

VALVE

UNLOADING VALVE - hydraulic circuit, Includes: Ref. 9 - 25

1шт.

N6534

VALVE BODY

BODY ASSEMBLY - unloading valve, Includes: Ref. 9 and 10

1шт.

9

NSS

NOT SOLD SEPARAT

BODY - unloading valve

1шт.

10

N6535

PLUG

- orifice, unloading valve

1шт.

11

217-433

PLUG,Hex Soc, 1/4" - 18 NPTF

Unloading valve Hex Soc, 1/4"-18 NPTF

2шт.

REF: 11A USE HYD. LOCTITE W/PLUG

1шт.

D87152

VALVE

CARTRIDGE ASSEMBLY - unloading valve, Includes: Ref. 12 - 17

1шт.

12

NSS

NOT SOLD SEPARAT

CARTRIDGE - unloading valve

1шт.

13

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, Unloading valve

1шт.

14

392382R1

O-RING,0.551" ID x 0.07" Width

- 9/16 x 11/16 inch, Class 6, unloading valve

1шт.

15

L30012

RING

- seal, backup, unloading valve

1шт.

16

G102845

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

- 1/2 ID x 1/16 inch, unloading valve

1шт.

17

D37070

SEAL,13.16mm ID x 15.85mm OD x 1.25mm Thk

BACKUP RING - inner O-ring, unloading valve

1шт.

D87154

VALVE

CHECK VALVE ASSEMBLY - unloading valve, Includes: Ref. 18 - 21

1шт.

18

NSS

NOT SOLD SEPARAT

CARTRIDGE - check valve, unloading valve

1шт.

19

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, Unloading valve

1шт.

20

G102845

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

- 1/2 ID x 1/16 inch wide, unloading valve

1шт.

21

D37070

SEAL,13.16mm ID x 15.85mm OD x 1.25mm Thk

BACKUP RING - inner O-ring, unloading valve

1шт.

D87153

VALVE

RELIEF VALVE ASSEMBLY - unloading valve, Includes: Ref. 22 - 25

1шт.

22

NSS

NOT SOLD SEPARAT

CARTRIDGE - relief valve, unloading valve

1шт.

23

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, Unloading valve

1шт.

24

G102845

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

- 1/2 ID x 1/16 inch wide, unloading valve

1шт.

25

D37070

SEAL,13.16mm ID x 15.85mm OD x 1.25mm Thk

BACKUP RING - inner O-ring, unloading valve

1шт.
