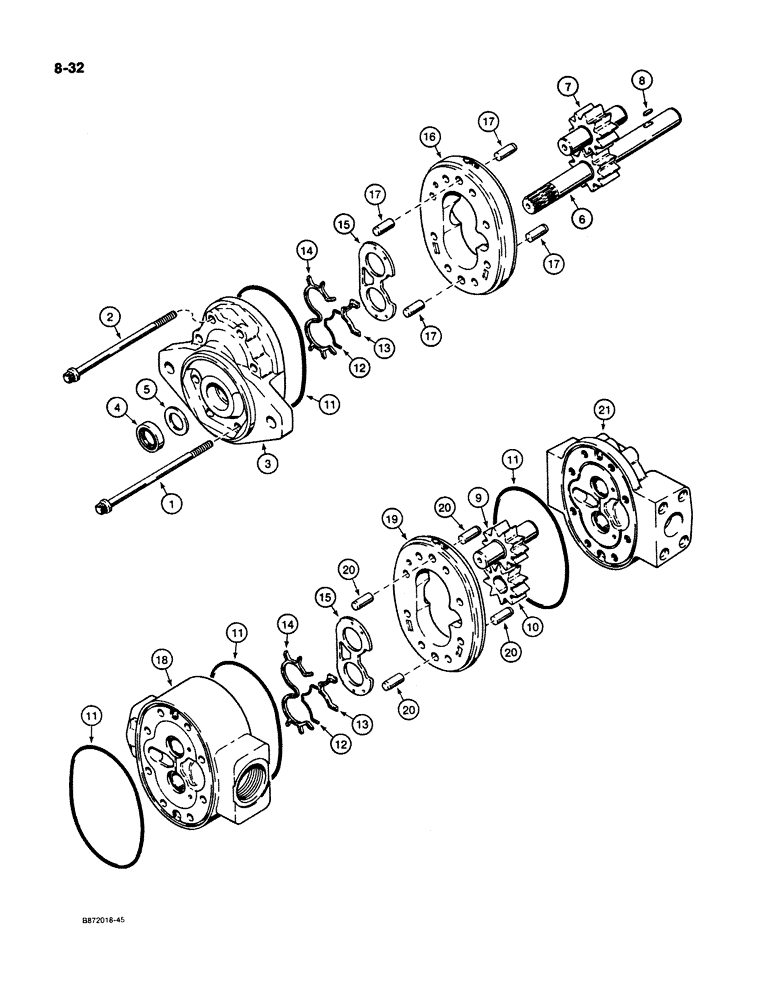

Запчасти Case W11B (8-032) - L117990 HYDRAULIC PUMP, USED ON MODELS WITH CLARK TRANSMISSION (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
L117990
PUMP
ASSEMBLY - hydraulic, Includes: Ref. 1 - 21
1шт.
L103397 GASKET SHOWN ON FIGURE 8-18 (BETWEEN PUMP AND TRANSMISSION) ABOVE PER ECS # S8920-36. EFF.
1шт.
L117990 REPLACED BY L127126 PUMP ASSY OLD # MUST BE RETAINED FOR SERVICE ON UNITS PRIOR TO CHANGE. BOTH PUMPS USE
1шт.
1
166-79
BOLT - Ferry head, 3/8" - 16 x 6", grade 8
4шт.
2
166-80
12 PT SCREW,Flg, 3/8" - 16 x 7 3/4", Gr 8
BOLT - Ferry head, 3/8" - 16 NC x 6-1/4", grade 8
4шт.
3
N14273
PLATE
COVER - drive shaft end, includes bushings
1шт.
4
A25139
SEAL,22.22mm ID x 35.08mm OD x 6.91mm Thk
- shaft
1шт.
Part of seal kit, P/N N14282
1шт.
5
H104117
WASHER
- seal
1шт.
Part of seal kit, P/N N14282
1шт.
6
N14281
GEAR
DRIVE GEAR - loader/steering circuit
1шт.
7
N14278
CLAMP
IDLER GEAR - loader/steering circuit
1шт.
8
N14274
KEY
-, Serial Range: gear-shaft
1шт.
9
N14277
GEAR
IDLER GEAR - brake circuit
1шт.
10
N14280
GEAR
- drive gear shaft, slip fit, brake circuit
1шт.
11
H756221
O-RING,4.987" ID x 5.193" OD
- body
4шт.
Part of seal kit, P/N N14282
1шт.
12
NSS
NOT SOLD SEPARAT
SEAL - molded
2шт.
Part of seal kit, P/N N14282
1шт.
13
NSS
NOT SOLD SEPARAT
SEAL - bearing
2шт.
Part of seal kit, P/N N14282
1шт.
14
NSS
NOT SOLD SEPARAT
GASKET - wear plate
2шт.
Part of seal kit, P/N N14282
1шт.
15
NSS
NOT SOLD SEPARAT
WEAR PLATE - pump body
2шт.
Part of seal kit, P/N N14282
1шт.
N14276
VALVE BODY
HOUSING ASSEMBLY - gear, loader/steering circuit, Includes: Ref. 16 and 17
1шт.
16
NSS
NOT SOLD SEPARAT
HOUSING - gear
1шт.
17
A17924
PIN
- dowel
4шт.
18
N14279
PLATE ASSY.
BODY - center
1шт.
N14275
BODY
HOUSING ASSEMBLY - gear, brake circuit, Includes: Ref. 19 and 20
1шт.
19
NSS
NOT SOLD SEPARAT
HOUSING - gear
1шт.
20
A17924
PIN
- dowel
4шт.
21
N14272
BACK PLATE
COVER - port end, includes bushings
1шт.
N14282
SEAL
KIT - seal repair, Includes: Ref. 4, 5, 11, 12, 13, 14, 15
1шт.
Выбрано товаров: 34
