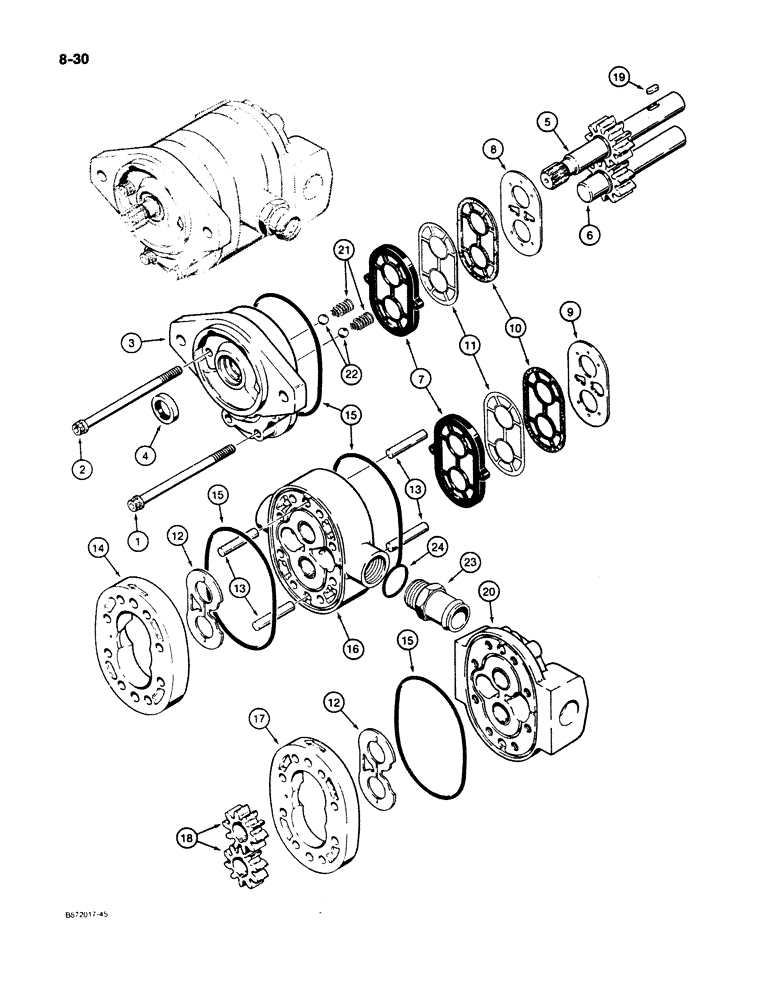

Запчасти Case W11B (8-030) - L77150 HYDRAULIC PUMP, USED ON MODELS WITH FUNK TRANSMISSION (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
L77150
PUMP, HYDRAULIC
PUMP ASSEMBLY - hydraulic, Includes: Ref. 1 - 24
1шт.
L77150 IS A EATON (CHAR-LYNN) PUMP ASSEMBLY - HYD.
1шт.
1
NSS
NOT SOLD SEPARAT
BOLT - Ferry head, 3/8" - 16 x 5-1/4", grade 8
4шт.
2
12 PT SCREW,Flg, 3/8" - 16 x 5 1/2", Gr 8
BOLT - Ferry head, 3/8" - 16 NC x 5-1/2", grade 8
4шт.
3
D80499
PLATE
COVER - drive shaft end, includes bushings
1шт.
4
A25139
SEAL,22.22mm ID x 35.08mm OD x 6.91mm Thk
- shaft
1шт.
Part of seal kit, P/N N13536
1шт.
5
D80505
GEAR
DRIVE GEAR - loader/steering circuit
1шт.
6
D80506
GEAR
IDLER GEAR - loader/steering circuit
1шт.
7
H273912
SEAL
- diaphragm
2шт.
Part of seal kit, P/N N13536
1шт.
8
H335331
DIAPHRAGM
- loader/steering circuit
1шт.
Part of seal kit, P/N N13536
1шт.
9
D80507
DIAPHRAGM
- brake circuit
1шт.
Part of seal kit, P/N N13536
1шт.
10
H260927
GASKET
- pump
2шт.
Part of seal kit, P/N N13536
1шт.
11
H260935
GASKET
PROTECTOR - gasket
2шт.
Part of seal kit, P/N N13536
1шт.
12
A45358
PLATE
- wear
2шт.
Part of seal kit, P/N N13536
1шт.
13
D52925
DOWEL
PIN -, Serial Range: carrier-covers
4шт.
14
R25508
BODY
HOUSING - gear, loader/steering circuit
1шт.
15
H756221
O-RING,4.987" ID x 5.193" OD
- body
4шт.
Part of seal kit, P/N N13536
1шт.
16
D80501
ADAPTER
CARRIER - bushing, includes bushings
1шт.
17
H210724
BODY
HOUSING - gear, brake circuit
1шт.
18
H233478
GEAR
- brake circuit
2шт.
19
H226878
KEY
-, Serial Range: gear-shaft
1шт.
20
D80500
PLATE ASSY.
COVER - port end, includes bushings
1шт.
21
D31403
SPRING
- check ball
2шт.
Part of seal kit, P/N N13536
1шт.
22
211-312
BALL,13/32" Dia
- check
2шт.
Part of seal kit, P/N N13536
1шт.
N13537
TUBE
/A - hose, Includes: Ref. 23 and 24
1шт.
23
NSS
NOT SOLD SEPARAT
TUBE - hose
1шт.
Part of seal kit, P/N N13536
1шт.
N13536
SEAL KIT
KIT - seal, Includes: Ref. 4, 7, 8, 9, 10, 11, 12, 15, 21, 22, 24
1шт.
Выбрано товаров: 39
