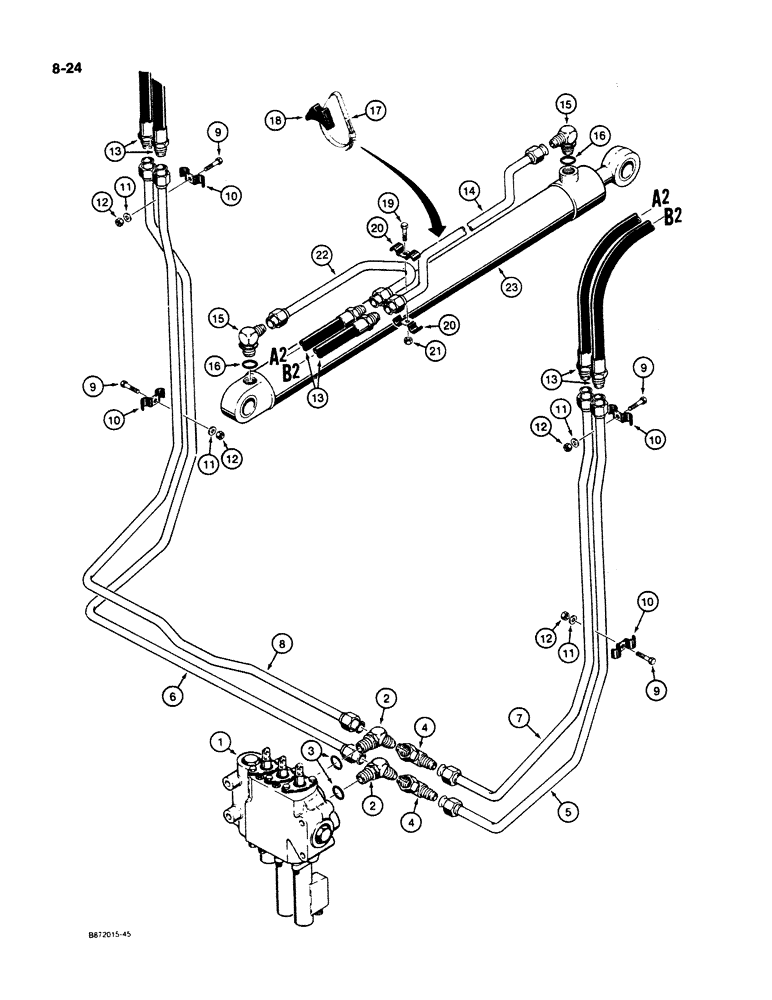

Запчасти Case W11B (8-024) - LOADER BUCKET HYDRAULIC CIRCUIT (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE - loader, see Figures 8-42 and 8-44 for correct valve

1шт.

2

218-5149

ELBOW,45 Degree Elbow, 7/8" - 14 Male JIC x 1-1/16" - 12 Male ORB

Adj., Incl. Ref 3

2шт.

3

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

O-RING - 59/64 ID x 7/8 inch wide

1шт.

4

218-842

TEE,37 Degree, 7/8"-14 x 7/8"-14, Fem Sw Br

Tube

2шт.

5

L78162

TUBE,0.625" OD

RH, from lower valve port

1шт.

6

L118234

TUBE,15.88 mm OD x 999, 707 mm L

LH, from lower valve port

1шт.

7

L78164

TUBE,0.625" OD

RH, from upper valve port

1шт.

8

L78172

TUBE,0.625" OD

LH, from upper valve port

1шт.

9

113-122

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

4шт.

10

A12032

CLAMP

Tube

4шт.

11

195-103

WASHER,5/16"

NUT - hex, 1/2 inch NC

4шт.

12

131-665

LOCK NUT,5/16"-18, GB

4шт.

13

D32288

HOSE ASSY.

Tube to lift frame, 36" (914 mm) long

4шт.

14

L74741

TUBE ASSY.,0.625" OD x 25.36, 5.02" L

To rod end of cylinder

2шт.

15

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

ASSEMBLY - adjustable, Incl. Ref. 16

4шт.

16

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

17

214-264

HOSE CLAMP,#52, 2.81" - 3.75", Type F Worm

2шт.

18

D38648

BLOCK

SPACER - rubber

2шт.

19

413-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

2шт.

20

A12032

CLAMP

Tube

4шт.

21

131-665

LOCK NUT,5/16"-18, GB

2шт.

22

L77056

TUBE ASSY.,0.625" OD x 16.9, 3.5" L

To closed end of cylinder

2шт.

23

G101054

CYLINDER

Bucket, parts list Figure 8-38

2шт.
