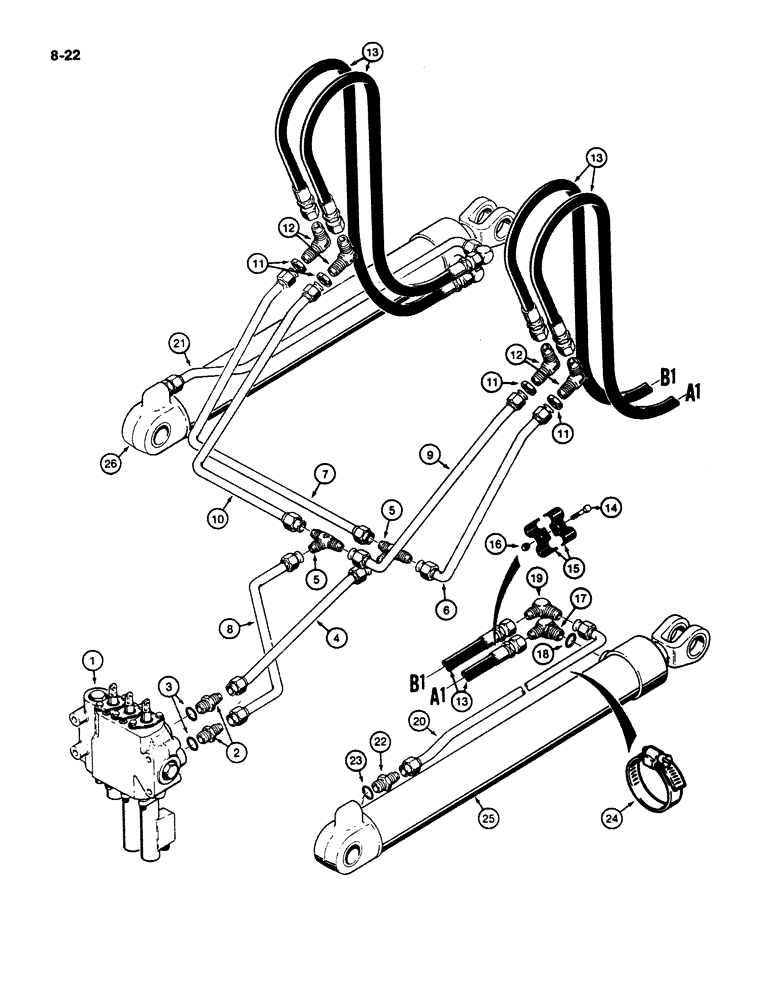

Запчасти Case W11B (8-022) - LOADER LIFT HYDRAULIC CIRCUIT (08) - HYDRAULICS

1

REF

INSTRUCTION

CONTROL VALVE - loader, see Figures 8-42 and 8-44 for correct valve

1шт.

2

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

ADAPTER - straight, 1-1/16-12 inch flare x O-ring boss, Incl. Ref. 3

2шт.

3

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- 59/64 ID x 7/8 inch wide

1шт.

4

L78153

TUBE,0.75" OD x 22.82, 6.72" L

- from upper valve port

1шт.

5

218-605

TEE,37 Degree, 7/8"-14 x 1 1/16"-12, Br

- tube

2шт.

6

L74902

TUBE ASSY.,0.625" OD

TUBE - lift, right-hand lower

1шт.

7

L74900

TUBE,0.625" OD

- lift, left-hand lower

1шт.

8

L105418

TUBE ASSY.,0.75" OD

TUBE - from lower valve port

1шт.

9

L74896

TUBE ASSY.,0.625" OD

TUBE - lift, right-hand upper

1шт.

10

L74898

TUBE ASSY.

TUBE - lift, left-hand upper

1шт.

11

218-1251

BHD LOCK NUT,Blkhd, 7/8"-14

NUT, LOCK, Blkhd, 7/8"-14

4шт.

12

218-695

ELBOW,90 Degree Blkhd, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree

- 90 degree, bulkhead

4шт.

13

37405

HOSE

- 36" (914 mm) long

4шт.

14

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch

2шт.

15

R15257

CLAMP

- hose

4шт.

16

131-666

LOCK NUT,3/8"-16, GB

NUT - hex, self-locking, 3/8" - 16 NC, plated

2шт.

17

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

ASSEMBLY - 90 degree adjustable, 7/8-14 inch thread^, Incl. Ref. 18

2шт.

18

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

19

218-475

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male JIC

- 90 degree

2шт.

20

L74734

TUBE ASSY.,0.625" OD x 31.18, 1.92" L

TUBE - right-hand, cylinder

1шт.

21

L74915

TUBE ASSY.,0.625" OD

TUBE - left-hand, cylinder

1шт.

22

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

ADAPTER - straight, 7/8-14 inch flare x O-ring boss, Includes: Ref. 23

2шт.

23

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

24

214-267

HOSE CLAMP,#64, 3.56" - 4.5", Type F Worm

CLAMP - tube to cylinder

2шт.

25

G101052

CYLINDER ASSY.

CYLINDER - lift, right-hand, parts list Figure 8-36

1шт.

26

G101053

CYLINDER ASSY.

CYLINDER - lift, left-hand, parts list Figure 8-36

1шт.
