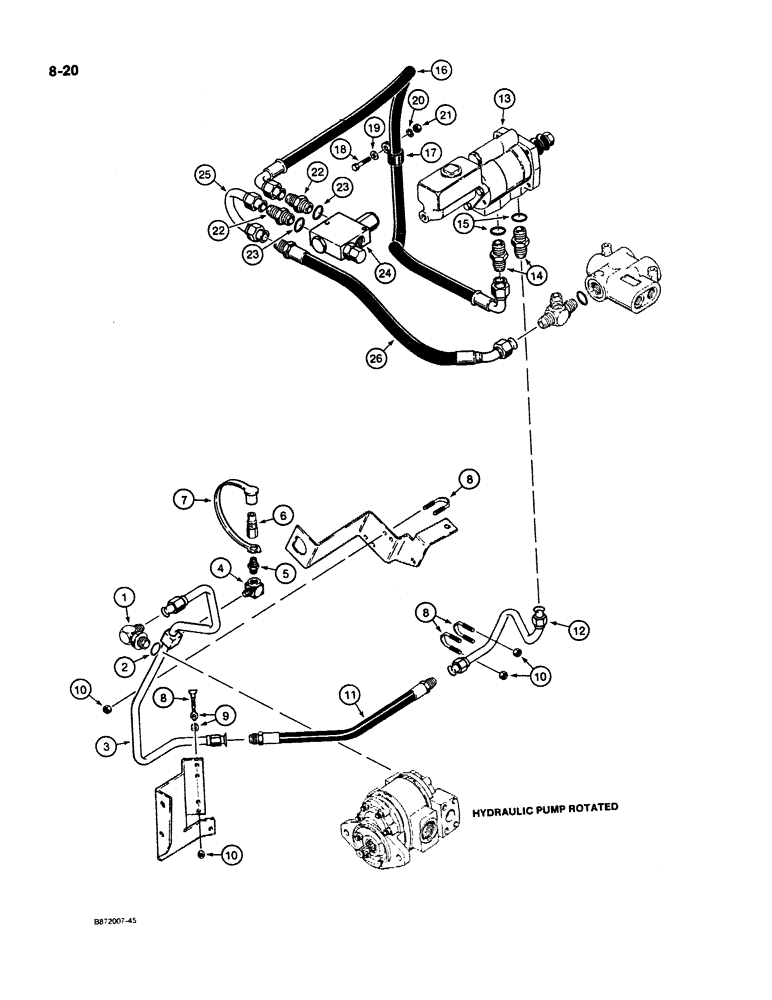

Запчасти Case W11B (8-020) - HYDRAULIC CIRCUIT, PUMP TO BRAKE ACTUATOR FOR MODELS WITH CLARK TRANSMISSION (08) - HYDRAULICS

1

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

ASSEMBLY - 90 degree adjustable, 7/8-14 inch thread^, Incl. Ref. 2

1шт.

2

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

3

L118204

TUBE ASSY.

TUBE - brakes and steering

1шт.

REF: 3A REPLACED BY L128338 - PER #ECS-58920-36 OLD # MUST BE RETAINED FOR UNITS BUILT PRIOR TO THIS CHANGE.

1шт.

4

217-1020

90 ELBOW,3/4" - 14 Female x 3/4" - 14 Male

Street 90º, 3/4"-14 Female x 3/4"-14 Male

1шт.

5

217-1092

HYD CONNECTOR,3/4"-14 NPTF x 1/4"-18 NPTF

CONNECTOR - straight

1шт.

6

S206607

DISC

COUPLING - male, quick disconnect

1шт.

7

D123387

DUST CAP

CAP - dust

1шт.

8

L78949

U-BOLT

- 5/16" - 18 NC x 5/8"

4шт.

9

195-521

WASHER,5/16", SAE

- flat, 11/32 x 11/16 x 3/64 inch

2шт.

10

231-1445

NUT,5/16"-18, GB

NUT - hex, self-locking, 5/16" - 18 NC, plated

8шт.

11

L74997

HOSE ASSY.,0.50" ID x 20.00"

HOSE ASSY, , Lower 0.50" ID x 20.00"

1шт.

12

L78937

TUBE,0.625" OD

- lower, supply booster

1шт.

13

REF

INSTRUCTION

BRAKE ACTUATOR - see Figures 7-12 through 7-16 for correct actuator

1шт.

14

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

ADAPTER - straight, 7/8-14 inch flare x O-ring boss, Includes: Ref. 15

2шт.

15

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

16

L101244

HOSE

- brake actuator to unloading valve, 22-1/2" (572 mm) long

1шт.

17

R12102

CLAMP

- hose

1шт.

18

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

1шт.

19

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) 3/8"

1шт.

20

492-11038

LOCK WASHER,3/8"

1шт.

21

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

22

218-5066

HYD CONNECTOR,7/8" - 14 Male JIC x 3/4" - 16 Male ORB

CONNECTOR, HYD., straight, 5/8 x 1/2 straight inch thread, Incl. Ref. 23

2шт.

23

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

24

L103844

VALVE

UNLOADING VALVE - parts list Figure 8-34

1шт.

25

L101149

TUBE ASSY.,0.625" OD x 3.46, 3" L

TUBE - U-shape

1шт.

26

L101107

HOSE

ASSEMBLY - unloading valve bypass, 16-1/2" (419 mm) long

1шт.
