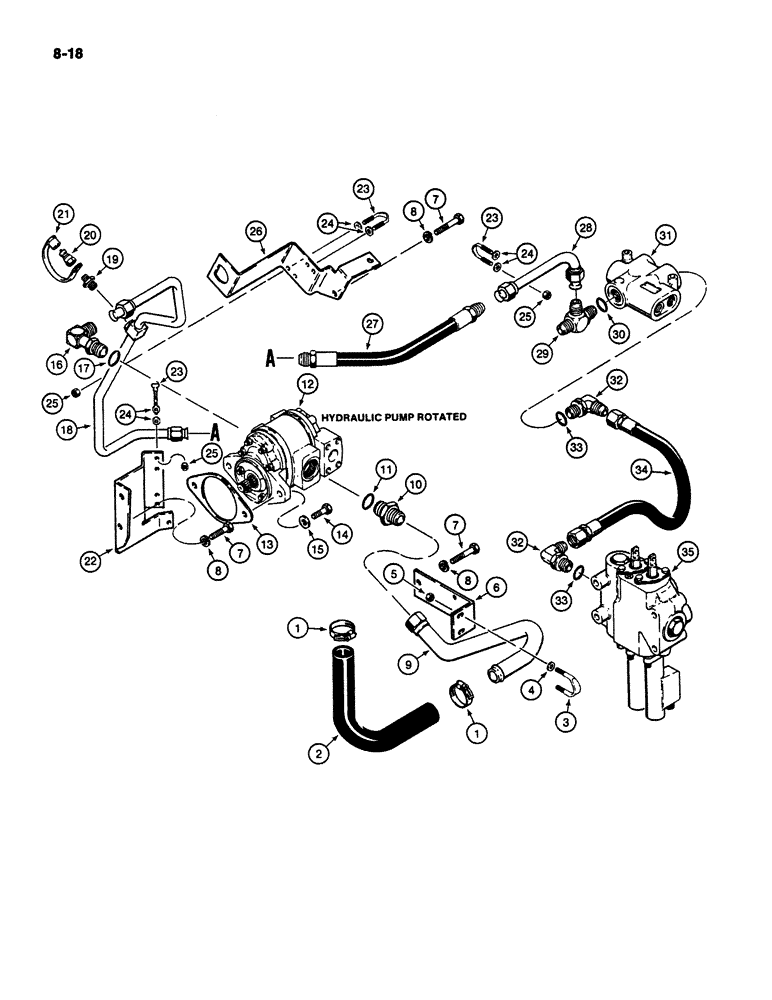

Запчасти Case W11B (8-018) - HYDRAULIC CIRCUIT, PUMP TO LOADER VALVE FOR MODELS WITH CLARK TRANSMISSION (08) - HYDRAULICS

1

214-375

CLAMP,1.72"-1.91", T-Bolt

- hose

2шт.

2

L74990

HOSE,1.25" ID x 21.40"

1шт.

3

L104253

U-BOLT

- 5/16" - 18 NC x 1-1/4"

1шт.

4

195-521

WASHER,5/16", SAE

- flat, 11/32 x 11/16 x 3/64 inch

2шт.

5

231-1445

NUT,5/16"-18, GB

NUT - hex, self-locking, 5/16" - 18 NC, plated

2шт.

6

L118183

BRACKET

- suction tube

1шт.

7

113-323

BOLT,Hex, 7/16" - 14 x 1-3/4", Gr 5

4шт.

8

192-22

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

9

L118213

TUBE ASSY.,31.75 mm OD

TUBE - suction

1шт.

Ref. 9A was replaced by L128343

1шт.

10

218-5072

HYD CONNECTOR,1-5/8" - 12 Male JIC x 1-5/8" - 12 Male ORB

ADAPTER - straight, Includes: Ref. 11

1шт.

11

237-6020

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

20-1, 90 Duro, 1.475" ID x .118" Thk, Adapter

1шт.

12

L117990

PUMP

- hydraulic, parts list Figure 8-32

1шт.

Ref. 12A was replaced by L127126, same gasket used

1шт.

13

L103397

GASKET

- pump

1шт.

14

13-822

BOLT,Hex, 1/2" - 13 x 1-3/8", Gr 5, Full Thd

2шт.

15

R24718

WASHER

- flat, 1/2", hardened

2шт.

16

L118252

ELBOW

- 90 degree, special, models without automatic auxiliary steering, Includes: Ref. 17

1шт.

For special 90 degree elbow and loader supply tube used on models with automatic auxiliary steering, see Figure 5-12.

1шт.

17

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- 59/64 ID x 7/8 inch wide

1шт.

18

L118209

TUBE ASSY.,20.85, 7.87" L

TUBE - loader supply, models without automatic auxiliary steering

1шт.

For special 90 degree elbow and loader supply tube used on models with automatic auxiliary steering, see Figure 5-12.

1шт.

Ref. 18 was replaced by L128341

1шт.

19

217-1092

HYD CONNECTOR,3/4"-14 NPTF x 1/4"-18 NPTF

ADAPTER - straight

1шт.

20

S206607

DISC

COUPLING - male, quick disconnect

1шт.

21

D123387

DUST CAP

CAP - dust

1шт.

22

L118172

BRACKET

- hydraulic lines

1шт.

23

L78948

U-BOLT

- 5/16" - 18 NC x 3/4"

3шт.

24

195-103

WASHER,5/16"

NUT - hex, 1/2 inch NC

2шт.

25

231-1445

NUT,5/16"-18, GB

NUT - hex, self-locking, 5/16" - 18 NC, plated

6шт.

26

L118173

BRACKET

- hydraulic lines

1шт.

27

L77031

HYDRAULIC HOSE,0.63" ID x 20.00"

Upper 0.63" ID x 20.00"

1шт.

28

L78984

TUBE

- upper

1шт.

29

L77910

TEE

- adjustable, Includes: Ref. 30

1шт.

30

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- 59/64 ID x 7/8 inch wide

1шт.

31

L105296

VALVE

FLOW CONTROL VALVE - parts list Figure 8-34

1шт.

32

L114091

FITTING

ELBOW - 90 degree, special, Includes: Ref. 33

2шт.

33

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- 59/64 ID x 7/8 inch wide

1шт.

34

L78021

HOSE

- 23" (584 mm) long

1шт.

35

REF

INSTRUCTION

CONTROL VALVE - loader, see Figures 8-42 and 8-44 for correct valve

1шт.
