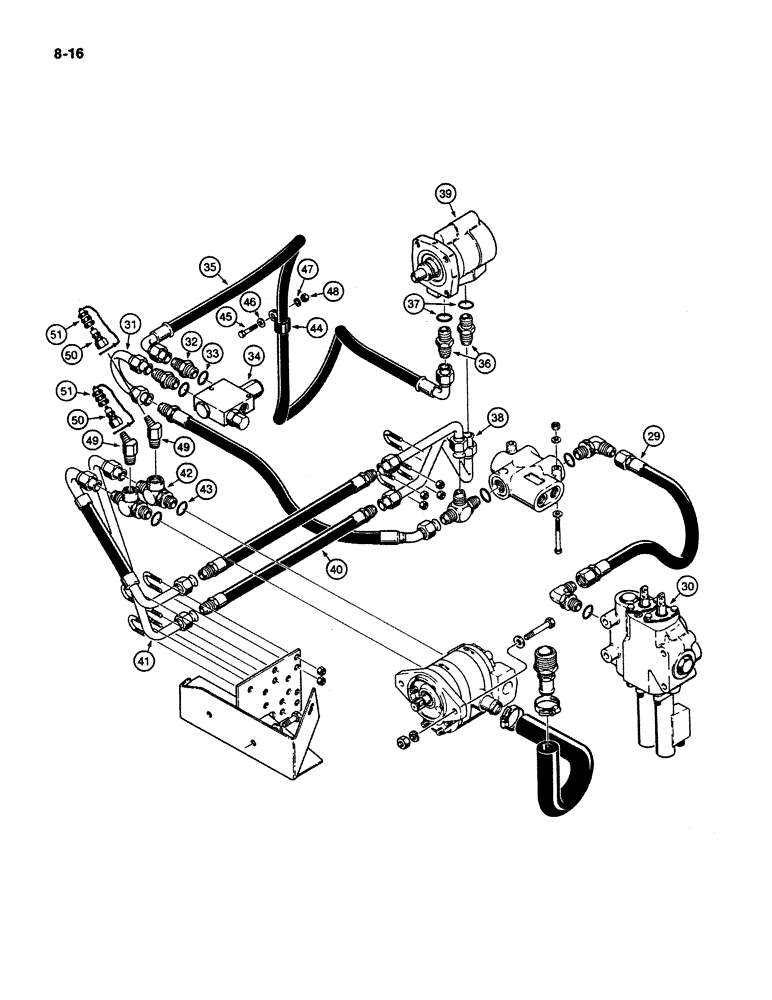

Запчасти Case W11B (8-016) - HYDRAULIC CIRCUIT, PUMP TO LOADER VALVE AND BRAKE ACTUATOR (08) - HYDRAULICS

29

L78021

HOSE

- 23" (584 mm) long

1шт.

30

REF

INSTRUCTION

CONTROL VALVE - loader, see Figures 8-42 and 8-44 for correct valve

1шт.

31

L101149

TUBE ASSY.,0.625" OD x 3.46, 3" L

TUBE - U-shape

1шт.

32

218-5066

HYD CONNECTOR,7/8" - 14 Male JIC x 3/4" - 16 Male ORB

CONNECTOR, HYD., straight, 5/8 x 1/2 straight inch thread, Incl. Ref. 33

2шт.

33

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

34

L103844

VALVE

UNLOADING VALVE - parts list Figure 8-34

1шт.

35

L101244

HOSE

- brake actuator to unloading valve, 22-1/2" (572 mm) long

1шт.

36

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

ADAPTER - straight, 7/8-14 inch flare x O-ring boss, Includes: Ref. 37

2шт.

37

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

38

L78937

TUBE,0.625" OD

- lower, supply booster

1шт.

39

REF

INSTRUCTION

BRAKE ACTUATOR - see Figures 7-12 - 7-16 for correct actuator

1шт.

40

L74997

HOSE ASSY.,0.50" ID x 20.00"

Lower 0.50" ID x 20.00"

1шт.

41

L79175

TUBE,0.625" OD

- supply booster, not used on models with auxiliary steering, see Figure 5-10, Ref. 37

1шт.

42

L74987

TEE

- adjustable, Includes: Ref. 43

1шт.

43

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

44

R12102

CLAMP

- hose

1шт.

45

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

1шт.

46

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) 3/8"

1шт.

47

492-11038

LOCK WASHER,3/8"

1шт.

48

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

49

L100960

FITTING

ELBOW - 45 degree

2шт.

50

S206607

DISC

COUPLING - male, quick disconnect

2шт.

51

D123387

DUST CAP

CAP - dust

2шт.

REF: 51A PLASTIC DUST CAP REPLACES THE S206608 CAP

1шт.
