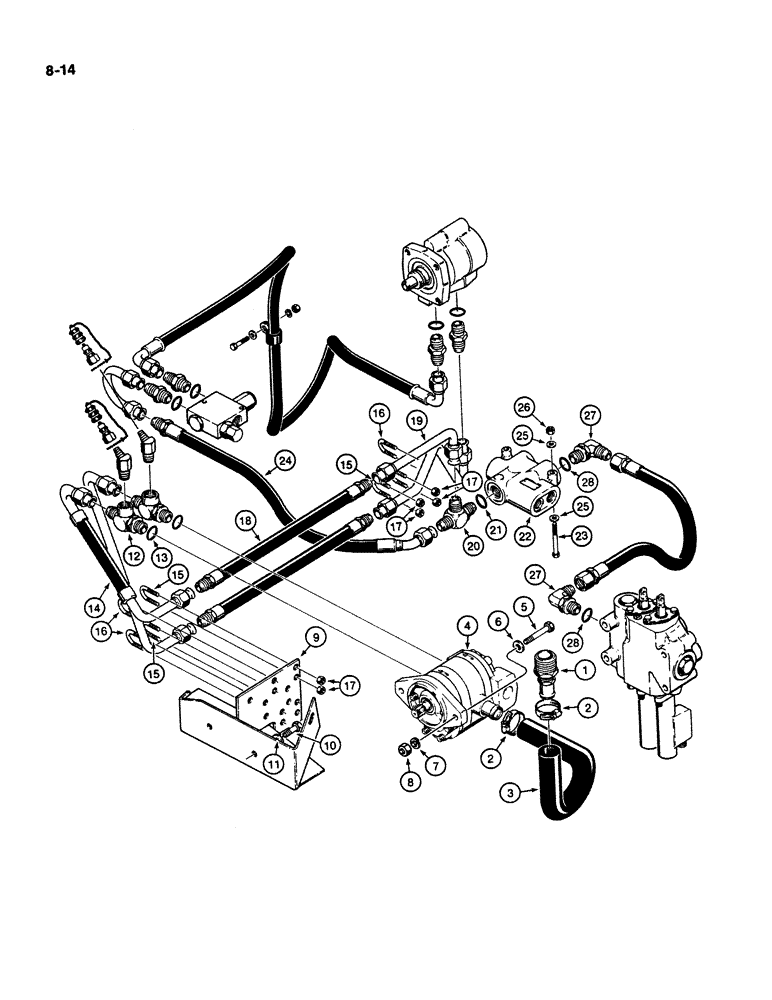

Запчасти Case W11B (8-014) - HYDRAULIC CIRCUIT, PUMP TO LOADER VALVE AND BRAKE ACTUATOR (08) - HYDRAULICS

1

217-157

FITTING,1-1/4" Hose Barb x 1-1/4" Male NPTF

STEM FITTING - straight

1шт.

2

214-375

CLAMP,1.72"-1.91", T-Bolt

- hose

2шт.

3

L74990

HOSE,1.25" ID x 21.40"

1шт.

4

L77150

PUMP, HYDRAULIC

PUMP - hydraulic, parts list Figure 8-30

1шт.

5

113-441

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

Hex, 1/2"-13 x 2 1/4", G5

2шт.

6

495-21056

WASHER,1/2"

- flat, 9/16 x 1-3/8 x 3/32 inch

2шт.

7

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

8

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

9

L112223

BRACKET

- tube mounting

1шт.

10

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

2шт.

11

495-21056

WASHER,1/2"

- flat, 9/16 x 1-3/8 x 3/32 inch

2шт.

12

L74986

TEE

- adjustable, Includes: Ref. 13

1шт.

13

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- 59/64 ID x 7/8 inch wide

1шт.

14

L79660

TUBE ASSY.

HOSE ASSEMBLY - special, not used on models with auxiliary steering, see Figure 5-10, Ref. 38

1шт.

15

L78949

U-BOLT

- 5/16" - 18 NC x 5/8"

4шт.

16

L78948

U-BOLT

- 5/16" - 18 NC x 3/4"

3шт.

17

131-651

NUT,5/16"-18, GB

NUT - hex, self-locking, 5/16" - 18 NC

14шт.

18

L77031

HYDRAULIC HOSE,0.63" ID x 20.00"

Upper 0.63" ID x 20.00"

1шт.

19

L78984

TUBE

- upper

1шт.

20

L77910

TEE

- adjustable, Includes: Ref. 21

1шт.

21

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- 59/64 ID x 7/8 inch wide

1шт.

22

REF

INSTRUCTION

FLOW CONTROL VALVE - parts list Figure 8-34

1шт.

23

113-46

BOLT,Hex, 1/4" - 20 x 2-3/4", Gr 5

- hex, 1/4 NC x 2-3/4 inch

2шт.

24

L101107

HOSE

ASSEMBLY - unloading valve bypass, 16-1/2" (419 mm) long

1шт.

25

195-102

WASHER,1/4"

- flat, 5/16 x 3/4 x 1/16 inch

4шт.

26

131-664

LOCK NUT,1/4"-20, GB

NUT - hex, self-locking, 1/4" - 20 NC, plated

2шт.

27

L114091

FITTING

ELBOW - 90 degree, special, Includes: Ref. 28

2шт.

28

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- 59/64 ID x 7/8 inch wide

1шт.
