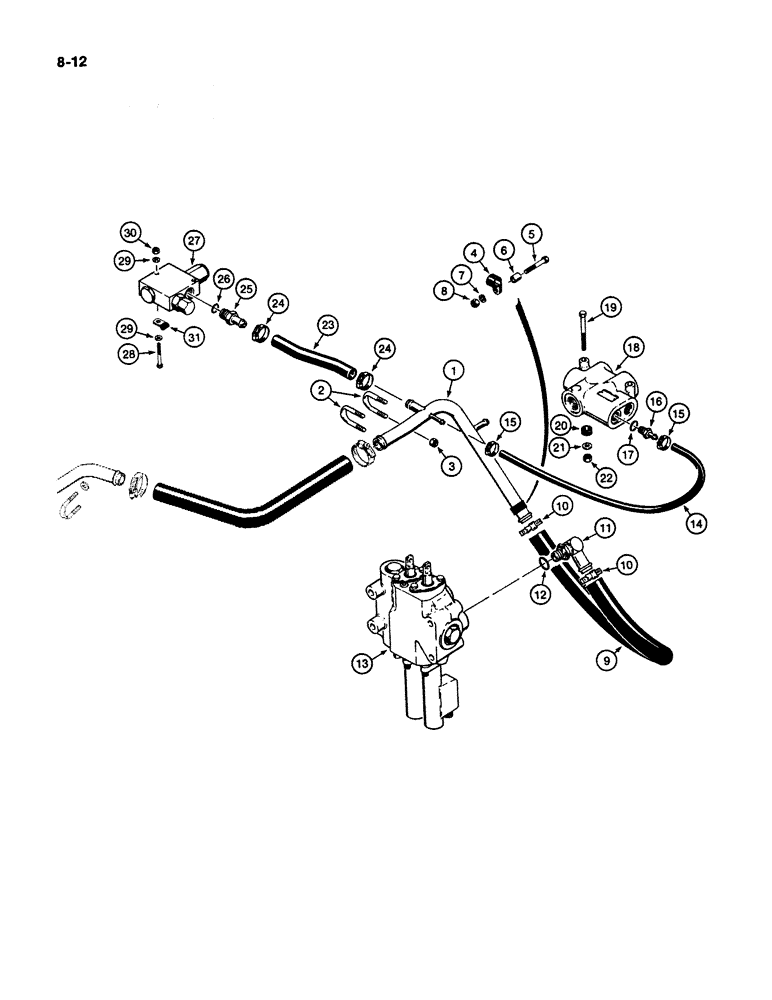

Запчасти Case W11B (8-012) - HYDRAULIC CIRCUIT, RETURN LINES FOR MODELS WITH CLARK TRANSMISSION (08) - HYDRAULICS

1

L79041

TUBE

- from loader control valve

1шт.

2

L78947

U-BOLT

- 5/16" - 18 NC x 1"

2шт.

3

131-651

NUT,5/16"-18, GB

NUT, 5/16"-18, GB

4шт.

4

R14668

CLAMP

- harness retaining

1шт.

5

113-219

BOLT,Hex, 3/8" - 16 x 2", Gr 5

1шт.

6

33126

BUSHING

SPACER - clamp

1шт.

7

492-11038

LOCK WASHER,3/8"

1шт.

8

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

9

L70286

HOSE,1.00" ID x 18.00"

Return, Filter 1.00" ID x 18.00"

1шт.

10

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose, 13/16 to 1-3/4 inch

2шт.

11

217-352

FITTING,90 Degree Elbow, 1" Hose Barb x 1-5/16" - 12 Male ORB

STEM FITTING - 90 degree, adjustable, Includes: Ref. 12

1шт.

12

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- 1-11/16 x 1-13/32 x 1/8 inch

1шт.

13

REF

INSTRUCTION

CONTROL VALVE - loader, see Figures 8-42 and 8-44 for correct valve

1шт.

14

L74992

HOSE,0.25" ID x 18.00", SAE 100R3

1шт.

15

214-274

HOSE CLAMP,#04, 0.25" - 0.62", Type F Worm

retaining #4, 0.25/0.62 Type F Worm

2шт.

16

217-193

FITTING,1/4" Hose Barb x 7/16" - 20 Male ORB

STEM FITTING - straight, Includes: Ref. 17

1шт.

17

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk

1шт.

18

L105296

VALVE

FLOW CONTROL VALVE - parts list Figure 8-34

1шт.

19

113-138

BOLT,Hex, 5/16" - 18 x 3-1/2", Gr 5

2шт.

20

S120258

GROMMET,5/16" ID x 5/8" Groove Dia

CUSHION - rubber

2шт.

21

195-103

WASHER,5/16"

NUT - hex, 1/2 inch NC

2шт.

22

131-665

LOCK NUT,5/16"-18, GB

NUT, 5/16"-18, GB

2шт.

23

L79701

HOSE

- unloading valve return, 5/8 inch (16 mm) ID x 8 inch (203 mm) long

1шт.

24

214-254

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

CLAMP - hose, No. 12, Type F

2шт.

25

217-395

FITTING,5/8" Hose Barb x 3/4" - 16 Male ORB

STEM FITTING - straight, Includes: Ref. 26

1шт.

26

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

27

L103844

VALVE

UNLOADING VALVE - parts list Figure 8-34

1шт.

28

113-46

BOLT,Hex, 1/4" - 20 x 2-3/4", Gr 5

2шт.

29

195-102

WASHER,1/4"

- flat, 5/16 x 3/4 x 1/16 inch

4шт.

30

131-2

NUT,1/4"-20, GB

NUT, 1/4"-20, GB

2шт.

31

515-2363

CLAMP,M6.3, Insul, 3/8" Bolt

- retaining

1шт.
